Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

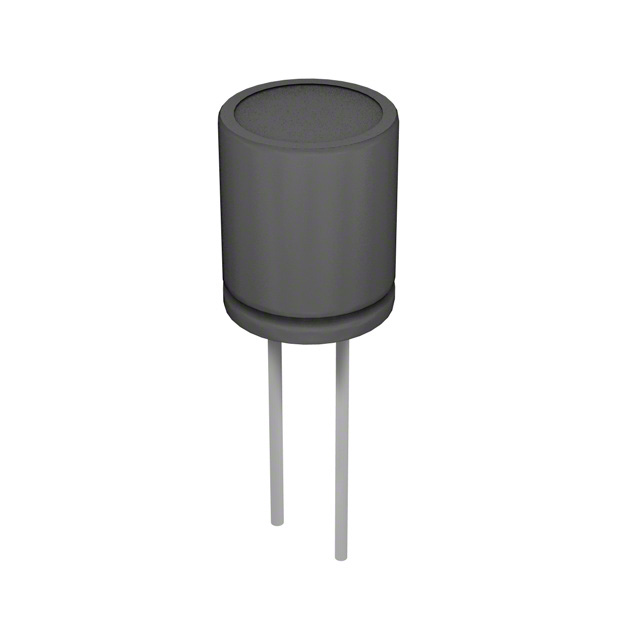

SXR331M016STCAP ALUM 330UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 16 V | 640mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
SXR331M025STCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 25 V | 560mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
SXR331M035STCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 35 V | 480mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SXR331M063STCAP ALUM 330UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 63 V | 320mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 607.2 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SXR331M100STCAP ALUM 330UF 20% 100V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 100 V | 280mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 823.4 mA @ 120 Hz | 1.79 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|

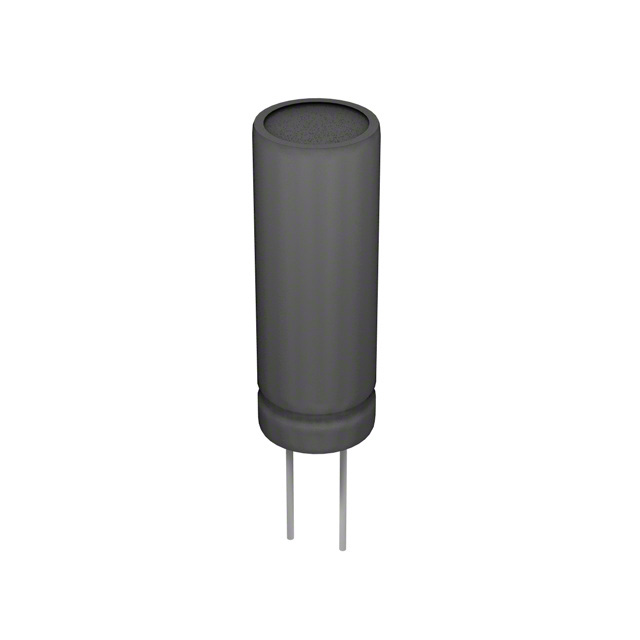

SXR332M010STCAP ALUM 3300UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 3300 µF | ±20% | 10 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.77 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|
SXR332M016STCAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 3300 µF | ±20% | 16 V | 80mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.98 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR332M025STCAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 70mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
SXR332M035STCAP ALUM 3300UF 20% 35V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 3300 µF | ±20% | 35 V | 470mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 2.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR332M6R3STCAP ALUM 3300UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 3300 µF | ±20% | 6.3 V | 100mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 768 mA @ 120 Hz | 1.28 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
SXR470M063STCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 47 µF | ±20% | 63 V | 2.26Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140.3 mA @ 120 Hz | 305 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
SXR470M100STCAP ALUM 47UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 47 µF | ±20% | 100 V | 1.98Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 276 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SXR471M010STCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 10 V | 540mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
SXR471M016STCAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 16 V | 450mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
SXR471M025STCAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 25 V | 400mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SXR471M035STCAP ALUM 470UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 35 V | 340mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 575 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SXR471M050STCAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 50 V | 280mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 607.2 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SXR471M063STCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 63 V | 230mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 667 mA @ 120 Hz | 1.45 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
SXR471M6R3STCAP ALUM 470UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 470 µF | ±20% | 6.3 V | 620mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 306 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
SXR472M010STCAP ALUM 4700UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 4700 µF | ±20% | 10 V | 80mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.81 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole |
