Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SXR152M016STCAP ALUM 1500UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1500 µF | ±20% | 16 V | 150mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 792 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SXR152M025STCAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1500 µF | ±20% | 25 V | 130mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.54 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SXR152M035STCAP ALUM 1500UF 20% 35V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1500 µF | ±20% | 35 V | 120mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.98 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

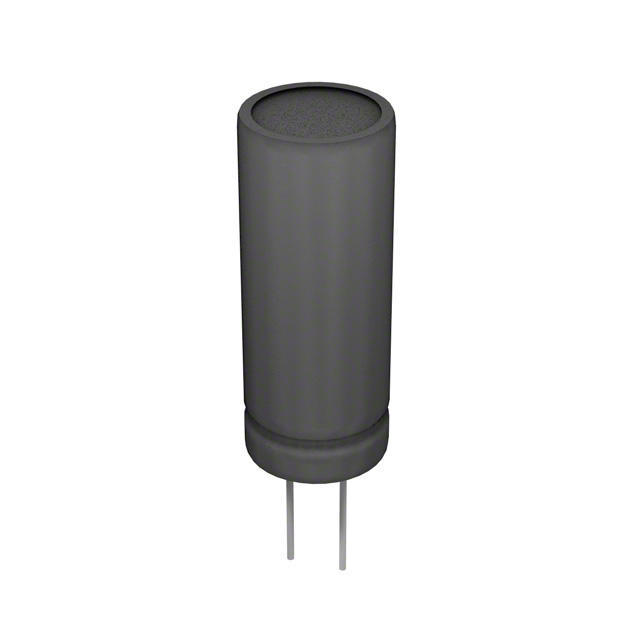

SXR152M050STCAP ALUM 1500UF 20% 50V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1500 µF | ±20% | 50 V | 100mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 2.32 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR152M6R3STCAP ALUM 1500UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1500 µF | ±20% | 6.3 V | 200mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 618 mA @ 120 Hz | 1.03 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SXR153M6R3STCAP ALUM 15000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 15000 µF | ±20% | 6.3 V | 40mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.476 A @ 120 Hz | 2.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR220M100STCAP ALUM 22UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 22 µF | ±20% | 100 V | 4.22Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140.3 mA @ 120 Hz | 305 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|

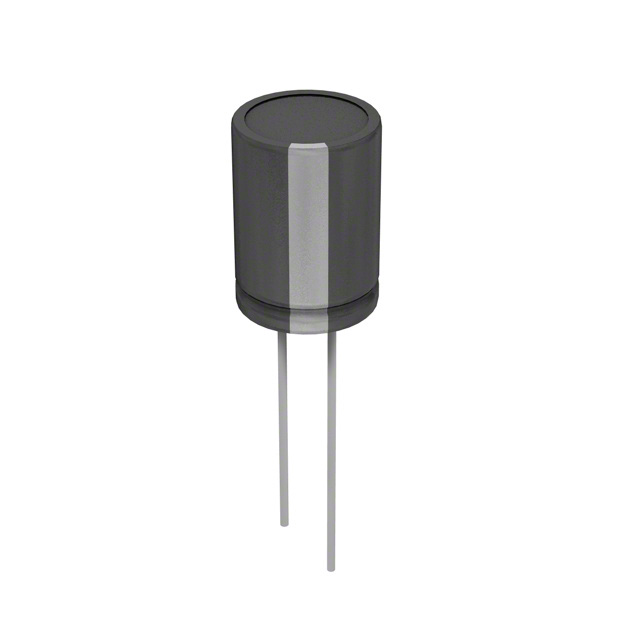

SXR221M010STCAP ALUM 220UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 10 V | 1.15Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SXR221M016STCAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 16 V | 970mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SXR221M025STCAP ALUM 220UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 25 V | 840mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
SXR221M035STCAP ALUM 220UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 35 V | 720mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
SXR221M050STCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 50 V | 600mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 473.8 mA @ 120 Hz | 1.03 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SXR221M063STCAP ALUM 220UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 63 V | 480mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 409.4 mA @ 120 Hz | 890 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SXR221M100STCAP ALUM 220UF 20% 100V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 100 V | 420mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 662.4 mA @ 120 Hz | 1.44 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SXR221M6R3STCAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | 1.33Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 156 mA @ 120 Hz | 260 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SXR222M010STCAP ALUM 2200UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 2200 µF | ±20% | 10 V | 130mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 792 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
SXR222M016STCAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 110mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 924 mA @ 120 Hz | 1.54 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
SXR222M025STCAP ALUM 2200UF 20% 25V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 2200 µF | ±20% | 25 V | 100mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.98 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR222M035STCAP ALUM 2200UF 20% 35V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 2200 µF | ±20% | 35 V | 80mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|

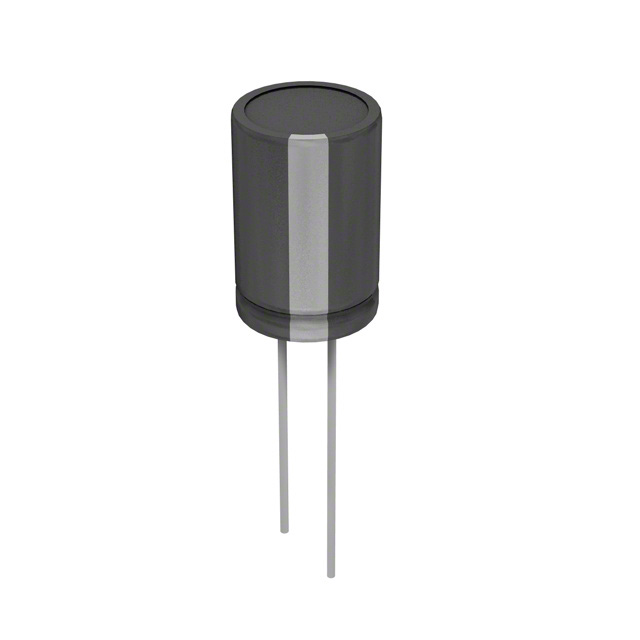

SXR331M010STCAP ALUM 330UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 330 µF | ±20% | 10 V | 760mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
