Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH470M010STCAP ALUM 47UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 10 V | 6.21Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 90 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH470M016STCAP ALUM 47UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 16 V | 5.08Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH470M025STCAP ALUM 47UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 25 V | 4.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 108 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|

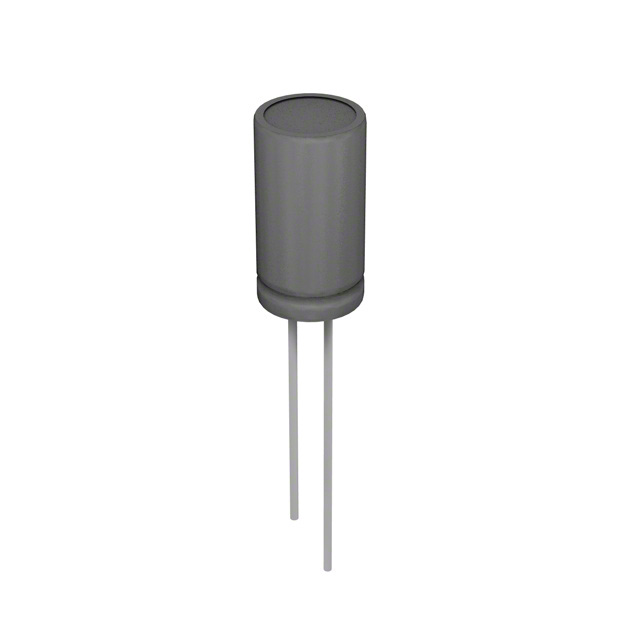

SH470M035STCAP ALUM 47UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 35 V | 3.95Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 161 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SH470M050STCAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 50 V | 3.39Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 175 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
|
SH470M063STCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 63 V | 2.82Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 217 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|

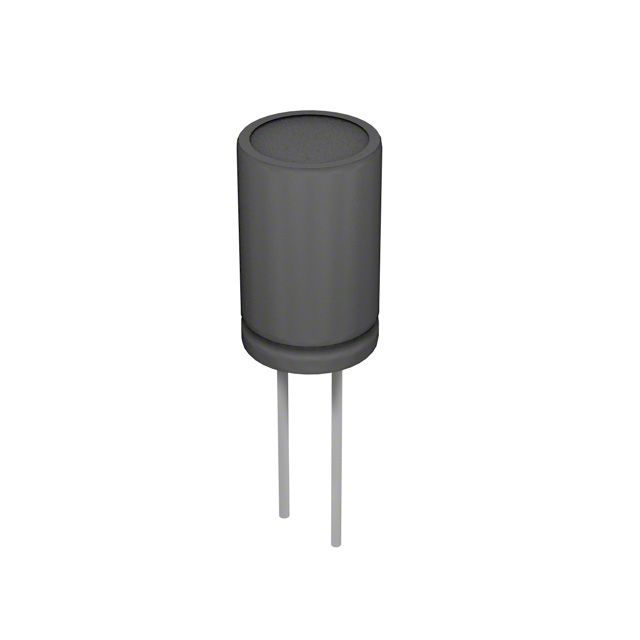

SH470M100STCAP ALUM 47UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 100 V | 2.82Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 294 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
SH470M160STCAP ALUM 47UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 160 V | 4.23Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 432 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SH470M200STCAP ALUM 47UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 200 V | 4.23Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 35.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SH470M250STCAP ALUM 47UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 250 V | 4.23Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 368 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SH470M6R3STCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | 7.34Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 78 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH471M010STCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 10 V | 620mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 305 mA @ 120 Hz | 366 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
SH471M016STCAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 16 V | 510mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 395 mA @ 120 Hz | 474 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
SH471M025STCAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 25 V | 450mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 564 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|

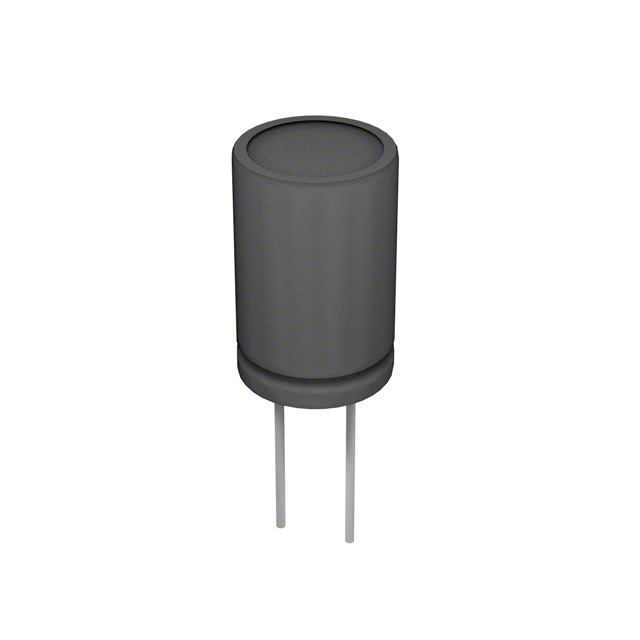

SH471M035STCAP ALUM 470UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 35 V | 400mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 812 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SH471M050STCAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 50 V | 340mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.022 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SH471M063STCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 63 V | 280mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.295" (7.50mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SH471M100STCAP ALUM 470UF 20% 100V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 100 V | 280mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 875 mA @ 120 Hz | 1.225 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SH471M6R3STCAP ALUM 470UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 470 µF | ±20% | 6.3 V | 730mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 336 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
|
SH472M010STCAP ALUM 4700UF 20% 10V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 4700 µF | ±20% | 10 V | 80mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.692 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
