Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMQ201VSN152MA30WCAP ALUM 1500UF 20% 200V SNAP TH |
396 |
|
Datasheet |
KMQ | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.2 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX331M450K052CAP ALUM 330UF 20% 450V SNAP TH |
1,096 |
|
Datasheet |
381LX | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXH220MEFCSN25X35CAP ALUM 220UF 20% 450V SNAP TH |
200 |
|
Datasheet |
MXH | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMH250VSN682MP30UCAP ALUM 6800UF 20% 25V SNAP TH |
200 |
|
Datasheet |
KMH | Bulk | Active | 6800 µF | ±20% | 25 V | 73mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.0088 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEV227HKL4320ME4CAP ALUM 3200UF 20% 25V SMD |
200 |
|
Datasheet |
PEV227 | Tray | Active | 3200 µF | ±20% | 25 V | 49mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.02 A @ 100 Hz | 17.888 A @ 100 kHz | - | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 1.181" (30.00mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | Surface Mount | |
|
MAL212028331E3CAP ALUM 330UF 20% 63V AXIAL TH |
205 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 330 µF | ±20% | 63 V | 105mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.51 A @ 10 kHz | 91 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
861221484011CAP ALUM 220UF 20% 450V SNAP TH |
112 |
|
Datasheet |
WCAP-AIE8 | Tray | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.1942 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.693" (43.00mm) | - | Through Hole | |
|
LAR2E821MELA45CAP ALUM 820UF 20% 250V SNAP TH |
246 |
|
Datasheet |
LAR | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

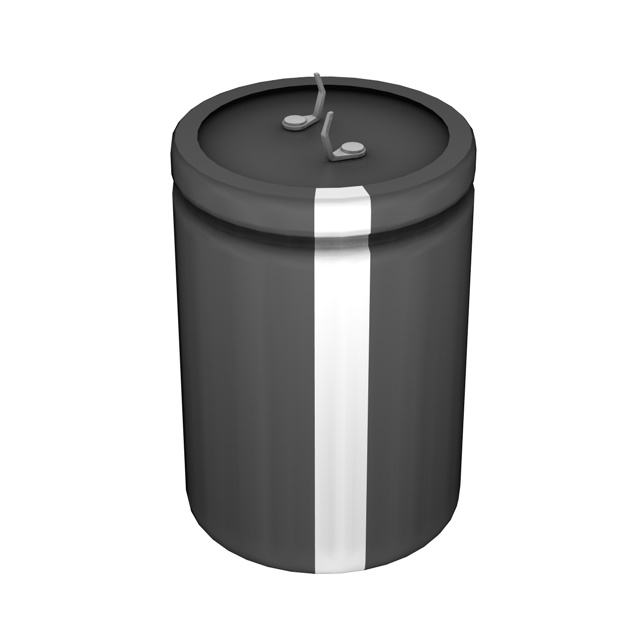

LP102M200H9P3CAP ALUM 1000UF 20% 200V SNAP TH |
898 |
|
Datasheet |
LP | Bulk | Active | 1000 µF | ±20% | 200 V | 250mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.114 A @ 120 Hz | 2.9596 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
B43504A9277M000CAP ALUM 270UF 20% 400V SNAP TH |
1,442 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 270 µF | ±20% | 400 V | 320mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
SLPX122M200H5P3CAP ALUM 1200UF 20% 200V SNAP TH |
2,949 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.57 A @ 120 Hz | 5.25 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
B43544A7187M000CAP ALUM 180UF 20% 550V SNAP TH |
244 |
|
Datasheet |
B43544 | Tray | Active | 180 µF | ±20% | 550 V | 640mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | - | 1.01 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70A471DC350CAP ALUM 470UF 20% 350V SNAP TH |
496 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 301.5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 5.26 A @ 10 kHz | 158 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL202116682E3CAP ALUM 6800UF 20% 25V AXIAL TH |
297 |
|
Datasheet |
021 ASM | Bulk | Active | 6800 µF | ±20% | 25 V | 64mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.691 A @ 10 kHz | 35 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
B43548B9397M080CAP ALUM 390UF 20% 400V SNAP TH |
300 |
|
Datasheet |
B43548 | Bulk | Active | 390 µF | ±20% | 400 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.661" (42.20mm) | - | Through Hole | |
|
B41793A9687Q001CAP ALUM 680UF 100V SNAP TH |
2,265 |
|
Datasheet |
B41793 | Tray | Active | 680 µF | -10%, +30% | 100 V | 120mOhm @ 100Hz | 2000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.6 A @ 10 kHz | - | 0.846" (21.50mm) | 0.827" Dia (21.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
380LX471M450A052CAP ALUM 470UF 20% 450V SNAP TH |
416 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 450 V | 423mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXK270MEFCSN30X30CAP ALUM 270UF 20% 450V SNAP TH |
212 |
|
Datasheet |
MXK | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS451VSN181MP45SCAP ALUM 180UF 20% 450V SNAP TH |
200 |
|
Datasheet |
LXS | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.5158 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LGN2D182MELC40CAP ALUM 1800UF 20% 200V SNAP TH |
197 |
|
Datasheet |
LGN | Bulk | Active | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 4.62 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
