Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

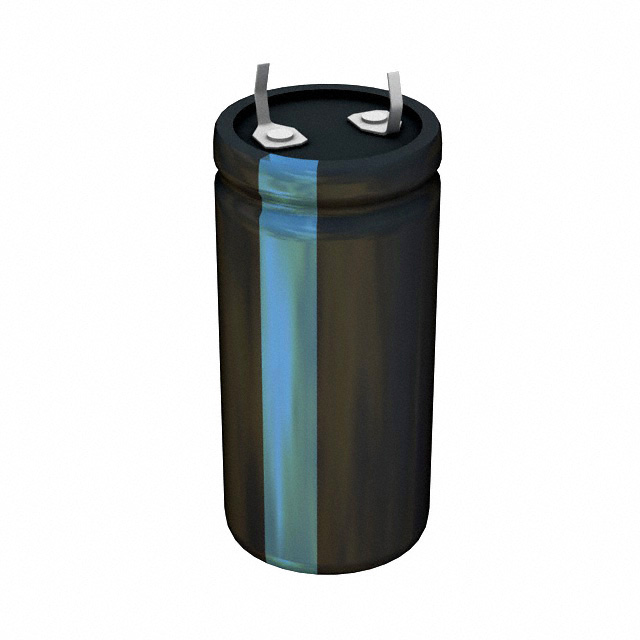

380LX222M080H452CAP ALUM 2200UF 20% 80V SNAP TH |
2,964 |
|
Datasheet |
380LX | Bulk | Active | 2200 µF | ±20% | 80 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGZ2W151MELB40CAP ALUM 150UF 20% 450V SNAP TH |
268 |
|
Datasheet |
LGZ | Bulk | Active | 150 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EGPA800ELL821MM35SCAP ALUM 820UF 20% 80V RADIAL TH |
250 |
|
Datasheet |
GPA | Bulk | Active | 820 µF | ±20% | 80 V | 35mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.734 A @ 120 Hz | 2.89 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
381LX181M450K032CAP ALUM 180UF 20% 450V SNAP TH |
1,181 |
|
Datasheet |
381LX | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41252A8478M000CAP ALUM 4700UF 20% 63V SNAP TH |
678 |
|
Datasheet |
B41252 | Bulk | Active | 4700 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
UPZW6121MHDCAP ALUM 120UF 20% 420V RADIAL |
256 |
|
Datasheet |
UPZ | Bulk | Active | 120 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 660 mA @ 120 Hz | 990 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
475MXH100MEFCSN22X35CAP ALUM 100UF 20% 475V SNAP TH |
183 |
|
Datasheet |
MXH | Bulk | Active | 100 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215756101E3CAP ALUM 100UF 20% 400V SNAP TH |
420 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 100 µF | ±20% | 400 V | 1.125Ohm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 1.306 A @ 10 kHz | 1.22 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
500USK120MEFCSN22X30CAP ALUM 120UF 20% 500V SNAP TH |
138 |
|
Datasheet |
USK | Bulk | Active | 120 µF | ±20% | 500 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.792 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL224650222E3CAP ALUM 2200UF 20% 35V RADIAL |
405 |
|
Datasheet |
246 RTI-V | Box | Active | 2200 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.82 A @ 100 Hz | 2.8 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL213655472E3CAP ALUM 4700UF 20% 16V RADIAL |
258 |
|
Datasheet |
136 RVI | Bulk | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.794 A @ 100 Hz | - | 22 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LAR2W181MELA35CAP ALUM 180UF 20% 450V SNAP TH |
110 |
|
Datasheet |
LAR | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.244 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGU1C273MELACAP ALUM 27000UF 20% 16V SNAP TH |
238 |
|
Datasheet |
LGU | Bulk | Active | 27000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | 4.4275 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
250USG220MEFCSN20X25CAP ALUM 220UF 20% 250V SNAP TH |
127 |
|
Datasheet |
USG | Bulk | Active | 220 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.845 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420LXW120MEFR16X35CAP ALUM 120UF 20% 420V RADIAL |
101 |
|
Datasheet |
LXW | Bulk | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.64 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
35MXG5600MEFCSN22X35CAP ALUM 5600UF 20% 35V SNAP TH |
152 |
|
Datasheet |
MXG | Bulk | Active | 5600 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.4495 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL214690275E3CAP ALUM 2700UF 20% 35V RADIAL |
486 |
|
Datasheet |
146 RTI | Bulk | Active | 2700 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.1 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UVK2W680MHDCAP ALUM 68UF 20% 450V RADIAL TH |
103 |
|
Datasheet |
UVK | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 416 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

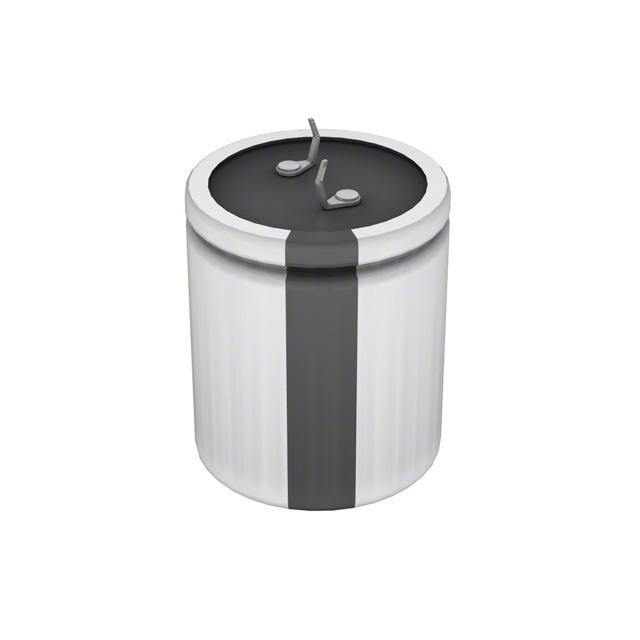

LPX821M200E5P3CAP ALUM 820UF 20% 200V SNAP TH |
125 |
|
Datasheet |
LPX | Bulk | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 2.97 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
860021381021CAP ALUM 120UF 20% 400V RADIAL |
313 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 759 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
