Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LX821M100J012CAP ALUM 820UF 20% 100V SNAP TH |
2,976 |
|
Datasheet |
381LX | Bulk | Active | 820 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL214699708E3CAP ALUM 220UF 20% 80V SMD |
668 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 220 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 540 mA @ 100 Hz | 900 mA @ 100 kHz | 180 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
500LXW56MEFR14.5X45CAP ALUM 56UF 20% 500V RADIAL TH |
496 |
|
Datasheet |
LXW | Bulk | Active | 56 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 620 mA @ 120 Hz | 1.364 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGU2A122MELBCAP ALUM 1200UF 20% 100V SNAP TH |
184 |
|
Datasheet |
LGU | Bulk | Active | 1200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 1.9665 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

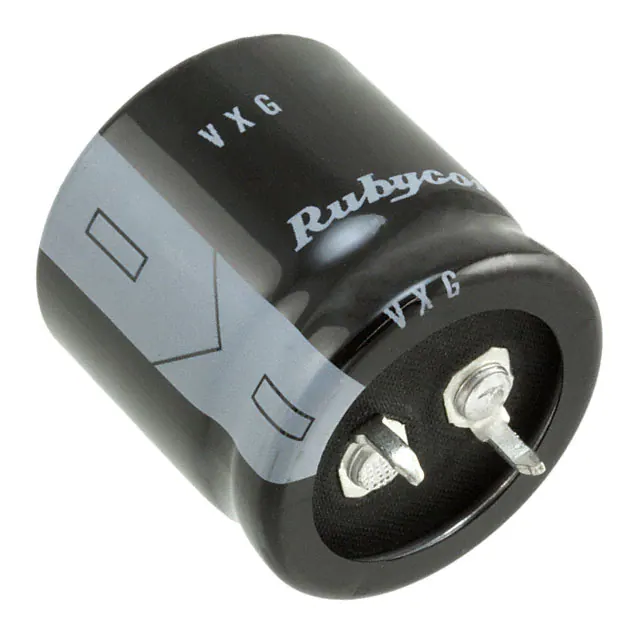

500VXG68MEFCSN25X25CAP ALUM 68UF 20% 500V SNAP TH |
201 |
|
Datasheet |
VXG | Bulk | Active | 68 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.008 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGN2Z102MELB30CAP ALUM 1000UF 20% 180V SNAP TH |
188 |
|
Datasheet |
LGN | Bulk | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ESMQ251VSN681MP45SCAP ALUM 680UF 20% 250V SNAP TH |
218 |
|
Datasheet |
SMQ | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LGN2Z681MELZ35CAP ALUM 680UF 20% 180V SNAP TH |
183 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SEK221M200STCAP ALUM 220UF 20% 200V RADIAL |
2,100 |
|
Datasheet |
SEK | Bulk | Active | 220 µF | ±20% | 200 V | 900mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LP103M025H3P3CAP ALUM 10000UF 20% 25V SNAP TH |
993 |
|
Datasheet |
LP | Bulk | Active | 10000 µF | ±20% | 25 V | 50mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.333 A @ 120 Hz | 3.6663 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
B43642E2277M000CAP ALUM 270UF 20% 250V SNAP TH |
293 |
|
Datasheet |
B43642 | Bulk | Active | 270 µF | ±20% | 250 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 100 Hz | - | 430 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL213631102E3CAP ALUM 1000UF 20% 50V RADIAL |
492 |
|
Datasheet |
136 RVI | Cut Tape (CT) | Active | 1000 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 100 Hz | - | 30 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
450HXW120MEFR18X30CAP ALUM 120UF 20% 450V RADIAL |
369 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420LXW100MEFR16X30CAP ALUM 100UF 20% 420V RADIAL |
297 |
|
Datasheet |
LXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.44 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX561M200H042CAP ALUM 560UF 20% 200V SNAP TH |
8 |
|
Datasheet |
381LX | Bulk | Active | 560 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2V271MELA35CAP ALUM 270UF 20% 350V SNAP TH |
589 |
|
Datasheet |
LGN | Bulk | Active | 270 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGL2W151MELZ30CAP ALUM 150UF 20% 450V SNAP TH |
270 |
|
Datasheet |
LGL | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.0582 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU1E123MELBCAP ALUM 12000UF 20% 25V SNAP TH |
106 |
|
Datasheet |
LGU | Bulk | Active | 12000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 3.151 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LQS2V221MELZ35CAP ALUM 220UF 20% 350V SNAP TH |
304 |
|
Datasheet |
LQS | Bulk | Active | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKZN6R3ELL223MM40SCAP ALUM 22000UF 20% 6.3V RADIAL |
250 |
|
Datasheet |
KZN | Bulk | Active | 22000 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.216 A @ 120 Hz | 4.96 A @ 100 kHz | 11 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole |
