Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

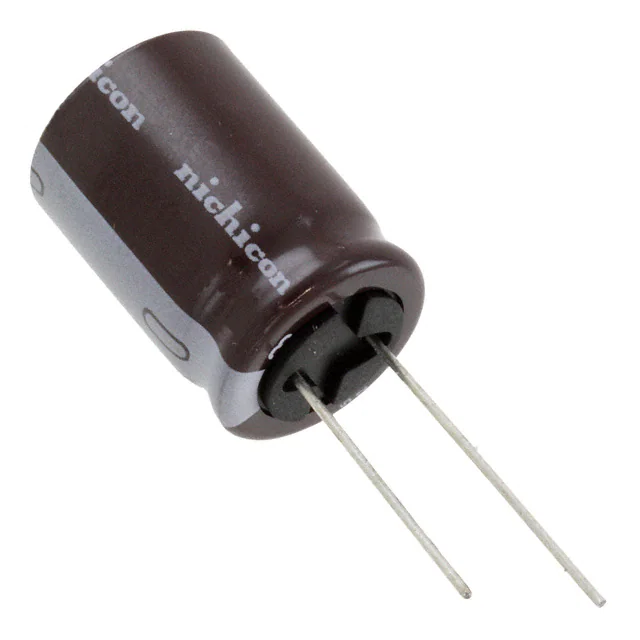

UCS2V820MHDCAP ALUM 82UF 20% 350V RADIAL TH |
317 |
|
Datasheet |
UCS | Bulk | Active | 82 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 765 mA @ 120 Hz | 1.53 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UKL1H102MHDCAP ALUM 1000UF 20% 50V RADIAL |
266 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.311 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EEE-FK0J682AMCAP ALUM 6800UF 20% 6.3V SMD |
250 |
|
Datasheet |
FK | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
UPJ1A682MHDCAP ALUM 6800UF 20% 10V RADIAL |
138 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.68 A @ 10 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41231B6338M000CAP ALUM 3300UF 20% 50V SNAP TH |
516 |
|
Datasheet |
B41231 | Bulk | Active | 3300 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.06 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.063" (27.00mm) | - | Through Hole | |
|
6.3YXS15000MEFC18X31.5CAP ALUM 15000UF 20% 6.3V RADIAL |
416 |
|
Datasheet |
YXS | Bulk | Active | 15000 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.919 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UBT1A332MHD8TNCAP ALUM 3300UF 20% 10V RADIAL |
250 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 3300 µF | ±20% | 10 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.541 A @ 120 Hz | 2.3 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-EE2G470SBCAP ALUM 47UF 20% 400V RADIAL TH |
242 |
|
Datasheet |
EE-A | Cut Tape (CT) | Active | 47 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 1.18 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
228CKE050MCAP ALUM 2200UF 20% 50V RADIAL |
3,887 |
|
Datasheet |
CKE | Bulk | Active | 2200 µF | ±20% | 50 V | 105.5mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Bypass, Decoupling | 1.885 A @ 120 Hz | 2.639 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
35ZLJ1800M16X25CAP ALUM 1800UF 20% 35V RADIAL |
335 |
|
Datasheet |
ZLJ | Bulk | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.286 A @ 120 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCZ1K331MNS1MSCAP ALUM 330UF 20% 80V SMD |
689 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 330 µF | ±20% | 80 V | 170mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
UCZ2A181MNQ1MSCAP ALUM 180UF 20% 100V SMD |
500 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Not For New Designs | 180 µF | ±20% | 100 V | 170mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
EEU-ED2V680SCAP ALUM 68UF 20% 350V RADIAL TH |
479 |
|
Datasheet |
ED | Bulk | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
UPM1C392MHD6TNCAP ALUM 3900UF 20% 16V RADIAL |
431 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.11 A @ 120 Hz | 2.35 A @ 10 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCS2V680MHD6CAP ALUM 68UF 20% 350V RADIAL TH |
180 |
|
Datasheet |
UCS | Bulk | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 687.5 mA @ 120 Hz | 1.375 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
100ZLH390MEFC18X20CAP ALUM 390UF 20% 100V RADIAL |
532 |
|
Datasheet |
ZLH | Bulk | Active | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.073 A @ 120 Hz | 1.95 A @ 100 kHz | 54 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCY2H180MHD3CAP ALUM 18UF 20% 500V RADIAL TH |
480 |
|
Datasheet |
UCY | Bulk | Active | 18 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 240 mA @ 120 Hz | 480 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
450BXC33MEFC16X25CAP ALUM 33UF 20% 450V RADIAL TH |
316 |
|
Datasheet |
BXC | Bulk | Active | 33 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 392 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UCY2W330MHD3TNCAP ALUM 33UF 20% 450V RADIAL TH |
132 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 33 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 770 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|

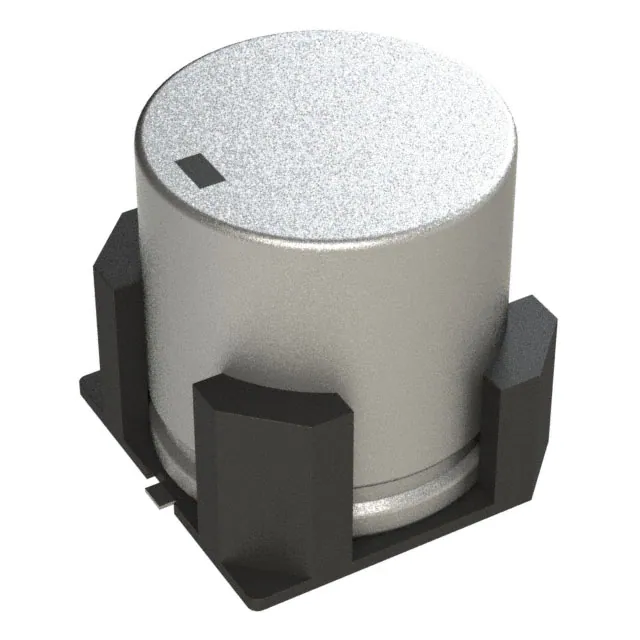

EEV-FK0J682VCAP ALUM 6800UF 20% 6.3V SMD |
258 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
