Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UBT2V220MHD8TOCAP ALUM 22UF 20% 350V RADIAL TH |
814 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 139 mA @ 120 Hz | 250.2 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCZ1C331MCS1GSCAP ALUM 330UF 20% 16V SMD |
490 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EMHL100ARA681MJA0GCAP ALUM 680UF 20% 10V SMD |
480 |
|
Datasheet |
AIchip™- MHL | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | 200mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 409.2 mA @ 120 Hz | 440 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
URS1E472MHD1TNCAP ALUM 4700UF 20% 25V RADIAL |
228 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.3575 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKY-500ELL122MM25SCAP ALUM 1200UF 20% 50V RADIAL |
1,050 |
|
Datasheet |
KY | Bulk | Active | 1200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.644 A @ 120 Hz | 2.74 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKY-500ELL182ML40SCAP ALUM 1800UF 20% 50V RADIAL |
946 |
|
Datasheet |
KY | Bulk | Active | 1800 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.226 A @ 120 Hz | 3.71 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EEU-FS1A752LCAP ALUM 7500UF 20% 10V RADIAL |
563 |
|
Datasheet |
FS-A | Bulk | Active | 7500 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UVK2E470MHD1TOCAP ALUM 47UF 20% 250V RADIAL TH |
504 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 47 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 432 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPA0J392MHD1TOCAP ALUM 3900UF 20% 6.3V RADIAL |
497 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 3900 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.938 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
338CKH025MCAP ALUM 3300UF 20% 25V RADIAL |
5,150 |
|
Datasheet |
CKH | Bulk | Active | 3300 µF | ±20% | 25 V | 100.5mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.52 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
MAL215097512E3CAP ALUM 330UF 20% 16V SMD |
3,347 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 304.5 mA @ 100 Hz | - | 250 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount | |
|

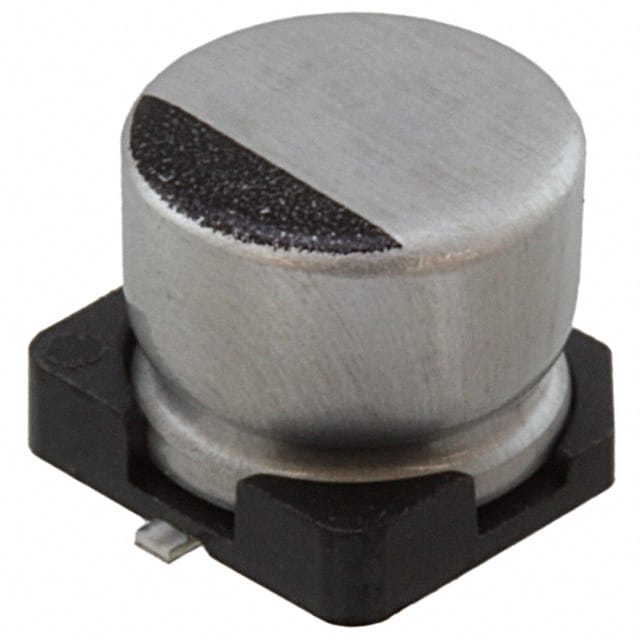

16SEV1000M12.5X13.5CAP ALUM 1000UF 20% 16V SMD |
2,586 |
|
Datasheet |
SEV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 720 mA @ 120 Hz | 864 mA @ 10 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
EKZN160ELL272MK25SCAP ALUM 2700UF 20% 16V RADIAL |
999 |
|
Datasheet |
KZN | Bulk | Active | 2700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.2 A @ 100 kHz | 19 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UHW1J391MHD6TOCAP ALUM 390UF 20% 63V RADIAL TH |
990 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 390 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 1.99 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXY160ELL222MK30SCAP ALUM 2200UF 20% 16V RADIAL |
973 |
|
Datasheet |
LXY | Bulk | Active | 2200 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4625 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UVK2W220MHDCAP ALUM 22UF 20% 450V RADIAL TH |
708 |
|
Datasheet |
UVK | Bulk | Active | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 224 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPA1C332MHD6TNCAP ALUM 3300UF 20% 16V RADIAL |
672 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860020380026CAP ALUM 5600UF 20% 16V RADIAL |
240 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 5600 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.2016 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
860010380027CAP ALUM 6800UF 20% 16V RADIAL |
160 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.805 A @ 120 Hz | 3.5904 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UVP1J221MHDCAP ALUM 220UF 20% 63V RADIAL TH |
137 |
|
Datasheet |
UVP | Bulk | Not For New Designs | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 575 mA @ 120 Hz | 862.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
