Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400HFG1800MBN45X80CAP ALUM 1800UF 20% 400V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.36 A @ 120 Hz | 7.504 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
450HFG1200MBN45X70CAP ALUM 1200UF 20% 450V RADIAL |
1 |
|
Datasheet |
HFG | Bulk | Active | 1200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.59 A @ 120 Hz | 6.426 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
B41456B7689M000CAP ALUM 68000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41456 | Bulk | Active | 68000 µF | ±20% | 40 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 A @ 100 Hz | - | 8.4 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
420HFG1500MBN40X95CAP ALUM 1500UF 20% 420V RADIAL |
2 |
|
Datasheet |
HFG | Bulk | Active | 1500 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.48 A @ 120 Hz | 7.672 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.819" (97.00mm) | - | Through Hole | |
|
450UFG1500MBN40X95CAP ALUM 1500UF 20% 450V RADIAL |
1 |
|
Datasheet |
UFG | Bulk | Active | 1500 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.07 A @ 120 Hz | 9.898 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.819" (97.00mm) | - | Through Hole | |
|
PSU5335CAP ALUM 53UF 250V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 53 µF | 0%, +20% | 250 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 3.435" (87.25mm) | - | Chassis Mount | |
|
LNT1C154MSECAP ALUM 150000UF 20% 16V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNT1E683MSECAP ALUM 68000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 68000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 11.73 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
420HFG1800MBN45X90CAP ALUM 1800UF 20% 420V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1800 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
B41560A7689M000CAP ALUM 68000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41560 | Bulk | Active | 68000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 8.4 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
450HFG1500MBN45X85CAP ALUM 1500UF 20% 450V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1500 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.36 A @ 120 Hz | 7.504 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.425" (87.00mm) | - | Through Hole | |
|

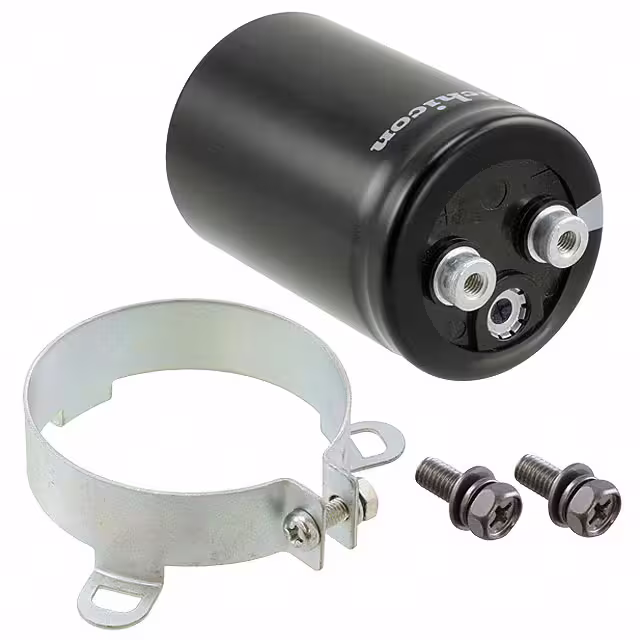

LNU2H681MSEFCAP ALUM 680UF 20% 500V SCREW CH |
0 |
|
Datasheet |
LNU | Bulk | Active | 680 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 5.6 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.031" (77.00mm) | - | Chassis Mount | |
|
LNY2W152MSEFCAP ALUM 1500UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 1500 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 9.52 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
LNC2H102MSEFCAP ALUM 1000UF 20% 500V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 1000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 120 Hz | 14.42 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.465" (88.00mm) | - | Chassis Mount | |
|
LNY2G222MSEFCAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 2200 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.740" (95.00mm) | - | Chassis Mount | |
|
LNX2V122MSEFCAP ALUM 1200UF 20% 350V SCREW |
3 |
|
Datasheet |
LNX | Bulk | Active | 1200 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 120 Hz | 7.42 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.874" (73.00mm) | - | Chassis Mount | |
|
|
LNC2V272MSEFCAP ALUM 2700UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.3 A @ 120 Hz | 18.62 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.858" (98.00mm) | - | Chassis Mount | |
|
|
450UFG1200MBN35X100CAP ALUM 1200UF 20% 450V RADIAL |
2 |
|
Datasheet |
UFG | Bulk | Active | 1200 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.34 A @ 120 Hz | 8.876 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 4.016" (102.00mm) | - | Through Hole | |
|
PEH200YH3470MU2CAP ALUM 470UF 20% 450V SCREW CH |
0 |
|
Datasheet |
PEH200 | Box | Active | 470 µF | ±20% | 450 V | 120mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 100 Hz | 17.5 A @ 10 kHz | - | 0.866" (22.00mm) | 2.031" Dia (51.60mm) | 2.933" (74.50mm) | - | Chassis Mount | |
|
LNT1C683MSECAP ALUM 68000UF 20% 16V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 68000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 8.165 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
