Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
475MXH150MEFCSN30X25CAP ALUM 150UF 20% 475V SNAP TH |
1 |
|
Datasheet |
MXH | Bulk | Active | 150 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGG2D122MELB35CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
200MXG1800MEFCSN35X40CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 4.62 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
450MXG560MEFCSN30X55CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 120 Hz | 3.276 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
ESMH500VSN332MP30UCAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 3300 µF | ±20% | 50 V | 100mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 2.37 A @ 120 Hz | 2.5596 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ELXS501VSN391MA50SCAP ALUM 390UF 20% 500V SNAP TH |
3 |
|
Datasheet |
LXS | Bulk | Active | 390 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.5454 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
861111486032CAP ALUM 220UF 20% 450V SNAP TH |
12 |
|
Datasheet |
WCAP-AIL5 | Tray | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.4904 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.142" (29.00mm) | - | Through Hole | |
|
475MXH220MEFCSN25X45CAP ALUM 220UF 20% 475V SNAP TH |
9 |
|
Datasheet |
MXH | Bulk | Active | 220 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEH227KLL4210QE4CAP ALUM 2100UF 40V SOLDER LUG |
0 |
|
Datasheet |
PEH227 | Bulk | Active | 2100 µF | -10%, +30% | 40 V | 49mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.415 A @ 100 Hz | 7.176 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
180MXG3300MEFCSN35X60CAP ALUM 3300UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 120 Hz | 5.16 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
450MXH560MEFCSN30X50CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.164 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

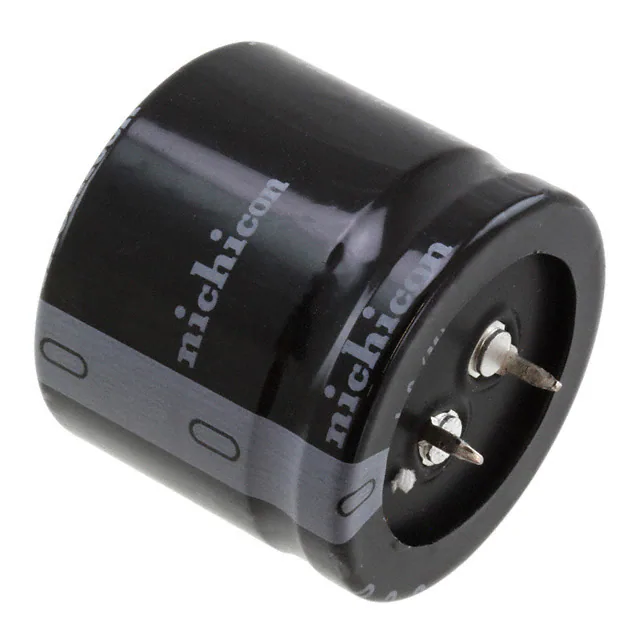

LLS2W271MELCCAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LAQ2P681MELC35CAP ALUM 680UF 20% 220V SNAP TH |
15 |
|
Datasheet |
LAQ | Bulk | Active | 680 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ETXH251VSN821MR50SCAP ALUM 820UF 20% 250V SNAP TH |
1 |
|
Datasheet |
TXH | Bulk | Active | 820 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 3.045 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
420MXK270MEFCSN25X35CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Tray | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELHS501VSN271MR45SCAP ALUM 270UF 20% 500V SNAP TH |
0 |
|
Datasheet |
LHS | Bulk | Active | 270 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.1021 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
400MXH390MEFCSN22X55CAP ALUM 390UF 20% 400V SNAP TH |
15 |
|
Datasheet |
MXH | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
LGN2C222MELB45CAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQSW6391MELC35CAP ALUM 390UF 20% 420V SNAP TH |
2 |
|
Datasheet |
LQS | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.3023 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAQ2D102MELB45CAP ALUM 1000UF 20% 200V SNAP TH |
5 |
|
Datasheet |
LAQ | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.88 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
