Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450MXG680MEFCSN35X55CAP ALUM 680UF 20% 450V SNAP TH |
1 |
|
Datasheet |
MXG | Bulk | Active | 680 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.514 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
861101486028CAP ALUM 680UF 20% 450V SNAP TH |
2 |
|
Datasheet |
WCAP-AIL8 | Tray | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.14 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.323" (59.00mm) | - | Through Hole | |
|

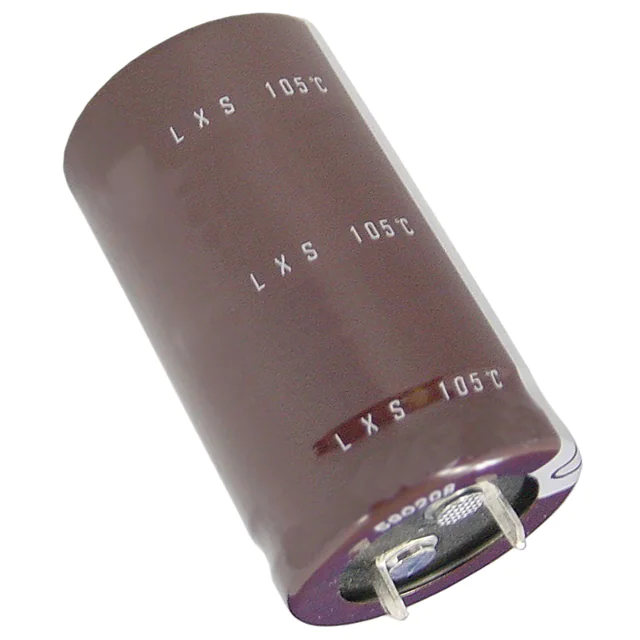

ELXS501VSN471MA60SCAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 470 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.461" (62.50mm) | - | Through Hole | |
|
MAL215919471E3CAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 500 V | 300mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
PEH169HA460AQU2CAP ALUM 6000UF 20% 25V SCREW CH |
0 |
|
Datasheet |
PEH169 | Bulk | Active | 6000 µF | ±20% | 25 V | - | 14000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | - | - | - | 1.378" Dia (35.00mm) | 2.165" (55.00mm) | - | Chassis Mount | |
|
LNR1E683MSECAP ALUM 68000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 68000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | 10.81 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
B43511A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43511 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | 320mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | - | 340 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
420HFG1200MBN40X80CAP ALUM 1200UF 20% 420V RADIAL |
1 |
|
Datasheet |
HFG | Bulk | Active | 1200 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 6.72 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
420HFG1000MBN35X85CAP ALUM 1000UF 20% 420V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1000 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.44 A @ 120 Hz | 6.216 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.425" (87.00mm) | - | Through Hole | |
|
450UFG1000MBN40X70CAP ALUM 1000UF 20% 450V RADIAL |
0 |
|
Datasheet |
UFG | Bulk | Active | 1000 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.56 A @ 120 Hz | 7.784 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
|
350HFG2200MBN45X85CAP ALUM 2200UF 20% 350V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.69 A @ 120 Hz | 7.966 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.425" (87.00mm) | - | Through Hole | |
|
CGR103U020R3LCAP ALUM 10000UF 20V SCREW CHAS |
0 |
|
Datasheet |
CGR | Bulk | Active | 10000 µF | -10%, +75% | 20 V | 11mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 16.79 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
B43511A5827M000CAP ALUM 820UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43511 | Bulk | Not For New Designs | 820 µF | ±20% | 450 V | 190mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | - | 200 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
LNY2W102MSEFCAP ALUM 1000UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 1000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.7 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.756" (70.00mm) | - | Chassis Mount | |
|
|
400HFG1500MBN40X90CAP ALUM 1500UF 20% 400V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1500 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 7.56 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
LNR2E222MSECAP ALUM 2200UF 20% 250V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 2200 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.8 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
350HFG1200MBN40X65CAP ALUM 1200UF 20% 350V RADIAL |
1 |
|
Datasheet |
HFG | Bulk | Active | 1200 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.33 A @ 120 Hz | 6.062 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.638" (67.00mm) | - | Through Hole | |
|
ALC70C272KP450CAP ALUM 2700UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2700 µF | ±20% | 450 V | 52.66mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.45 A @ 100 Hz | 15.99 A @ 10 kHz | 31 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
.JPG)
|
LNY2G152MSEFCAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 1500 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.1 A @ 120 Hz | 11.34 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.953" (75.00mm) | - | Chassis Mount | |
|
LNY2V222MSEFCAP ALUM 2200UF 20% 350V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 2200 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 120 Hz | 15.54 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.150" (80.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
