Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH169KD5100QB2CAP ALUM 10000UF 40V SCREW CHAS |
1 |
|
Datasheet |
PEH169 | Bulk | Active | 10000 µF | -10%, +30% | 40 V | 16mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512" (13.00mm) | 1.378" Dia (35.00mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
B43508A5687M000CAP ALUM 680UF 20% 450V SNAP TH |
2 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 680 µF | ±20% | 450 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | - | 260 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
LQR2V272MSEGCAP ALUM 2700UF 20% 350V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 14.84 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
LNY2G102MSEFCAP ALUM 1000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 1000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.96 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.362" (60.00mm) | - | Chassis Mount | |
|
PSU54015ACAP ALUM 540UF 125V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 540 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813" Dia (46.05mm) | 3.435" (87.25mm) | - | Chassis Mount | |
|
LNK2G222MSEFCAP ALUM 2200UF 20% 400V SCREW |
1 |
|
Datasheet |
LNK | Bulk | Active | 2200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 12.32 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
LNR1E104MSECAP ALUM 100000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 100000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 120 Hz | 13.8 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
PEH200MJ5220MB2CAP ALUM 22000UF 20% 63V SCREW |
0 |
|
Datasheet |
PEH200 | Bulk | Active | 22000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 8 mOhms | 0.866" (22.00mm) | 2.032" Dia (51.60mm) | 3.799" (96.50mm) | - | Chassis Mount | |
|
LNK2G222MSEGCAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 2200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.9 A @ 120 Hz | 12.46 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
LNC2V332MSEGCAP ALUM 3300UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 3300 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 120 Hz | 19.6 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
.JPG)
|
LQR2V392MSEGCAP ALUM 3900UF 20% 350V SCREW |
2 |
|
Datasheet |
LQR | Bulk | Active | 3900 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 20.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
LQR2G222MSEFCAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 2200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 14.56 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
LNT2W681MSEFCAP ALUM 680UF 20% 450V SCREW CH |
2 |
|
Datasheet |
LNT | Bulk | Active | 680 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|

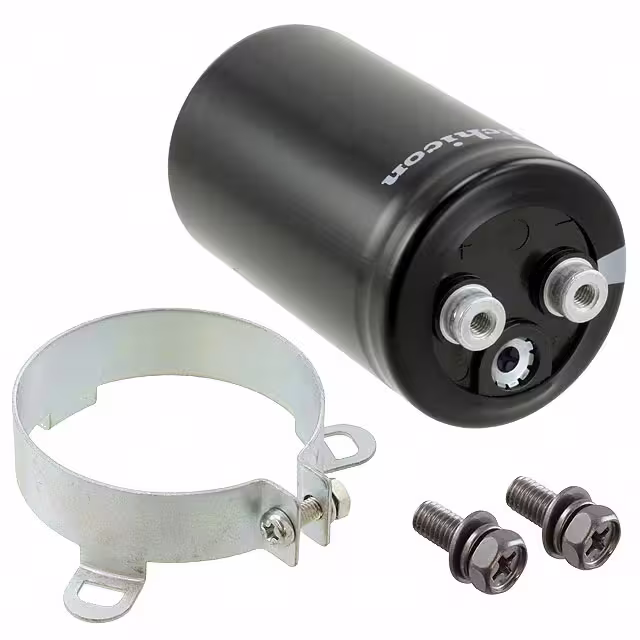

LNUN7681MSEFCAP ALUM 680UF 20% 525V SCREW CH |
0 |
|
Datasheet |
LNU | Bulk | Active | 680 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.16 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
CGS802U030R3CCAP ALUM 8000UF 30V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 8000 µF | -10%, +75% | 30 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.32 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
LNT1E154MSECAP ALUM 150000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.8 A @ 120 Hz | 15.87 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNR1A224MSECAP ALUM 220000UF 20% 10V SCREW |
2 |
|
Datasheet |
LNR | Bulk | Active | 220000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 14.95 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
CGS112U150R4CCAP ALUM 1100UF 150V SCREW CHAS |
5 |
|
Datasheet |
CGS | Bulk | Active | 1100 µF | -10%, +75% | 150 V | 64mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.72 A @ 10 kHz | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
LNR2E682MSECAP ALUM 6800UF 20% 250V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 6800 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.9 A @ 120 Hz | 10.68 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
LNK2G272MSEGCAP ALUM 2700UF 20% 400V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 2700 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.543" (90.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
