Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS-551QBUZZER PIEZO 12V 54.3MM BRACKET |
25 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.138" Dia (54.30mm) |
|

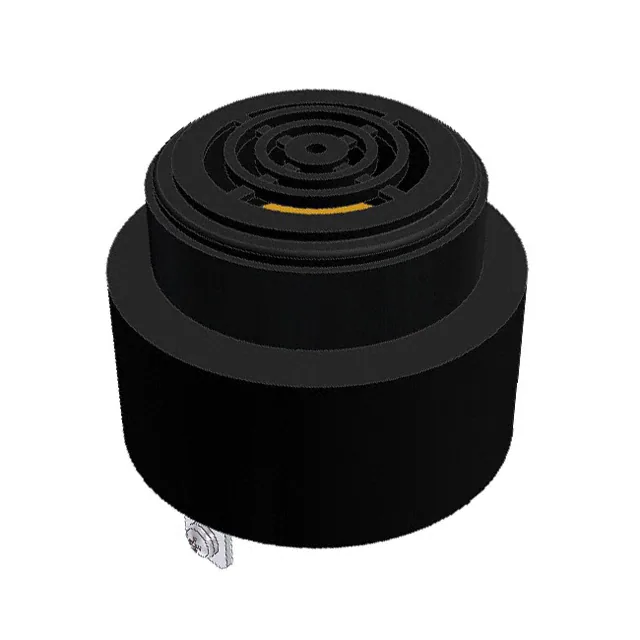

AI-4219-P-C28-RBUZZER PIEZO 12V 42.5MM PNL MNT |
14 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 81dB @ 12V, 10cm | 8mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
AT-5030-TF-2-LW100-RBUZZER PIEZO 24V 30MM FLANGE |
38 |
|
Datasheet |
AT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 24 V | - | 3kHz | Piezo | Single Tone | - | 106dB @ 24V, 30cm | 12mA | Top | -20°C ~ 80°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
MSS5GLBUZZER MAGN 5V 23X23MM TH |
23 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | - | Repeating every 30 Sec | 85dB @ 5V, 10cm | 200mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
PB-32N10W-12KBUZZER MAGNETIC 31.7MM FLANGE |
11 |
|
Datasheet |
PB | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 18V | 1.12kHz | Magnetic | Ding Dong | - | 75dB @ 6V, 30cm | 90 ~ 155mA | Top | -20°C ~ 55°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.248" Dia (31.70mm) |
|

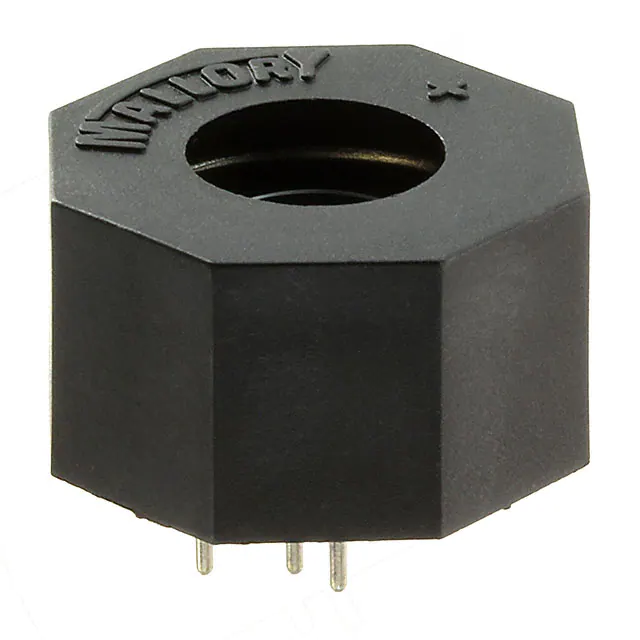

MSS5MMPBUZZER MAGN 5V 23X23MM TH |
69 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 46 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
SBT12M1PCBUZZER PIEZO 44.5MM TH |
21 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SNP428BUZZER PIEZO 41.66MM PNL MNT |
39 |
|
Datasheet |
SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) |
|
MSS5MMEBUZZER MAGN 5V 23X23MM TH |
67 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

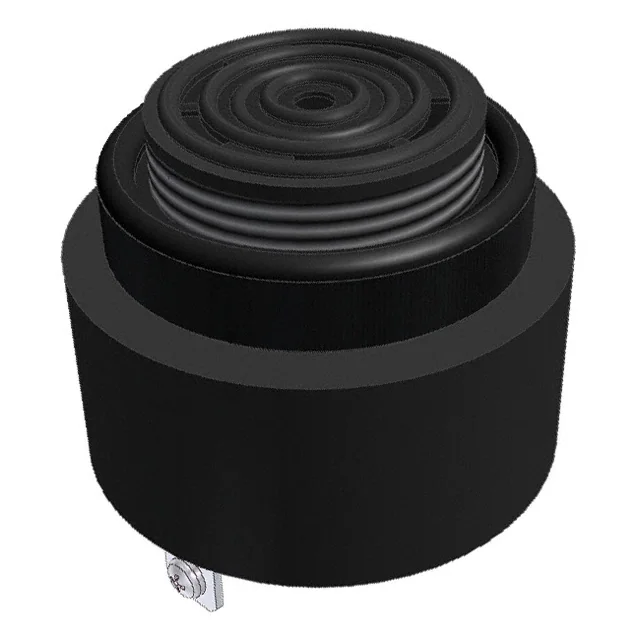

AI-4328-P-FP250-RBUZZER PIEZO 220V 42.5MM PNL MNT |
19 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 220 V | 60 ~ 250V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 91dB @ 220V, 10cm | 16mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
SC628-BTRBUZZER PIEZO 42.98MM PNL MNT |
39 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC416RBUZZER PIEZO 42.85MM PNL MNT |
6 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC105RBUZZER PIEZO 42.85MM PNL MNT |
17 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 60dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
MSS5MMCBUZZER MAGN 5V 23X23MM TH |
10 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
SCE028MD3CTBBUZZER PIEZO 42.85MM PNL MNT |
93 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

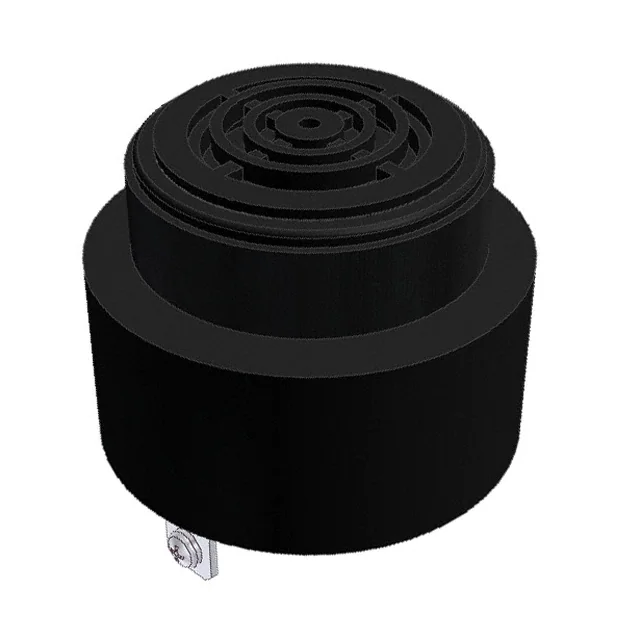

AI-4228-P-SP120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
27 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Pulse, Slow | 1 PPS | 92dB @ 110V, 10cm | 20mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
AI-4228-P-FP28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
8 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | AC, DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
SC616NPRBUZZER PIEZO 42.85MM PNL MNT |
46 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628LRBUZZER PIEZO 42.98MM PNL MNT |
78 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Wire Leads | 1.692" Dia (42.98mm) |
|
MSS5GMHCTBUZZER MAGN 5V 23X23MM TH |
11 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 20 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
