Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC628NDRBUZZER PIEZO 42.98MM PNL MNT |
70 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 83dB @ 6V, 61cm | 3 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|

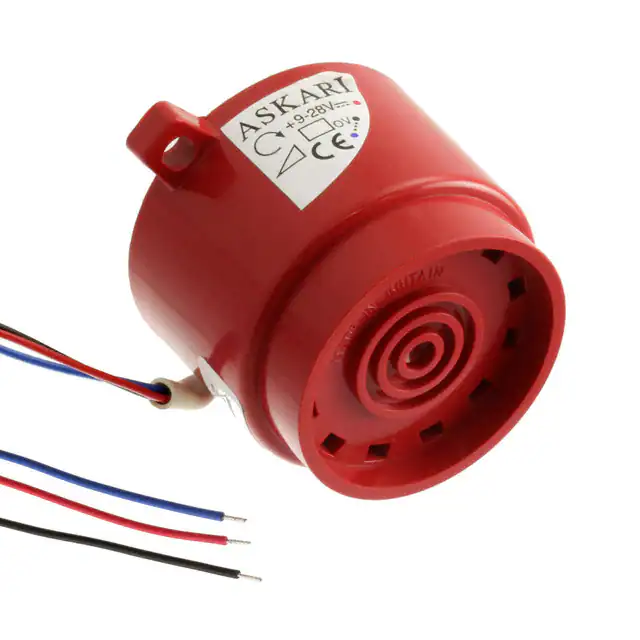

AW-10FR-NSVCBUZZER PIEZO 12V 53MM FLANGE |
20 |
|
Datasheet |
AW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.9kHz | Piezo | Dual Tone | - | 118dB @ 12V, 10cm | 15mA | Top | -25°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 2.087" Dia (53.00mm) |
|
4099BUZZER 12V63.2X64.3MM BRACKET |
71 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | 12 V | - | - | - | - | - | - | - | - | - | - | - | - | Bracket Mount | Screw Terminals | 2.488" L x 2.531" W (63.20mm x 64.30mm) |
|
ZA016LDCTBUZZER PIEZO 30.74MM PNL MNT |
12 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628NDPBUZZER PIEZO 42.98MM PNL MNT |
7 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 10V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
AW-10PR-NSVCBUZZER PIEZO 12V 50MM PNL MNT |
32 |
|
Datasheet |
AW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.9kHz | Piezo | Dual Tone | - | 106dB @ 12V, 10cm | 15mA | Top | -40°C ~ 80°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Wire Leads | 1.969" Dia (50.00mm) |
|

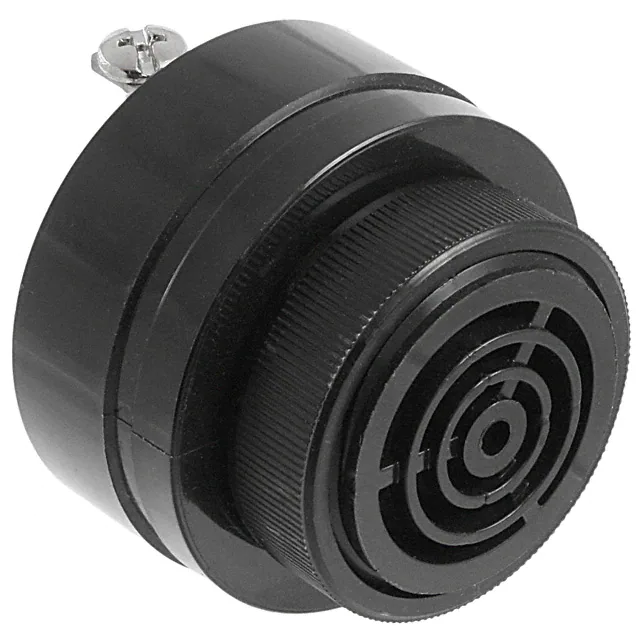

SC628DPRBUZZER PIEZO 42.98MM PNL MNT |
25 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZA016LDMP1BUZZER PIEZO 30.74MM PNL MNT |
9 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDMP1BUZZER PIEZO 30.74MM PNL MNT |
7 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC250NRBUZZER PIEZO 42.85MM PNL MNT |
34 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

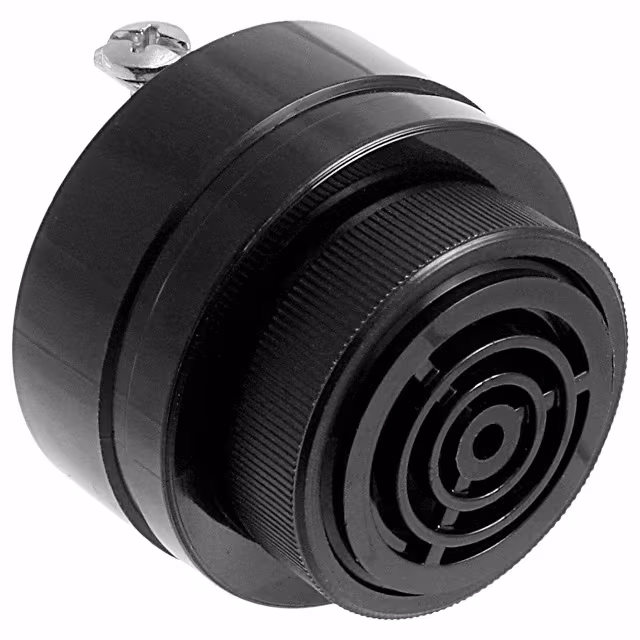

SC628NPRBUZZER PIEZO 42.98MM PNL MNT |
18 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC2036CPRBUZZER PIEZO 42.85MM PNL MNT |
41 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 36V | 1kHz | Piezo | Chime | - | 68dB @ 20V, 61cm | 12 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028LD2TT1BBUZZER PIEZO 42.98MM PNL MNT |
7 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.167kHz | Piezo | Ringer, 3 Tone | - | 85dB @ 16V, 61cm | 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
ZT028LDCTRBUZZER PIEZO 30.74MM PNL MNT |
13 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC250RBUZZER PIEZO 42.85MM PNL MNT |
27 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC616CPRBUZZER PIEZO 42.85MM PNL MNT |
14 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | - | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZA120MACTBUZZER PIEZO 30.74MM PNL MNT |
21 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC630JWBUZZER PIEZO 42.98MM PNL MNT |
29 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 30V | 2.3kHz | Piezo | Warble | 0.5 ~ 2 PPS | 65dB @ 6V, 61cm | 6 ~ 35mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC110DRBUZZER PIEZO 42.85MM PNL MNT |
16 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Single Tone | - | 60dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC648SBUZZER PIEZO 42.98MM PNL MNT |
12 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.4kHz | Piezo | Siren | 3.5 ~ 6.5 PPS | 80dB @ 10V, 61cm | 25 ~ 35mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
