Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

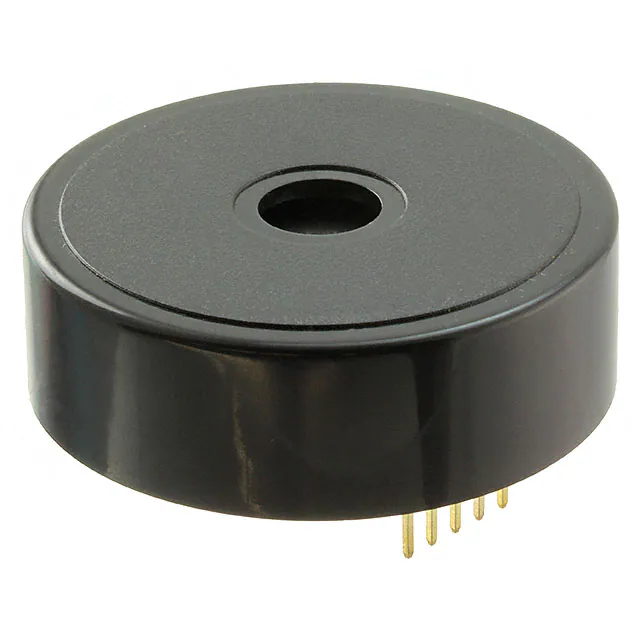

SBT5LMMVPCBUZZER PIEZO 44.5MM TH |
60 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SC110DPRBUZZER PIEZO 42.85MM PNL MNT |
8 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC648ANBUZZER PIEZO 42.98MM PNL MNT |
2 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
M2BJ-B24BBUZZER PIEZO 0.9X 0.7 PNL MNT |
3 |
|
Datasheet |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 4kHz | Piezo | Pin Selectable | Variable | 80dB @ 12V, 100cm | 20mA | Top | -10°C ~ 55°C | - | - | IP40 | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|

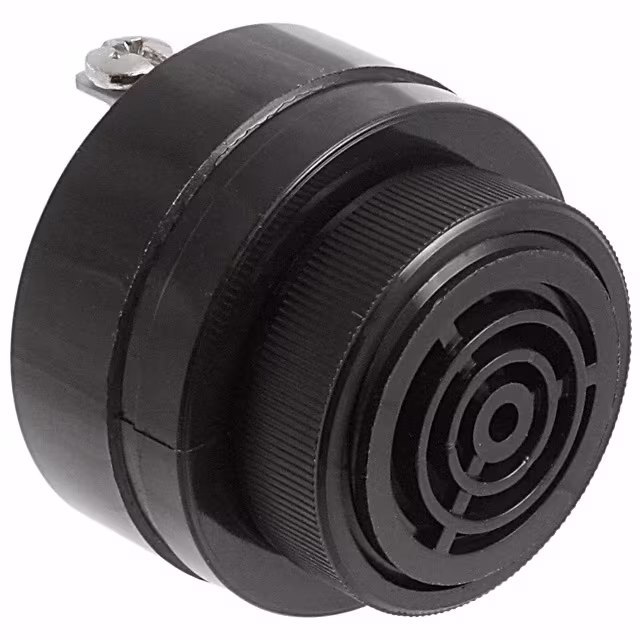

SC628ANJRBUZZER PIEZO 42.98MM PNL MNT |
17 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628ADPRBUZZER PIEZO 42.85MM PNL MNT |
24 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 7.5V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628ANJBUZZER PIEZO 42.98MM PNL MNT |
11 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC110PBUZZER PIEZO 42.85MM PNL MNT |
7 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC110PRBUZZER PIEZO 42.85MM PNL MNT |
14 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZT120LACTRBUZZER PIEZO 30.74MM PNL MNT |
3 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC110NPRBUZZER PIEZO 42.85MM PNL MNT |
4 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC250HPRBUZZER PIEZO 42.85MM PNL MNT |
3 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 60V, 61cm | 5 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028XD2CTBBUZZER PIEZO 42.85MM PNL MNT |
7 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone | - | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

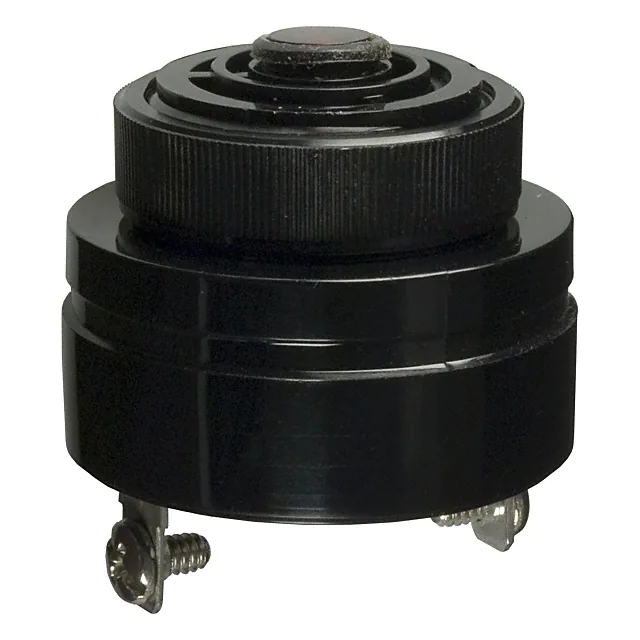

LSC616NBUZZER PIEZO 42.85MM PNL MNT |
2 |
|
Datasheet |
LSC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 80dB @ 6V, 61cm | 40 ~ 60mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028LD3DT7BBUZZER PIEZO 42.98MM PNL MNT |
14 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Warble, Fast | 7 WPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
AW-15SBWBUZZER PIEZO 24V 93MM BASE |
8 |
|
Datasheet |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 84dB @ 24V, 100cm | 6 ~ 33mA | Top | -10°C ~ 60°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.661" Dia (93.00mm) |
|

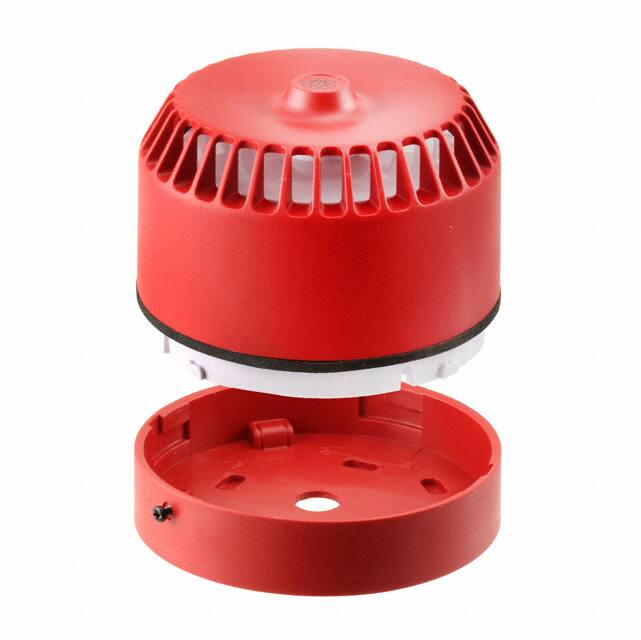

AW-15SBRBUZZER PIEZO 24V 93MM BASE |
4 |
|
Datasheet |
AW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 84dB @ 24V, 100cm | 6 ~ 33mA | Top | -10°C ~ 60°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.661" Dia (93.00mm) |
|
|
M2BJ-B24BUZZER PIEZO 0.9X 0.7 PNL MNT |
22 |
|
Datasheet |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 2kHz | Piezo | Pin Selectable | Variable | 80dB @ 12V, 100cm | 7 ~ 20mA | Top | -10°C ~ 55°C | - | - | IP40 | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
|
SC110NJBUZZER PIEZO 42.85MM PNL MNT |
9 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC616WYRBUZZER PIEZO 42.85MM PNL MNT |
6 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
