Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA028MDCM1BUZZER PIEZO 30.74MM PNL MNT |
12 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|

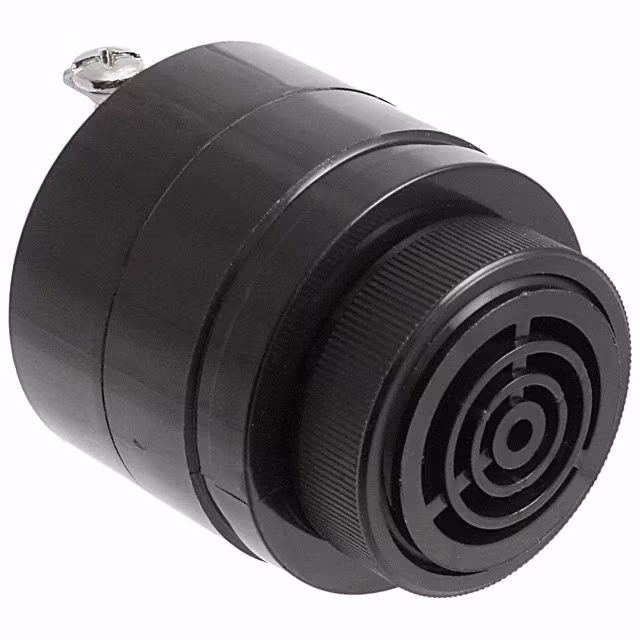

SC110JRBUZZER PIEZO 42.85MM PNL MNT |
22 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZT028LDIC3RBUZZER PIEZO 24V 30.74MM PNL MNT |
21 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|

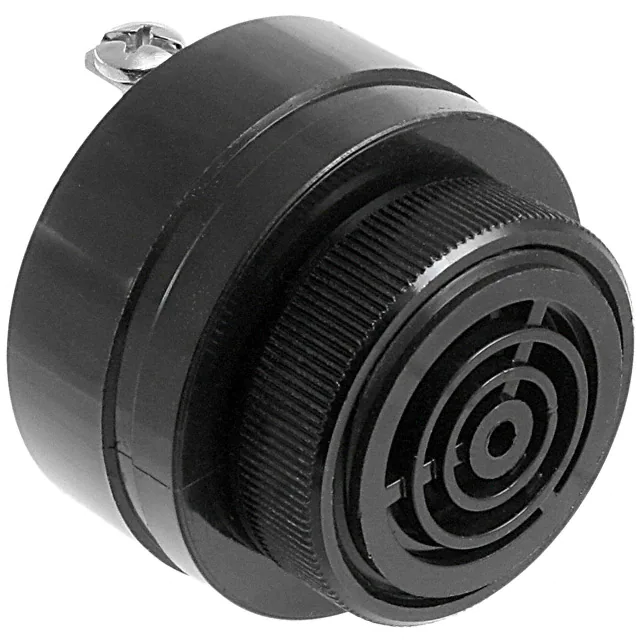

SC628MNBUZZER PIEZO 42.98MM PNL MNT |
25 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
31-801.002BUZZER - 0.945" L X 0.709" W SMD |
19 |
|
Datasheet |
31 | Bulk | Active | Indicator, Internally Driven | DC | - | - | - | - | - | - | - | - | Top | - | - | - | IP40 | Surface Mount | Solder Tabs | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
SC628ANPBUZZER PIEZO 42.98MM PNL MNT |
16 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZT028LDIC1RBUZZER PIEZO 24V 30.74MM PNL MNT |
17 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
31-810.005BUZZER - 0.945" L X 0.709" W SMD |
17 |
|
Datasheet |
31 | Bulk | Active | Indicator, Internally Driven | AC, DC | - | - | - | - | - | - | - | - | Top | - | - | - | IP40 | Surface Mount | Solder Tabs | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
XVS10BMWBUZZER 24V153.2MMX114MMBLACK |
8 |
|
Datasheet |
Harmony XVS | Box | Active | - | AC, DC | 24 V | - | - | - | Siren | - | - | 300mA | User Defined | -30°C ~ 50°C | CE | - | IP53 | Bracket Mount | - | 6.031" L x 4.488" W (153.20mm x 114.00mm) |
|
PT-1403BUZZER PIEZO 9V 14MM CUSTOM |
170 |
|
Datasheet |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 9 V | 1 ~ 30V | 5.2kHz | Piezo | Single Tone | - | 80dB @ 9V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) |
|
AT-1220-TT-8-RBUZZER MAGNETIC 1.5V 12MM TH |
999 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CPT-14146-80TBUZZER PIEZO 10V 14MM TH |
661 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 10 V | 30V | 4kHz | Piezo | - | - | 80dB @ 10V, 10cm | 7mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
|
CEM-1201(50)BUZZER MAGNETIC 1.5V 12.00MM TH |
999 |
|
Datasheet |
CEM | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CMT-1285C-015BUZZER MAGNETIC 1.5V 12.00MM TH |
990 |
|
Datasheet |
CMT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CSQ-601BPBUZZER MAGNETIC 1.5V 12.00MM TH |
548 |
|
Datasheet |
CSQ | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 70dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
AT-1127-ST-HT-RBUZZER MAGNETIC 3V 9MM TH |
196 |
|
Datasheet |
AT | Box | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 85dB @ 3V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) |
|
|
AT-1220-TT-11-RBUZZER MAGNETIC 1.5V 12MM TH |
26 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 4V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 78dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CPT-2207-84TBUZZER PIEZO 10V 22MM TH |
491 |
|
Datasheet |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4kHz | Piezo | - | - | 84dB @ 10V, 10cm | 6mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) |
|

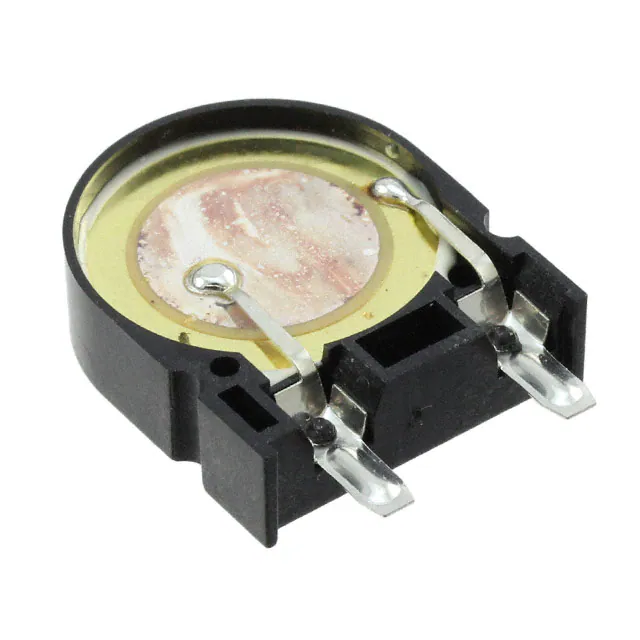

PT-2707BUZZER PIEZO 3V 22X7MM W TH |
92 |
|
Datasheet |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 2kHz | Piezo | Single Tone | - | 70dB @ 3V, 10cm | 1mA | Side | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" L x 0.276" W (22.00mm x 7.00mm) |
|
GT-1206ABUZZER MAGNETIC 5V 12MM TH |
73 |
|
Datasheet |
GT | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 1 ~ 2V | 2.7kHz | Magnetic | Single Tone | - | 75dB @ 5V, 10cm | 15mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
