Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

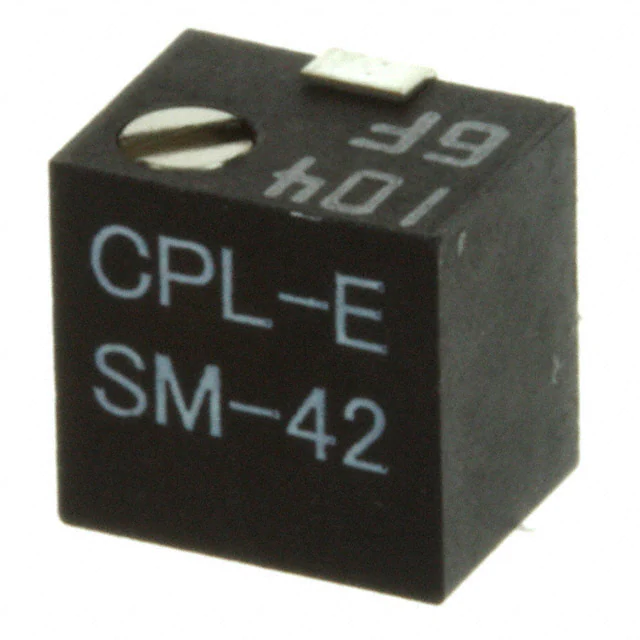

SM-42TA104TRIMMER 100K OHM 0.25W J LEAD |
7,347 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
SM-42TW503TRIMMER 50K OHM 0.25W J LEAD TOP |
6,220 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW103TRIMMER 10K OHM 0.25W J LEAD TOP |
5,286 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW204TRIMMER 200KOHM 0.25W J LEAD TOP |
2,362 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3296W-1-103TRIMMER 10K OHM 0.5W PC PIN TOP |
758 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|

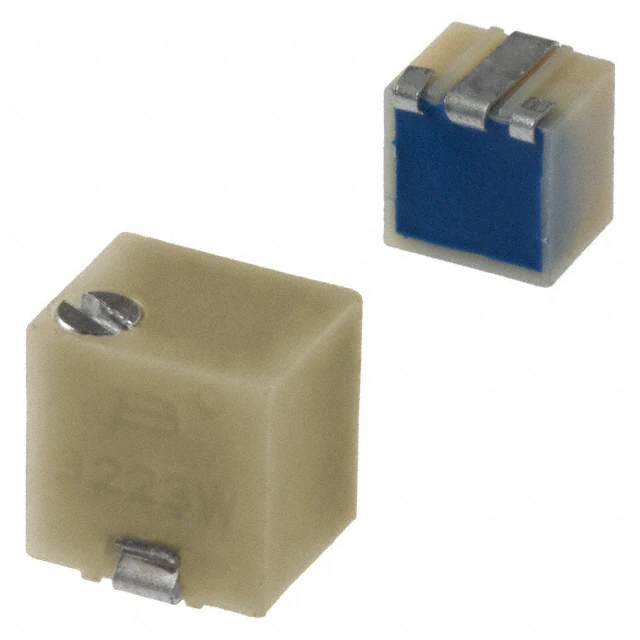

3223W-1-104ETRIMMER 100K OHM 0.125W J LEAD |
10,874 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 100 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-502ETRIMMER 5K OHM 0.125W J LEAD TOP |
3,658 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-202ETRIMMER 2K OHM 0.125W J LEAD TOP |
2,967 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 2 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-102ETRIMMER 1K OHM 0.125W J LEAD TOP |
2,236 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 1 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-504ETRIMMER 500K OHM 0.125W J LEAD |
2,017 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 500 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-203ETRIMMER 20KOHM 0.125W J LEAD TOP |
1,236 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 20 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-503ETRIMMER 50KOHM 0.125W J LEAD TOP |
1,124 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 50 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-201ETRIMMER 200OHM 0.125W J LEAD TOP |
1,062 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 200 Ohms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
3224X-1-502ETRIMMER 5K OHM 0.25W GW TOP ADJ |
9,079 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3224W-1-102ETRIMMER 1K OHM 0.25W J LEAD TOP |
7,050 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3224G-1-502ETRIMMER 5K OHM 0.25W GW SIDE ADJ |
6,175 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) |
|
3224J-1-203ETRIMMER 20KOHM 0.25W J LEAD SIDE |
5,462 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) |
|
|
3224W-1-103ETRIMMER 10K OHM 0.25W J LEAD TOP |
3,764 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
3224W-1-104ETRIMMER 100KOHM 0.25W J LEAD TOP |
3,296 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
3224J-1-503ETRIMMER 50KOHM 0.25W J LEAD SIDE |
2,562 |
|
Datasheet |
Trimpot® 3224 - Sealed | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.181" x 0.138" Face (4.60mm x 3.50mm) |
