Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3296W-1-103LFTRIMMER 10K OHM 0.5W PC PIN TOP |
2,370 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-202LFTRIMMER 2K OHM 0.5W PC PIN TOP |
2,315 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-203LFTRIMMER 20K OHM 0.5W PC PIN TOP |
2,304 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-101LFTRIMMER 100 OHM 0.5W PC PIN TOP |
2,054 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-502LFTRIMMER 5K OHM 0.5W PC PIN TOP |
1,840 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|

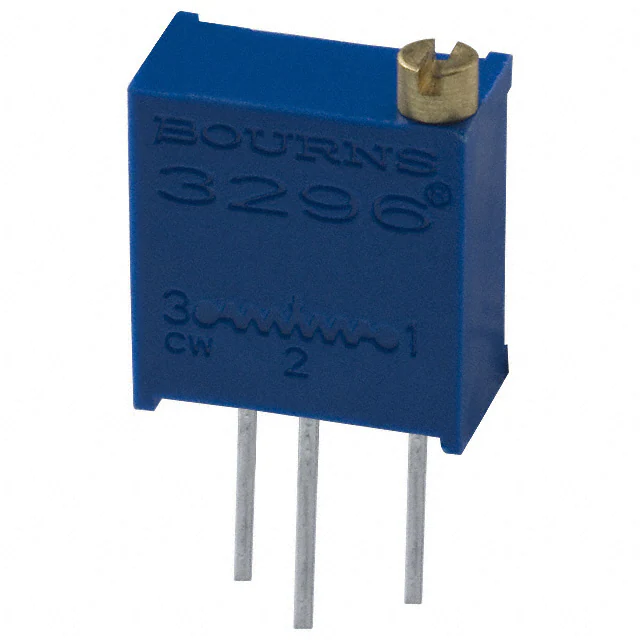

3296Y-1-203LFTRIMMER 20K OHM 0.5W PC PIN TOP |
1,830 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|

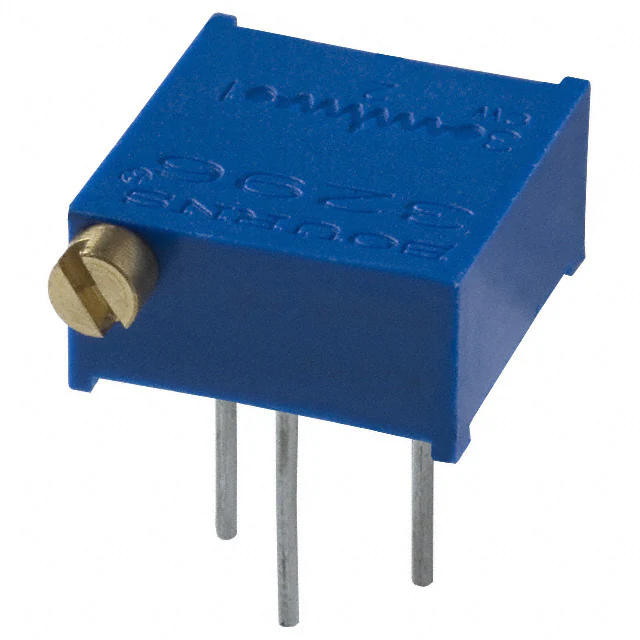

3296P-1-103LFTRIMMER 10K OHM 0.5W PC PIN SIDE |
1,204 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-504LFTRIMMER 500K OHM 0.5W PC PIN TOP |
1,017 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296Y-1-201LFTRIMMER 200 OHM 0.5W PC PIN TOP |
857 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296Y-1-104LFTRIMMER 100K OHM 0.5W PC PIN TOP |
692 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296Y-1-103LFTRIMMER 10K OHM 0.5W PC PIN TOP |
612 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
22AR1KLFTRTRIMMER 1K OHM 0.125W J LEAD TOP |
35,107 |
|
Datasheet |
22 | Tape & Reel (TR) | Active | 1 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) |
|
|
22AR100KLFTRTRIMMER 100K OHM 0.125W J LEAD |
30,312 |
|
Datasheet |
22 | Tape & Reel (TR) | Active | 100 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) |
|
|
22AR50KLFTRTRIMMER 50KOHM 0.125W J LEAD TOP |
13,595 |
|
Datasheet |
22 | Tape & Reel (TR) | Active | 50 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) |
|
|
22AR20KLFTRTRIMMER 20KOHM 0.125W J LEAD TOP |
12,720 |
|
Datasheet |
22 | Tape & Reel (TR) | Active | 20 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) |
|
|
22AR10KLFTRTRIMMER 10KOHM 0.125W J LEAD TOP |
12,398 |
|
Datasheet |
22 | Tape & Reel (TR) | Active | 10 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) |
|

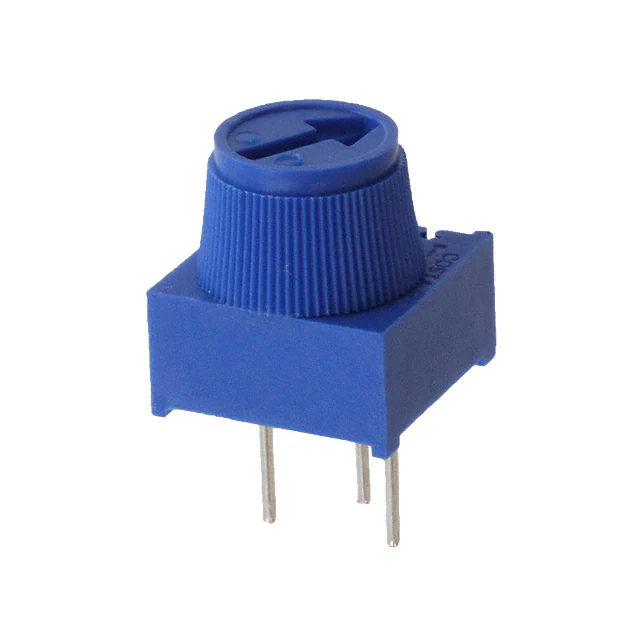

3386P-1-103TLFTRIMMER 10K OHM 0.5W PC PIN TOP |
1,052 |
|
Datasheet |
Trimpot® 3386 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Finger Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
3386F-1-103TLFTRIMMER 10K OHM 0.5W PC PIN TOP |
320 |
|
Datasheet |
Trimpot® 3386 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Finger Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
64WR10KLFTRIMMER 10K OHM 0.25W PC PIN TOP |
7,426 |
|
Datasheet |
64 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.165" Face (6.35mm x 4.19mm) |
|
|
64WR5KLFTRIMMER 5K OHM 0.25W PC PIN TOP |
7,368 |
|
Datasheet |
64 | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.165" Face (6.35mm x 4.19mm) |
