Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST-5ETP103TRIMMER 10K OHM 0.25W GW SIDE |
2,701 |
|
Datasheet |
ST5 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.266" x 0.236" Face (6.75mm x 6.00mm) |
|
|
ST-5ETW104TRIMMER 100K OHM 0.25W GW TOP |
2,136 |
|
Datasheet |
ST5 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|
|
ST-5ETW501TRIMMER 500 OHM 0.25W GW TOP ADJ |
1,700 |
|
Datasheet |
ST5 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|
|
ST-5ETW502TRIMMER 5K OHM 0.25W GW TOP ADJ |
357 |
|
Datasheet |
ST5 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|
|
ST-5ETW503TRIMMER 50K OHM 0.25W GW TOP ADJ |
198 |
|
Datasheet |
ST5 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|

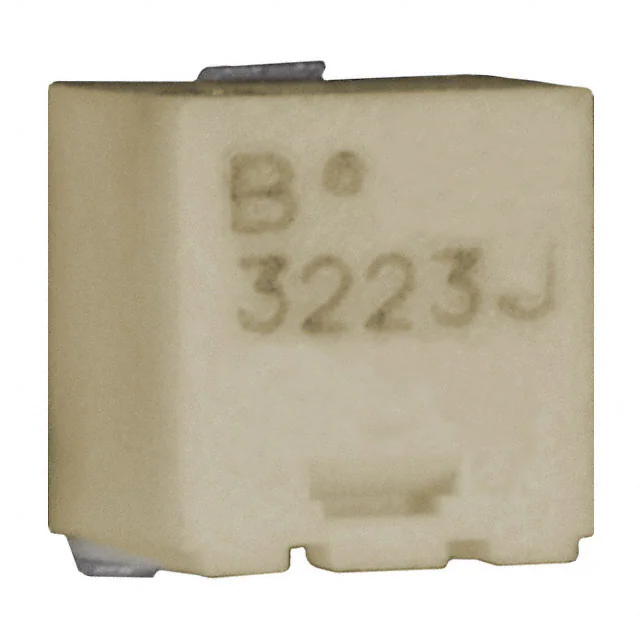

3223J-1-503ETRIMMER 50K OHM 0.125W J LEAD |
2,390 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 50 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
3269W-1-103GLFTRIMMER 10K OHM 0.25W GW TOP ADJ |
3,604 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-103LFTRIMMER 10K OHM 0.25W GW TOP ADJ |
1,230 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-202GLFTRIMMER 2K OHM 0.25W GW TOP ADJ |
949 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-502GLFTRIMMER 5K OHM 0.25W GW TOP ADJ |
897 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-102GLFTRIMMER 1K OHM 0.25W GW TOP ADJ |
528 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-104LFTRIMMER 100K OHM 0.25W GW TOP |
501 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-203GLFTRIMMER 20K OHM 0.25W GW TOP ADJ |
489 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
TS63Y102KR10TRIMMER 1K OHM 0.25W GW TOP ADJ |
4,495 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y104KR10TRIMMER 100K OHM 0.25W GW TOP |
1,434 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y103KR10TRIMMER 10K OHM 0.25W GW TOP ADJ |
1,300 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y202KR10TRIMMER 2K OHM 0.25W GW TOP ADJ |
171 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
43WR10KLFTRTRIMMER 10KOHM 0.125W J LEAD TOP |
749 |
|
Datasheet |
43 | Tape & Reel (TR) | Active | 10 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.161" x 0.125" Face (4.10mm x 3.18mm) |
|

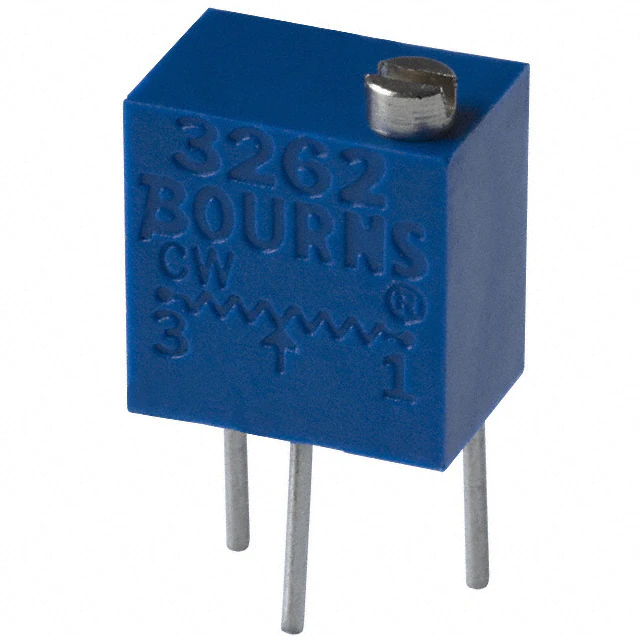

3262W-1-502LFTRIMMER 5K OHM 0.25W PC PIN TOP |
293 |
|
Datasheet |
Trimpot® 3262 - Sealed | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3262W-1-103LFTRIMMER 10K OHM 0.25W PC PIN TOP |
192 |
|
Datasheet |
Trimpot® 3262 - Sealed | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
