Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7YA224MB40TRIMMER 220K OHM 0.5W PC PIN TOP |
383 |
|
Datasheet |
T7 | Bulk | Active | 220 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
3223J-1-102ETRIMMER 1KOHM 0.125W J LEAD SIDE |
997 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 1 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223J-1-203ETRIMMER 20K OHM 0.125W J LEAD |
690 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 20 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|

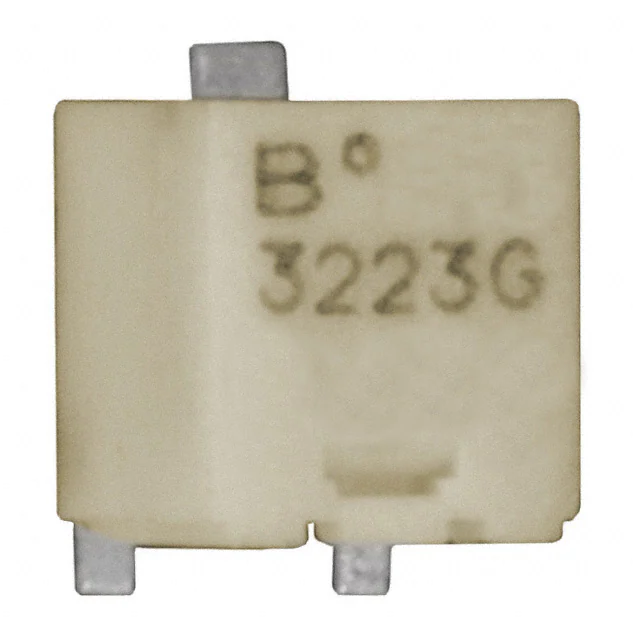

3223G-1-502ETRIMMER 5K OHM 0.125W GW SIDE |
356 |
|
Datasheet |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|

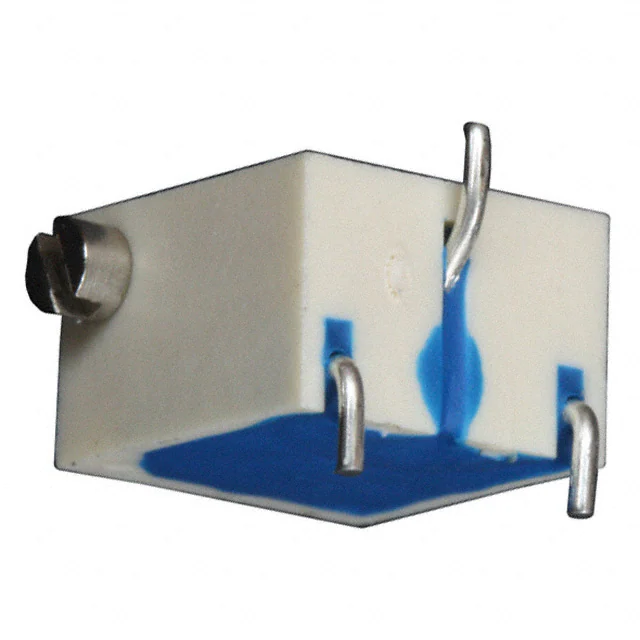

3269X-1-103GLFTRIMMER 10K OHM 0.25W GW SIDE |
5,755 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3269W-1-201GLFTRIMMER 200 OHM 0.25W GW TOP ADJ |
1,128 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-105GLFTRIMMER 1M OHM 0.25W GW TOP ADJ |
1,109 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3269P-1-103GLFTRIMMER 10K OHM 0.25W GW SIDE |
718 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-102LFTRIMMER 1K OHM 0.25W GW TOP ADJ |
655 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-104GLFTRIMMER 100K OHM 0.25W GW TOP |
635 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269P-1-103LFTRIMMER 10K OHM 0.25W GW SIDE |
388 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-501LFTRIMMER 500 OHM 0.25W GW TOP ADJ |
213 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
|
3269W-1-503GLFTRIMMER 50K OHM 0.25W GW TOP ADJ |
129 |
|
Datasheet |
Trimpot® 3269 - Sealed | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|

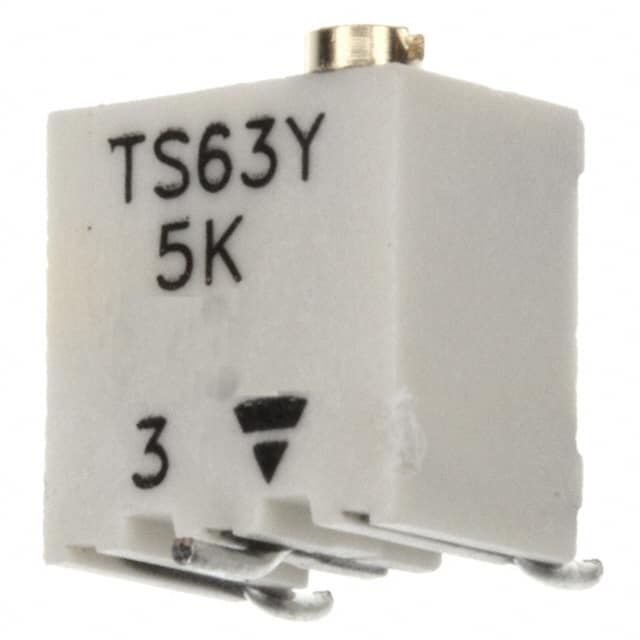

TS63Y502KR10TRIMMER 5K OHM 0.25W GW TOP ADJ |
7,138 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|

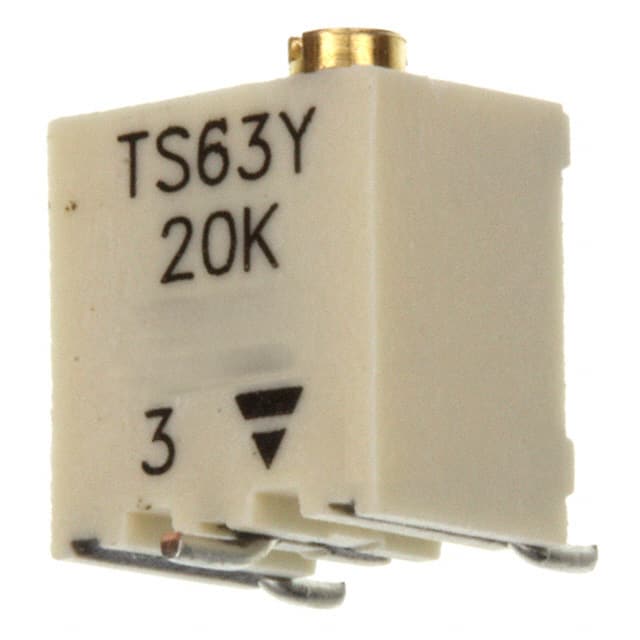

TS63Y203KR10TRIMMER 20K OHM 0.25W GW TOP ADJ |
2,244 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y503KR10TRIMMER 50K OHM 0.25W GW TOP ADJ |
1,736 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|

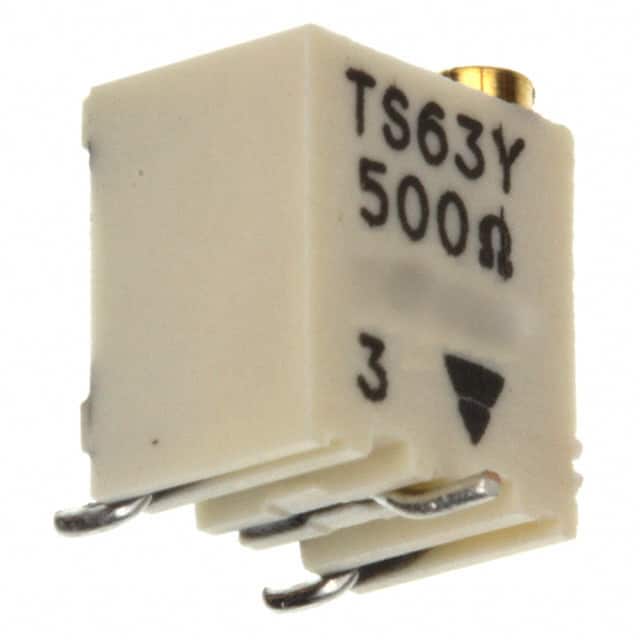

TS63Y501KR10TRIMMER 500 OHM 0.25W GW TOP ADJ |
1,064 |
|
Datasheet |
TS63 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y502KT20TRIMMER 5K OHM 0.25W GW TOP ADJ |
855 |
|
Datasheet |
TS63 | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y202KT20TRIMMER 2K OHM 0.25W GW TOP ADJ |
500 |
|
Datasheet |
TS63 | Tube | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y103KT20TRIMMER 10K OHM 0.25W GW TOP ADJ |
471 |
|
Datasheet |
TS63 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
