Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

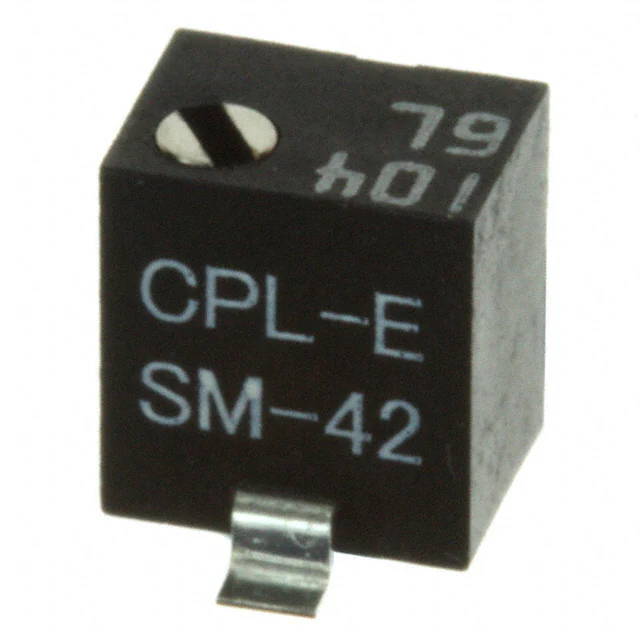

SM-42TX104TRIMMER 100K OHM 0.25W GW TOP |
33,792 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
SM-42TW104TRIMMER 100KOHM 0.25W J LEAD TOP |
18,614 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW102TRIMMER 1K OHM 0.25W J LEAD TOP |
9,648 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW101TRIMMER 100 OHM 0.25W J LEAD TOP |
9,472 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
SM-42TA502TRIMMER 5K OHM 0.25W J LEAD SIDE |
7,969 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TW502TRIMMER 5K OHM 0.25W J LEAD TOP |
6,474 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

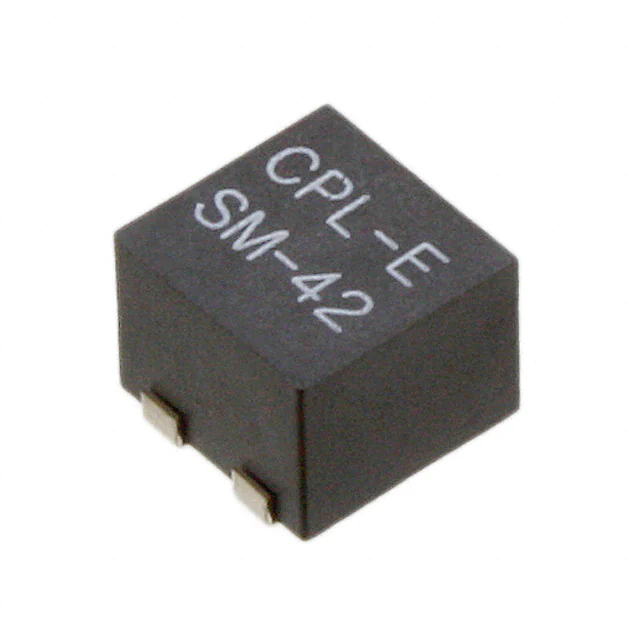

SM-42TA102TRIMMER 1K OHM 0.25W J LEAD SIDE |
5,263 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TW202TRIMMER 2K OHM 0.25W J LEAD TOP |
5,035 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

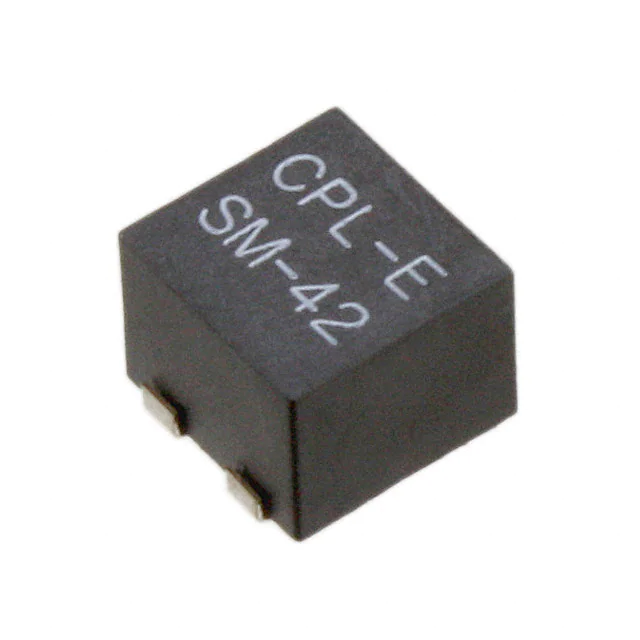

SM-42TA103TRIMMER 10KOHM 0.25W J LEAD SIDE |
4,748 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

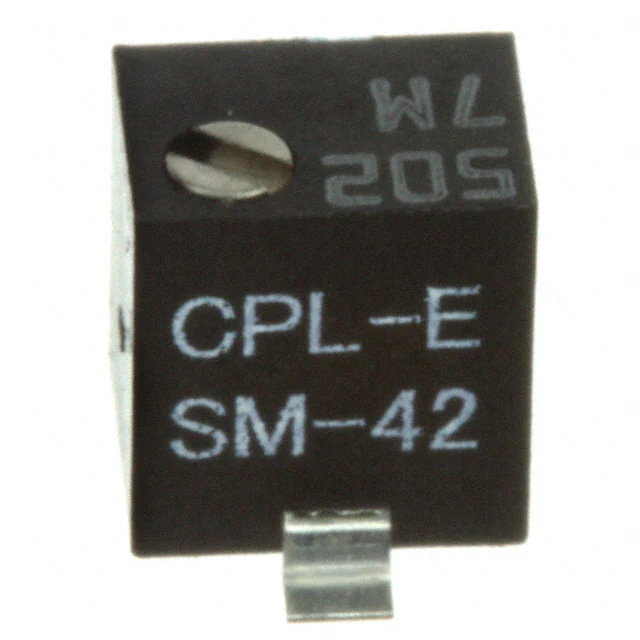

SM-42TX502TRIMMER 5K OHM 0.25W GW TOP ADJ |
4,154 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

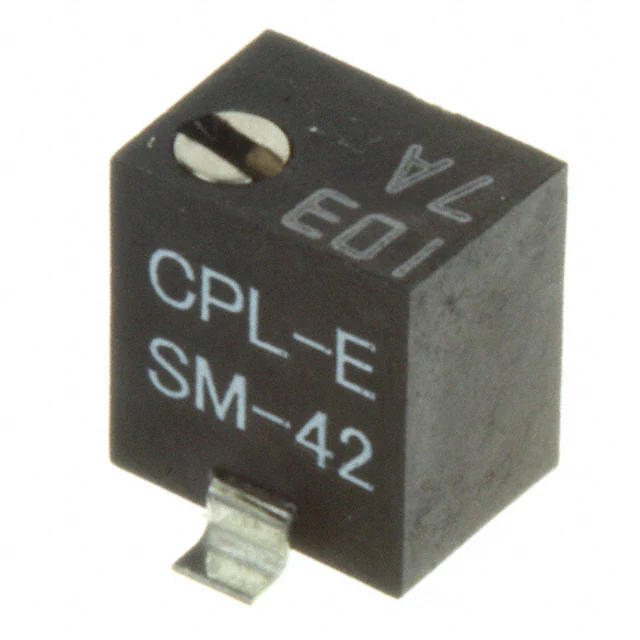

SM-42TX103TRIMMER 10K OHM 0.25W GW TOP ADJ |
2,885 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

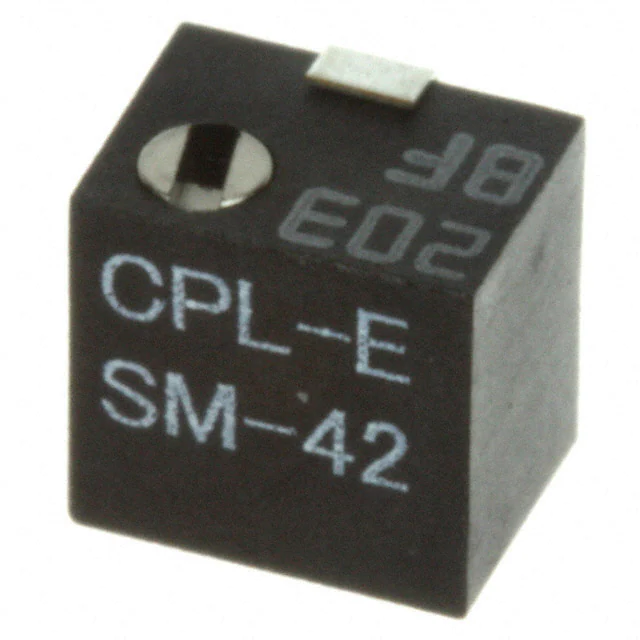

SM-42TA203TRIMMER 20KOHM 0.25W J LEAD SIDE |
2,433 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TW203TRIMMER 20K OHM 0.25W J LEAD TOP |
2,017 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

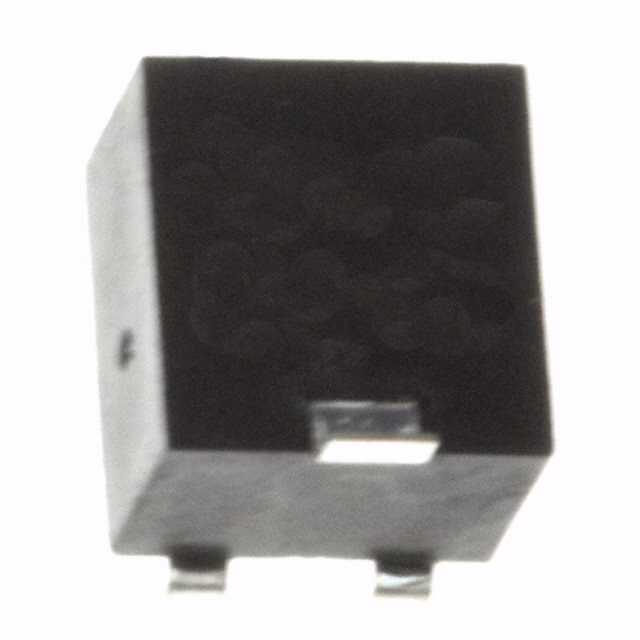

SM-42TX102TRIMMER 1K OHM 0.25W GW TOP ADJ |
1,885 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW501TRIMMER 500 OHM 0.25W J LEAD TOP |
1,515 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

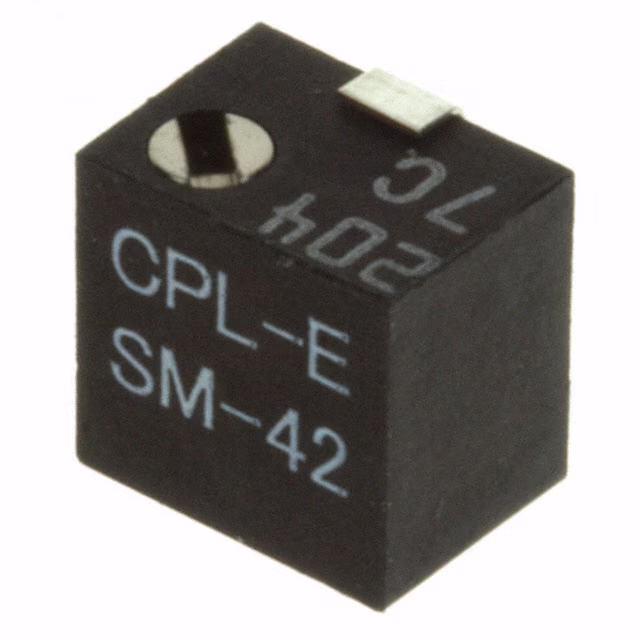

SM-42TA204TRIMMER 200K OHM 0.25W J LEAD |
1,498 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

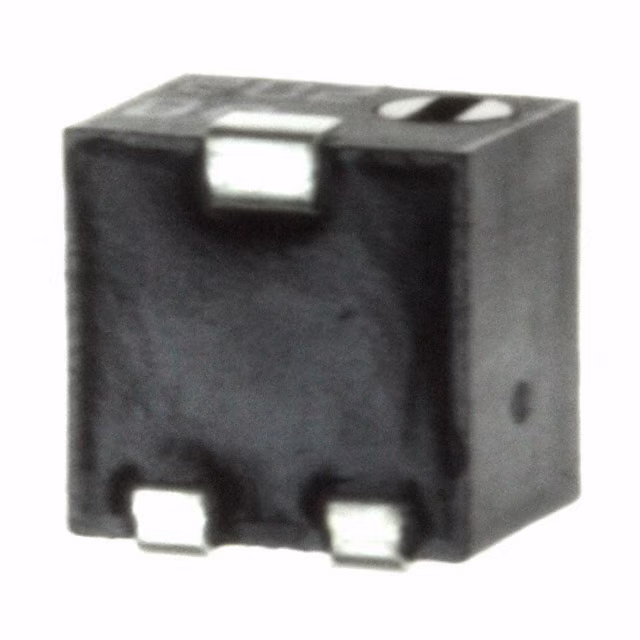

SM-42TA202TRIMMER 2K OHM 0.25W J LEAD SIDE |
1,217 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

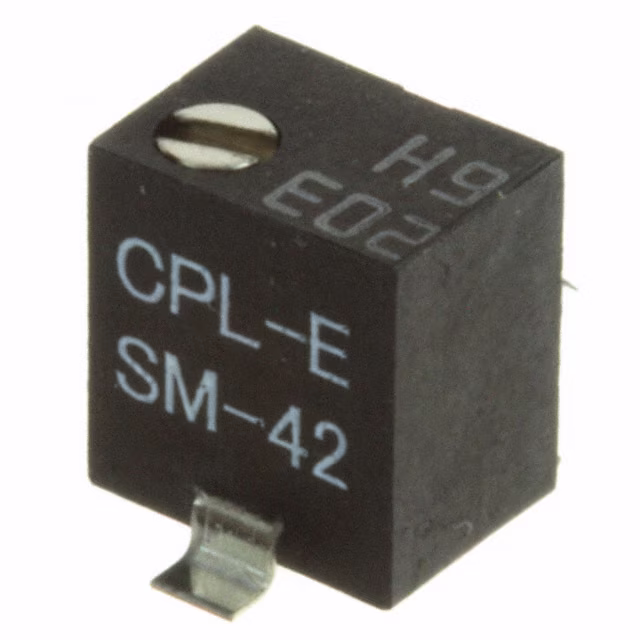

SM-42TX203TRIMMER 20K OHM 0.25W GW TOP ADJ |
583 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

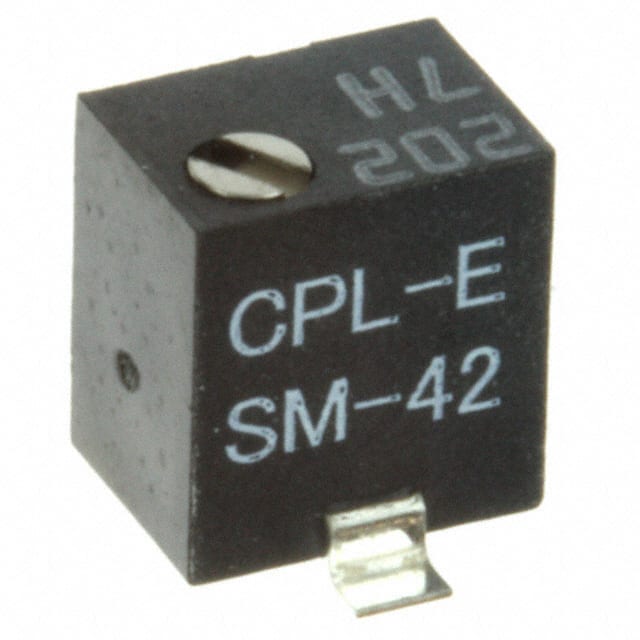

SM-42TX202TRIMMER 2K OHM 0.25W GW TOP ADJ |
534 |
|
Datasheet |
SM42 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3296W-1-102TRIMMER 1K OHM 0.5W PC PIN TOP |
461 |
|
Datasheet |
Trimpot® 3296 - Sealed | Tube | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
Trimmer Potentiometers Electronic Components
Explore Trimmer Potentiometers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
