Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3266W-1-104TRIMMER 100KOHM 0.25W PC PIN TOP |
103 |
|
Datasheet |
Trimpot® 3266 - Sealed | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
M63P103KB30T607TRIMMER 10K OHM 0.5W PC PIN SIDE |
575 |
|
Datasheet |
63 | Box | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|

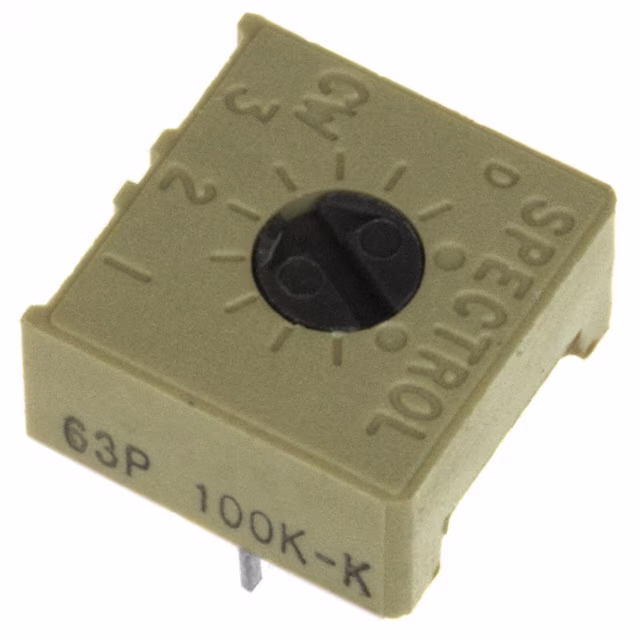

M63P104KB40TRIMMER 100KOHM 0.5W PC PIN SIDE |
1,250 |
|
Datasheet |
63 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
3006P-1-103ZLFTRIMMER 10KOHM 0.75W PC PIN SIDE |
2,878 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006P-1-102ZLFTRIMMER 1K OHM 0.75W PC PIN SIDE |
1,515 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 1 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006P-1-202ZLFTRIMMER 2K OHM 0.75W PC PIN SIDE |
430 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 2 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006P-1-203ZLFTRIMMER 20KOHM 0.75W PC PIN SIDE |
231 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 20 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006P-1-104ZLFTRIMMER 100K OHM 0.75W PC PIN |
139 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 100 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|
|
3006P-1-503ZLFTRIMMER 50KOHM 0.75W PC PIN SIDE |
139 |
|
Datasheet |
Trimpot® 3006 - Sealed | Tube | Active | 50 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm) |
|

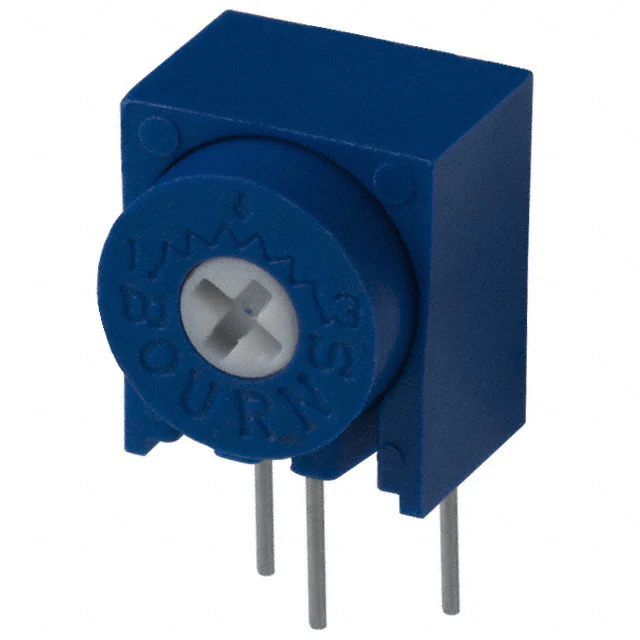

3339W-1-103LFTRIMMER 10K OHM 0.5W PC PIN SIDE |
190 |
|
Datasheet |
Trimpot® 3339 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.320" Face (9.53mm x 8.13mm) |
|
TSM4YJ104KR05TRIMMER 100K OHM 0.25W GW TOP |
1,318 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YL203KR05TRIMMER 20K OHM 0.25W J LEAD TOP |
938 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Square - 0.197" x 0.197" Face (5.00mm x 5.00mm) |
|
TSM4YJ502KR05TRIMMER 5K OHM 0.25W GW TOP ADJ |
689 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YJ202KR05TRIMMER 2K OHM 0.25W J LEAD TOP |
625 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
TSM4YL104KR05TRIMMER 100K OHM 0.25W GW TOP |
612 |
|
Datasheet |
TSM4 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
3059Y-1-103LFTRIMMER 10K OHM 1W PC PIN SIDE |
125 |
|
Datasheet |
Trimpot® 3059 - Sealed | Tube | Active | 10 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
3262W-1-104LFTRIMMER 100KOHM 0.25W PC PIN TOP |
130 |
|
Datasheet |
Trimpot® 3262 - Sealed | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm) |
|
3292W-1-503LFTRIMMER 50K OHM 0.5W PC PIN TOP |
731 |
|
Datasheet |
Trimpot® 3292 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3252W-1-103LFTRIMMER 10K OHM 0.75W PC PIN TOP |
124 |
|
Datasheet |
Trimpot® 3252 - Sealed | Tube | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3250W-1-102TRIMMER 1K OHM 1W PC PIN TOP ADJ |
233 |
|
Datasheet |
Trimpot® 3250 - Sealed | Tube | Active | 1 kOhms | 1W | ±5% | ±50ppm/°C | 25.0 | Top Adjustment | Wirewound | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
