Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT10LH01-223A2020-STRIMMER 22KOHM 0.15W PC PIN SIDE |
4,837 |
|
Datasheet |
PT10 | - | Active | 22 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10LV10-221A2020-STRIMMER 220 OHM 0.15W PC PIN TOP |
3,172 |
|
Datasheet |
PT10 | - | Active | 220 Ohms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
|
PT10LH01-472A2020-STRIMMER 4.7K OHM 0.15W PC PIN |
2,617 |
|
Datasheet |
PT10 | - | Active | 4.7 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10MV10-102A2020-STRIMMER 1K OHM 0.15W PC PIN TOP |
1,961 |
|
Datasheet |
PT10 | - | Active | 1 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
PT10MV10-103A2020-I-PM-STRIMMER 10K OHM 0.15W PC PIN TOP |
15,727 |
|
Datasheet |
PT10 | - | Active | 10 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
N6S25T0C-103-3030TRIMMER 10K OHM 0.1W PC PIN SIDE |
1,594 |
|
Datasheet |
N6 | Bulk | Active | 10 kOhms | 0.1W, 1/10W | ±30% | ±300ppm/°C | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.343" x 0.252" Face (8.70mm x 6.40mm) |
|

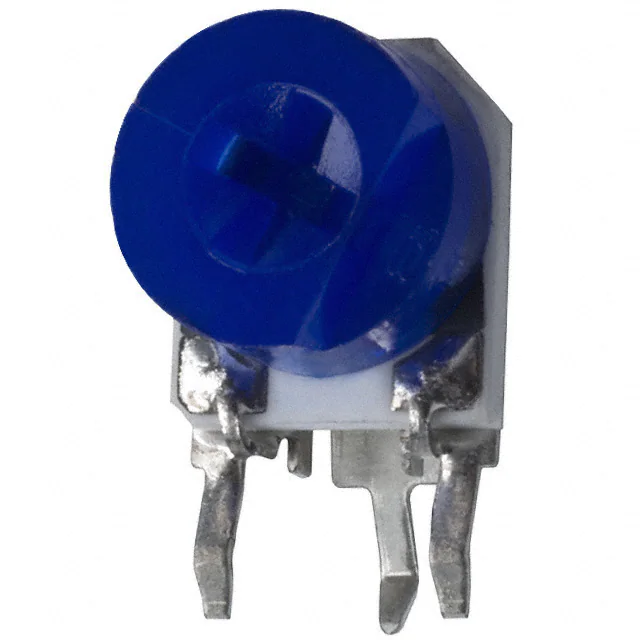

3306K-1-103TRIMMER 10K OHM 0.2W PC PIN SIDE |
72,154 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 10 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) |
|
TC42X-2-103ETRIMMER 10K OHM 0.1W J LEAD TOP |
20,205 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 10 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
TC42X-2-101ETRIMMER 100 OHM 0.1W J LEAD TOP |
19,169 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 100 Ohms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
TC42X-2-501ETRIMMER 500 OHM 0.1W J LEAD TOP |
11,754 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 500 Ohms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
TC42X-2-104ETRIMMER 100K OHM 0.1W J LEAD TOP |
11,676 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 100 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
PT10MV10-103A2020-STRIMMER 10K OHM 0.15W PC PIN TOP |
11,431 |
|
Datasheet |
PT10 | - | Active | 10 kOhms | 0.15W | ±20% | ±300ppm/°C | 1.0 | Top Adjustment | Carbon | Through Hole | PC Pins | Round - 0.406" Dia (10.30mm) |
|
|
TC42X-2-223ETRIMMER 22K OHM 0.1W J LEAD TOP |
11,324 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 22 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
TC42X-2-204ETRIMMER 200K OHM 0.1W J LEAD TOP |
9,442 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 200 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|
|
TC42X-2-102ETRIMMER 1K OHM 0.1W J LEAD TOP |
8,953 |
|
Datasheet |
Trimpot® TC42 - Open Frame | Tape & Reel (TR) | Active | 1 kOhms | 0.1W, 1/10W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm) |
|

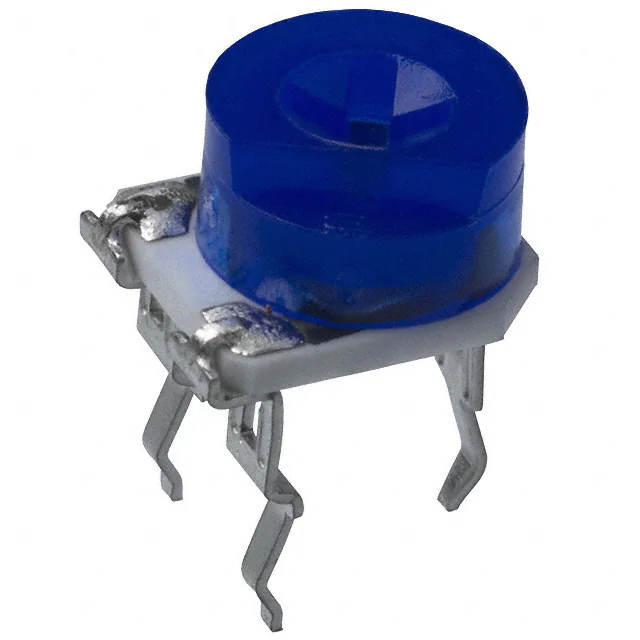

3306F-1-103TRIMMER 10K OHM 0.2W PC PIN TOP |
8,809 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 10 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) |
|
|
3306K-1-104TRIMMER 100KOHM 0.2W PC PIN SIDE |
6,531 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 100 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) |
|
|
3306F-1-502TRIMMER 5K OHM 0.2W PC PIN TOP |
6,252 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 5 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) |
|
|
3306F-1-204TRIMMER 200K OHM 0.2W PC PIN TOP |
5,811 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 200 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.319" x 0.268" Face (8.10mm x 6.80mm) |
|

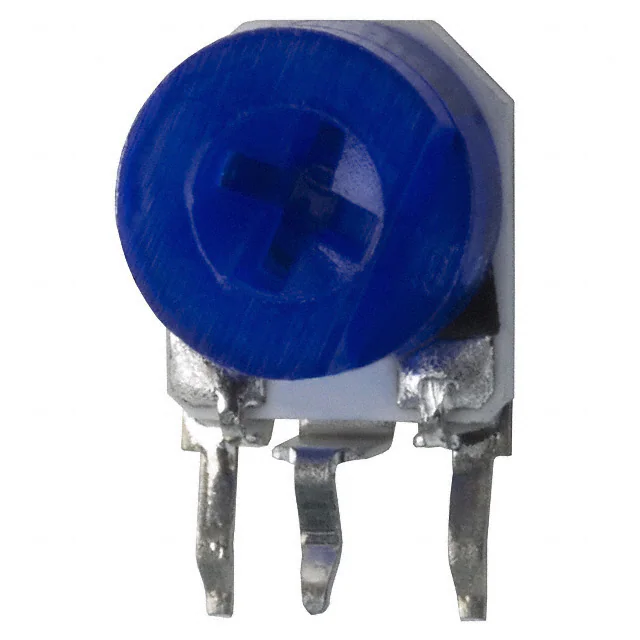

3306W-1-502TRIMMER 5K OHM 0.2W PC PIN SIDE |
5,643 |
|
Datasheet |
Trimpot® 3306 - Open Frame | Bulk | Active | 5 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm) |
