TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE91ATVS DIODE 77.8VWM 125VC DO15 |
3,909 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Obsolete | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
ESD218B102ELSE6327XTSA1TVS DIODE 24VWM 44.5VC TSSLP-2-4 |
3,539 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 24V (Max) | 24.3V | 44.5V | 1.5A (8/20µs) | 67W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-4 |
|
ATV02W120-HFTVS DIODE 12VWM 19.9VC SOD123 |
3,012 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 10.05A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
P6KE100AS_AY_00001TRANSIENT VOLTAGE SUPPRESSOR |
2,984 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-15 |
|
SMFJ18ATVS DIODE 18VWM 29.2VC SOD123FL, |
2,970 |
|
Datasheet |
SOD-123F, SMF | SMFJ | Tape & Reel (TR) | Active | - | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | SMF/SOD-123FL |
|
P4FL12A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,965 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|

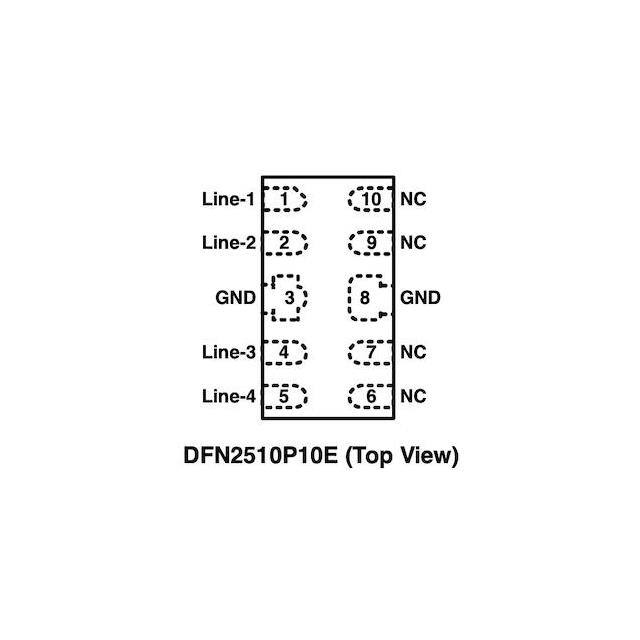

AZ1045-04FLOW CAP ESD HIGH SPEED 4-CH 5V |
2,950 |
|
Datasheet |
10-UFDFN | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | 12V (Typ) | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
P4HE5.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,940 |
|
Datasheet |
SOD-123H | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123HE |
|
|
P4HE13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,930 |
|
Datasheet |
SOD-123H | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123HE |
|
|
P6KE180AS_AY_00001TRANSIENT VOLTAGE SUPPRESSOR |
2,900 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-15 |
|
|
P4FL30A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,880 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
P4FL14A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,789 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|

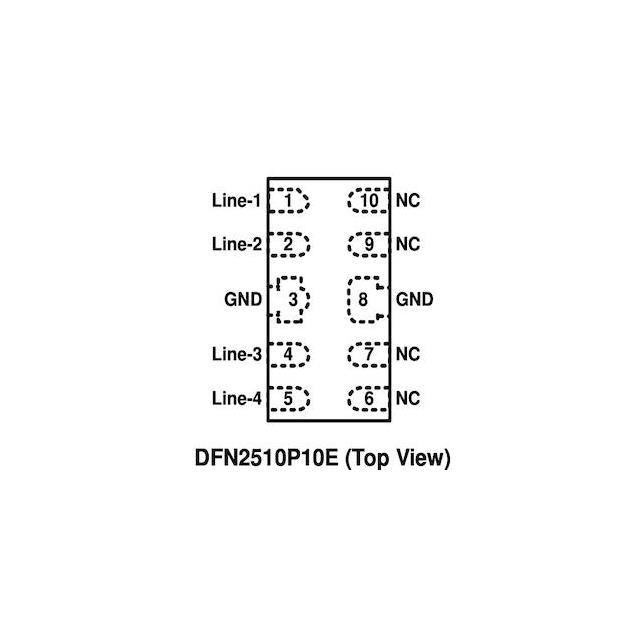

AZ1023-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,770 |
|
Datasheet |
10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | 11V (Typ) | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
PACDN042YB3RTVS DIODE 5.5VWM 8VC SC70-3 |
7,561 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
PJSOT05C-03_R1_00001STANDARD CAPACITANCE TVS ARRAY |
2,310 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 12.6V | 21A (8/20µs) | 250W | No | General Purpose | 250pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
P4FL15A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,805 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMBJ48CA-13TVS DIODE 48VWM 77.4VC SMB |
3,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD206B102ELE6327XTMA1TVS DIODE 5.5VWM 9.6VC TSLP-2-19 |
3,867 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5.5V (Max) | 6.1V | 9.6V (Typ) | 6A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-19 |
|
ESD207B102ELSE6327XTSA1TVS DIODE 3.3VWM 8.1VC TSSLP-2-3 |
2,652 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 3.65V | 8.1V | 8A (8/20µs) | - | No | General Purpose | 14pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
.jpg)
|
ESD11B5.0ST5GTVS DIODE 5VWM 10VC 2DSN |
7,660 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 10V | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DSN (0.60x0.30) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
