TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D5V0M2B3LP10-7TVS DIODE 5VWM 14VC DFN1010-3 |
1,184 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 28pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-3 |
|
BZA862AVL,115TVS DIODE 6.2VWM SOT353 |
7,959 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.2V | - | - | - | 6W | No | General Purpose | 200pF @ 1MHz | - | - | - | Surface Mount | SOT-353 |
|
IP4309CX9,135TVS DIODE 5.5VWM 9-CSP |
8,533 |
|
Datasheet |
9-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V | 6V | - | - | - | Yes | HDMI | - | -35°C ~ 85°C (TA) | - | - | Surface Mount | 9-CSP |
|
PJSD12CW_R1_00001SOD-323, TVS/ESD |
29,833 |
|
Datasheet |
SC-90, SOD-323F | PJSD05CW | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
GSECA5B003TVS, SNAPBACK ESD, SINGLE, BI-DI |
15,137 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 6V (Typ) | 10A (8/20µs) | 60W | No | DVI, Ethernet, HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | ECP0201 |
|
|
PJSD24CW_R1_00001SOD-323, TVS/ESD |
14,225 |
|
Datasheet |
SC-90, SOD-323F | PJSD05CW | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.6V | 42V | 4A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

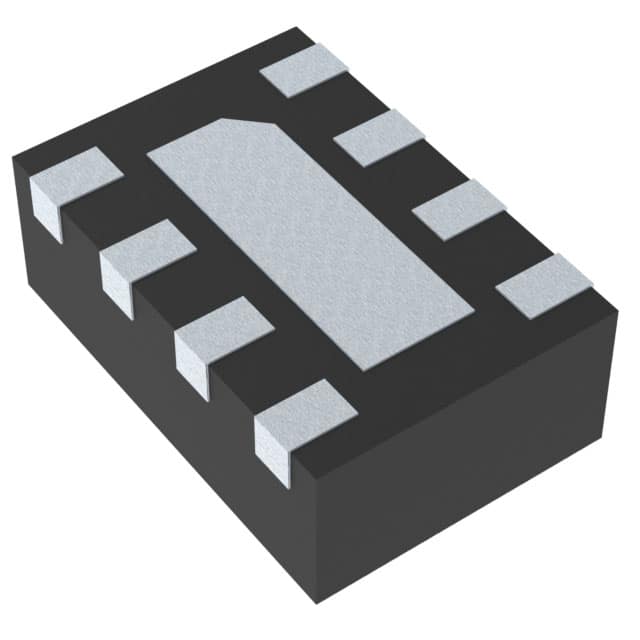

CM1241-04D4TVS DIODE 8.2VWM 9.64VC 8-WDFN |
8,786 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 8.2V | - | 9.64V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WDFN (1.7x1.35) |
|
BZA968AVL,115TVS DIODE 6.8VWM SOT665 |
8,334 |
|
Datasheet |
SOT-665 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.8V | - | - | - | 6W | No | General Purpose | 16pF @ 1MHz | - | - | - | Surface Mount | SOT-665 |
|
|
SZESD7571MXWT5GTVS DIODE 5.3VWM 15VC 2X2DFNW |
11,307 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 7V | 15V | 1A | - | No | USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 2-X2DFNW (1x0.6) |
|
|
GSEC12B006TVS, ESD, SINGLE, BI-DIR, LOW CA |
9,062 |
|
Datasheet |
SC-76, SOD-323 | GSECxB006 | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.5V | 20V | 12A (8/20µs) | 550W | No | Ethernet, USB | 0.6pF @ 1MHz | -45°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P4FL5.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
8,760 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
NSPU3071N2T5GUNI-DIRECTIONAL SURGE PRO |
8,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SMC30AT3GTVS DIODE 30VWM 48.4VC SMC |
7,498 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMBJE120CATVS DIODE 120VWM 193VC SMB |
5,985 |
|
Datasheet |
DO-214AA, SMB | SMBJE | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 133V | 193V | 3.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P4SMA170A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,390 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 145V | 162V | 234V | 1.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
PJSD08W-AU_R1_000A1SINGLE LINE TVS DIODE FOR ESD PR |
5,000 |
|
Datasheet |
SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 8.5V | 13.4V | 1A (8/20µs) | 350W | No | - | 150pF @ 1MHz | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
1.5SMC27AT3TVS DIODE 23.1VWM 37.5VC SMC |
5,313 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 40A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SZESD7272LT1GTVS DIODE 24VWM 40VC SOT23-3 |
4,649 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 24V (Max) | 27V | 40V | 16A | - | No | - | 2pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
P4FL36A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
4,314 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 6.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
P4FL20A_R1_00001SOD-123FL, TVS |
4,185 |
|
Datasheet |
SOD-123F | P4FL20A | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
