TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

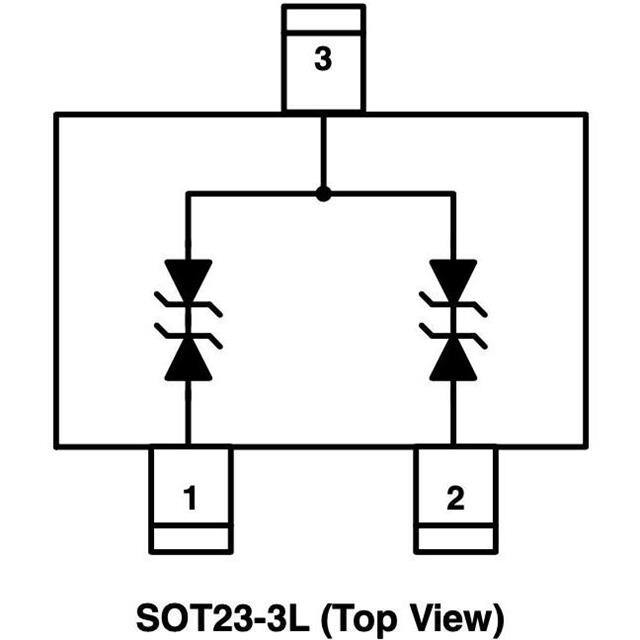

AZ5125-02STVS DEVICE 2-CHANNEL 5V |
2,990 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Strip | Active | Zener | - | 2 | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-23-3 |
|
AZ4012-01GTVS DEVICE HIGH VOLTAGE 1-CH 12V |
2,980 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 12V (Max) | 14.4V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ3005-01GTVS SURGE PROTECTOR 1-CH 5V |
2,970 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ4514-01FTVS DEVICE HIGH VOLTAGE 1-CH 14V |
2,950 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 14V (Max) | 15.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1610P2E |
|

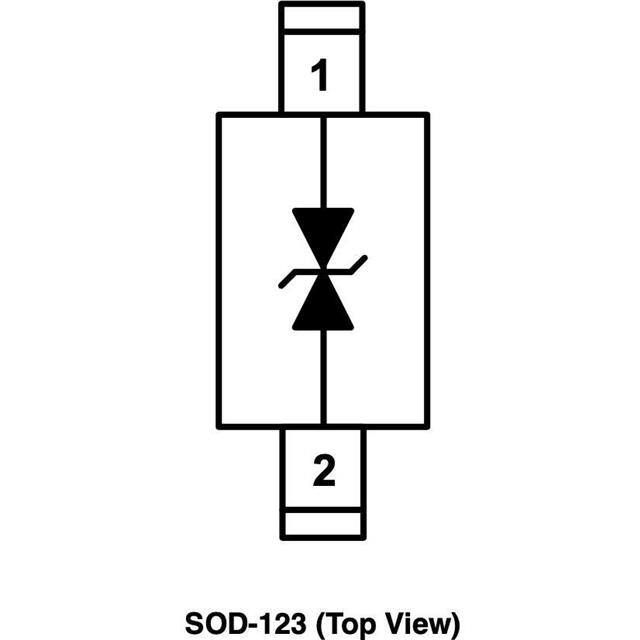

AZ4212-01GTVS DEVICE HIGH VOLTAGE 1-CH 12V |
2,950 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | - | 1 | 12V (Max) | 13.7V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ5313-02FTVS DEVICE 2-CHANNEL 3.3V |
2,950 |
|
Datasheet |
3-UDFN | - | Strip | Active | Zener | 2 | - | 3.3V (Max) | 4.5V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P3X |
|

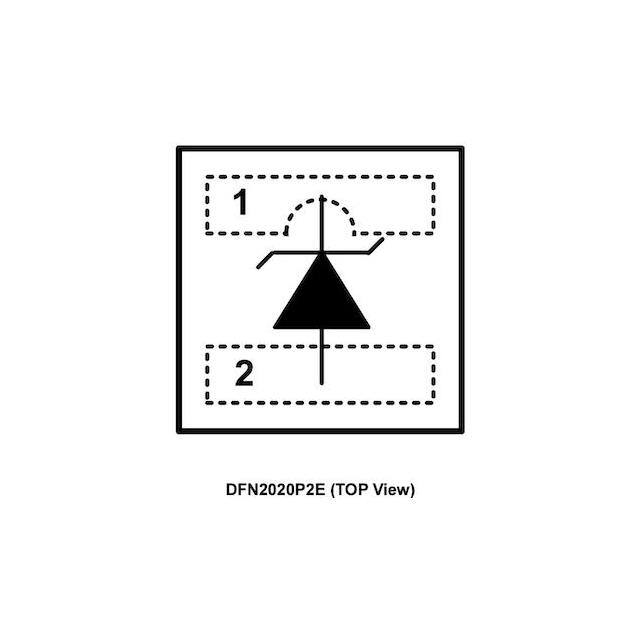

AZ4020-01FTVS DEVICE HIGH VOLTAGE 1-CH 20V |
2,930 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 20V (Max) | 22.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2020P2E |
|

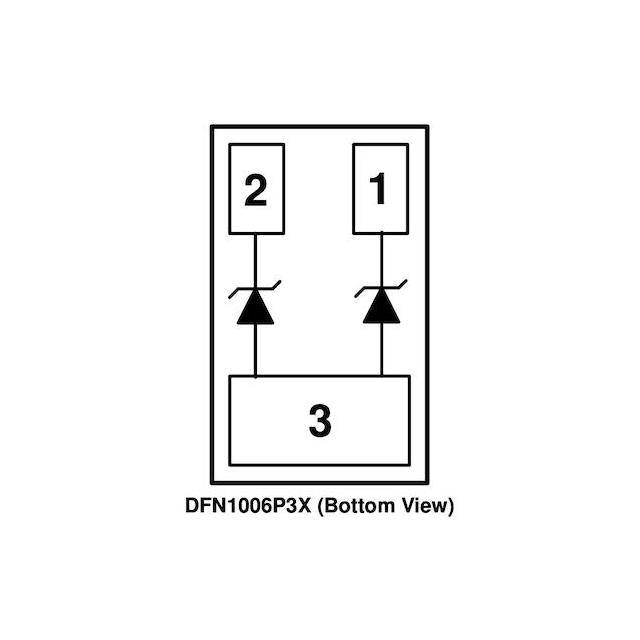

AZ5515-02FTVS DEVICE 2-CHANNEL 5V |
2,910 |
|
Datasheet |
3-UDFN | - | Strip | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P3X |
|
AZ4C36-01BTVS DEVICE 1-CHANNEL 36V |
2,900 |
|
Datasheet |
2-XFBGA, CSPBGA | - | Strip | Active | Zener | - | 1 | 36V (Max) | 40V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | CSP0402P2U |
|
AZ4024-01LTVS DEVICE HIGH VOLTAGE 1-CH 24V |
2,900 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AZ2225-01LTVS DEVICE LOW SPEED 1-CH 5V |
2,800 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 5V (Max) | 6.1V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AZ4615-01LTVS DEVICE HIGH VOLTAGE 1-CH 15V |
2,770 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 15V (Max) | 17V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AQHV15-01ETGTVS DIODE 15VWM 28VC SOD882 |
2,756 |
|
Datasheet |
SOD-882 | AQHV | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 28V | 5A (8/20µs) | 200W | No | - | 46pF @ 1MHz | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
AZ4524-01FTVS DEVICE HIGH VOLTAGE 1-CH 24V |
2,750 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
AZ6118-01FTVS DEVICE 1-CHANNEL 1.8V |
2,610 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 1.8V (Max) | 2.2V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

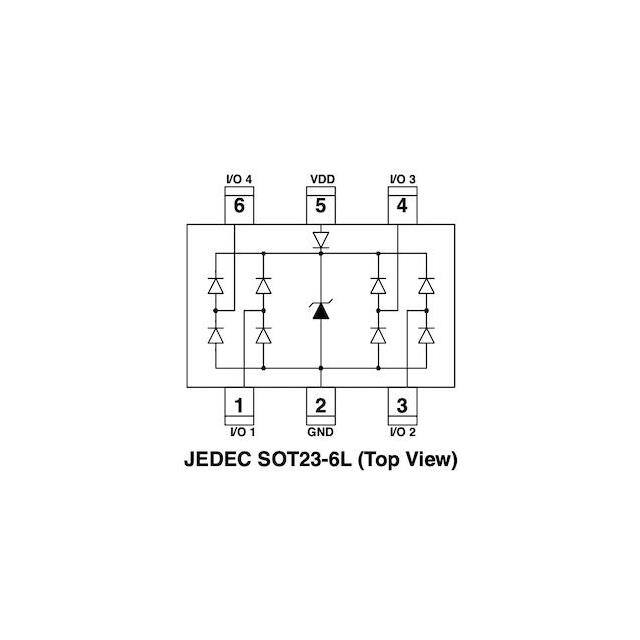

AZC199-04SLOW CAP ESD PROTECTION 4-CH 5V |
2,460 |
|
Datasheet |
SOT-23-6 | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-23-6 |
|
AZ5123-01HTVS DEVICE 1-CHANNEL 3.3V |
2,350 |
|
Datasheet |
SC-79, SOD-523 | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-523 |
|
P6KE51CATVS DIODE 43.6VWM 70.1VC DO15 |
2,155 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P4SMA9.1CA-E3/61TVS DIODE 7.78VWM 13.4VC DO214AC |
1,800 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 29.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PGSMAJ15A R3GTVS DIODE 15VWM 24.4VC DO214AC |
1,619 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
