Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

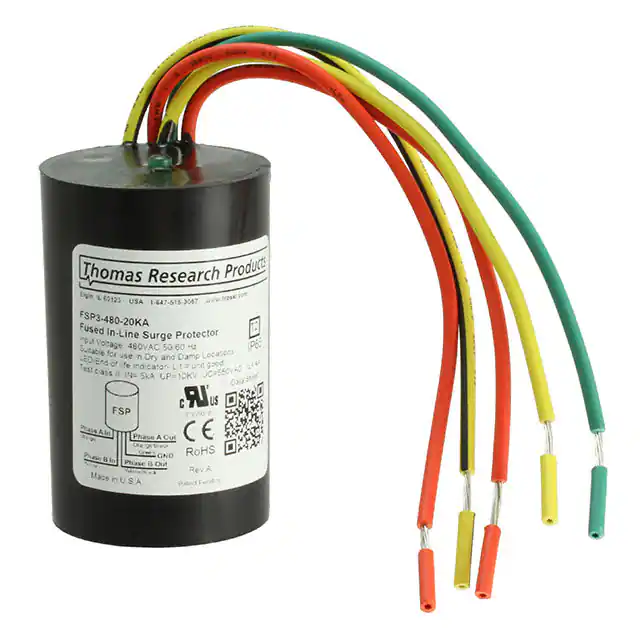

FSP3-480-20KASPD 550VAC/745VDC MCOV 3 POLE |
69 |
|
Datasheet |
FSP3 | Box | Active | - | - | 3 | 550VAC, 745VDC | 20 kA | 20 kA | - | - | - | -40°C ~ 85°C | - | Free Hanging | cURus, UL |
|

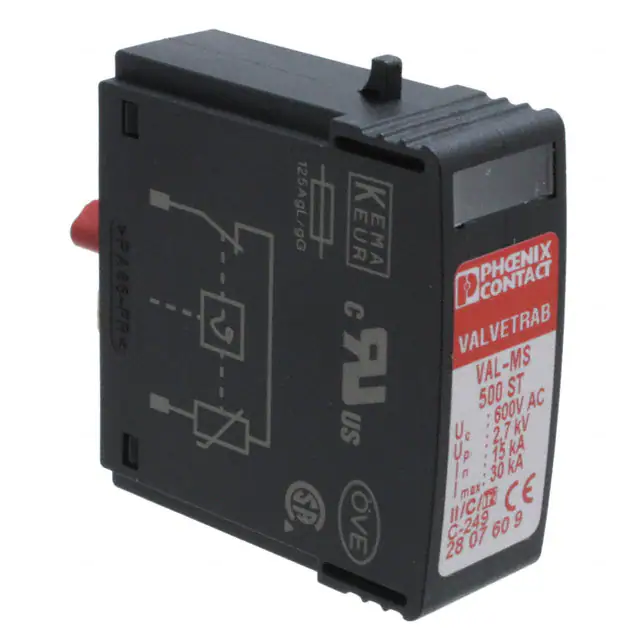

2807609SPD TYPE 2 600VAC MCOV 2 POLE |
20 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 2 | 600VAC | 15 kA | 30 kA | 25 kA | - | 2.7 kV | -40°C ~ 80°C | - | Base Mount | CB, CCA, CSA, cUL, cULus, GL, GOST, KEMA, OVE, UL |
|
2906713SPD 21VAC/30VDC MCOV 1 POLE |
20 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 20 kA | - | - | 750 V | -40°C ~ 70°C | - | DIN Rail | ATEX, CCC, cCSAus, CSA, CSAus, cUL, EAC, UL |
|
2906726SPD 21VAC/30VDC MCOV 1 POLE |
12 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 750 V | -40°C ~ 85°C | - | DIN Rail | - |
|
2910348SPD TYPE 2 175VAC MCOV 1 POLE |
7 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 175VAC | 20 kA | 40 kA | 25 kA | 700 V | 900 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2910361SPD TYPE 2 385VAC MCOV 1 POLE |
7 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 1.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
2906820SPD 30VDC MCOV 1 POLE |
18 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 30VDC | 5 kA | 10 kA | - | - | 1.4 kV | -40°C ~ 70°C | - | DIN Rail | ATEX, CCC, cCSAus, CSA, CSAus, cUL, cULus, UL |
|

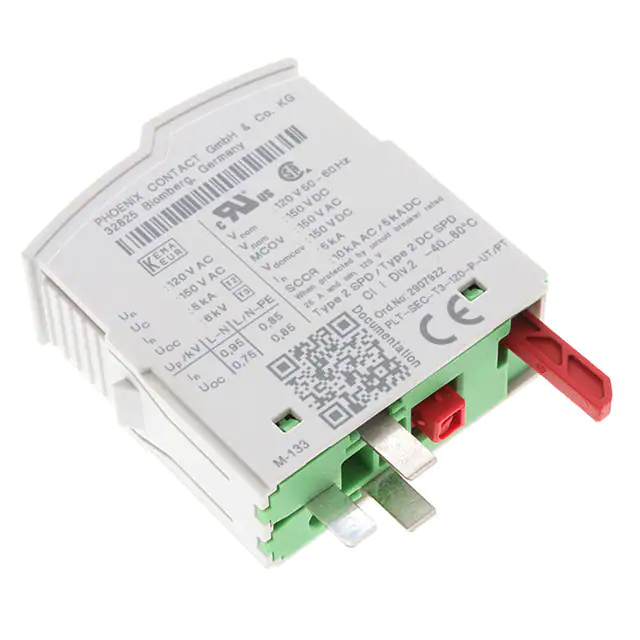

2907922SPD TYP2/TYP3 150VAC/150VDC MCOV |
18 |
|
Datasheet |
PLT-SEC | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 150VAC, 150VDC | 5 kA | 10 kA | 10 kA | 900 V | 950 V | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUL, cUR, cURus, EAC, UR |
|
|
2907923SPD TYP2/TYP3 264VAC/240VDC MCOV |
11 |
|
Datasheet |
PLT-SEC | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 264VAC, 240VDC | 5 kA | 10 kA | 10 kA | - | 1.4 kV | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUL, cUR, cURus, EAC, UR |
|

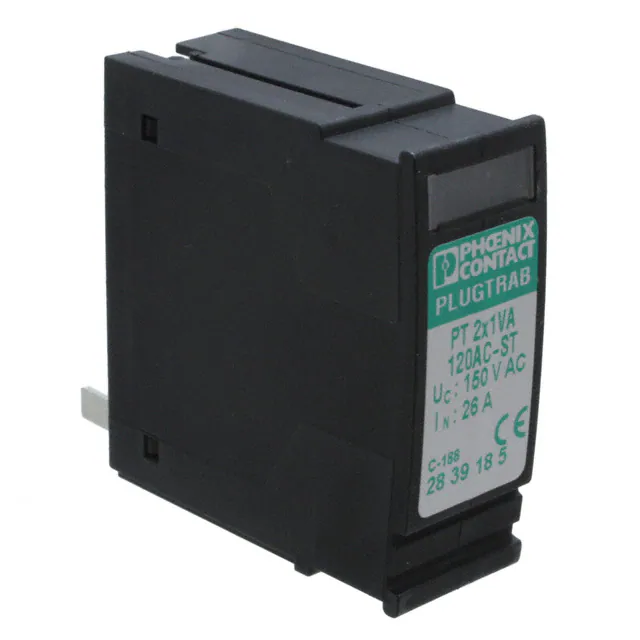

2839185SPD 150VAC/150VDC MCOV 1 POLE |
8 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 150VAC, 150VDC | 2.5 kA | 5 kA | - | - | 550 V | -40°C ~ 85°C | - | Base Mount | EAC, UL |
|
SPD2-300-1P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
20 |
|
Datasheet |
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
|
BSPMA1240S2GRSPD TYPE 1 240VAC MCOV 1 POLE |
23 |
|
Datasheet |
BSPMA | Bulk | Active | Type 1 | Base + Module | 1 | 240VAC | - | - | 200 kA | - | - | - | Remote Signaling Contacts | DIN Rail | CSA, UL |
|

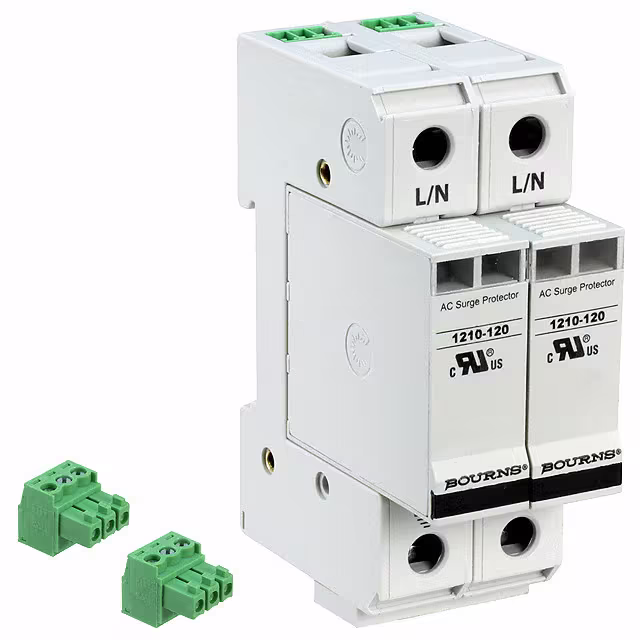

1210-2S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
20 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 2 | 150VAC | 20 kA | 100 kA | 100 kA | 600 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
2910369SPD TYPE 1 275VAC MCOV 1 POLE |
2 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 275VAC | 20 kA | 40 kA | 25 kA | 1.8 kV | 1.35 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
2905337SPD TYPE 2 350VAC MCOV 1 POLE |
3 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 350VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
M9L53480SPD TYPE 1 1.1KVAC MCOV 3 POLE |
2 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 3 | 1.1kVAC | 10 kA | 75 kA | 200 kA | - | 3 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
SPD2-300-4P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
22 |
|
Datasheet |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
|
2905466SPD TYPE 1/TYPE 2 350VAC MCOV |
6 |
|
Datasheet |
FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | 100 kA | 25 kA | 1.5 kV | 2.2 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
SPD2-300-3P1-RSPD TYPE 1/TYPE 2 305VAC MCOV |
2 |
|
Datasheet |
SPD2 3P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 305VAC | 40 kA | 65 kA | 150 kA | 1 kV | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
LSP05GI277PSPD TYPE 2/TYPE 3 320VAC MCOV |
33 |
|
Datasheet |
LSP | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | 2.4 kV | -40°C ~ 85°C | Thermally Protected | Screw | CE, cURus, KEMA-KEUR, UL |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
