Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

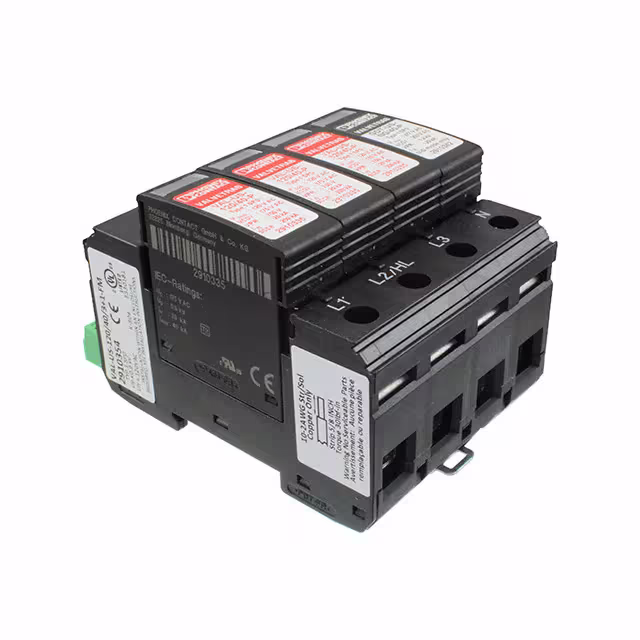

2910354SPD TYPE 1 350VAC MCOV 4 POLE |
9 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 4 | 350VAC | 20 kA | - | 25 kA | 1.8 kV | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
SPD2-350-3P0-RSPD TYPE 1/TYPE 2 350VAC MCOV |
16 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-480-3P0-RSPD TYPE 1/TYPE 2 480VAC MCOV |
13 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 480VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-550-3P0-RSPD TYPE 1/TYPE 2 550VAC MCOV |
12 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 550VAC | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
SPD2-300-1P1-RSPD TYPE 1/TYPE 2 305VAC MCOV |
7 |
|
Datasheet |
SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 305VAC | 40 kA | 65 kA | 150 kA | 1 kV | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
SPD2-480-4P0-RSPD TYPE 1/TYPE 2 480VAC MCOV |
3 |
|
Datasheet |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 480VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
LSP05G240PSPD TYPE 2 275VAC MCOV 1 POLE |
67 |
|
Datasheet |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | - | -45°C ~ 85°C | Thermally Protected | Screw | cURus, UL |
|
LSP05120PSPD TYPE 2/TYPE 4 150VAC MCOV |
47 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 150VAC | 5 kA | 10 kA | - | - | 800 V | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
SSP3-277SPD TYPE 5 320VAC/420VDC MCOV |
47 |
|
Datasheet |
SSP3 | Bulk | Active | Type 5 | Module Only | 1 | 320VAC, 420VDC | 5 kA | 20 kA | - | - | - | -35°C ~ 85°C | - | - | cURus, UL |
|
SPD-20-240PSPD 300VAC MCOV 2 POLE |
60 |
|
Datasheet |
SPD-20 | Box | Active | - | - | 2 | 300VAC | 5 kA | 20 kA | 5 kA | 1.5 kV | 1.5 kV | -40°C ~ 70°C | - | Screw | CE, cURus, UL |
|
|
LSP10120PSPD TYPE 2 150VAC MCOV 1 POLE |
90 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 150VAC | 10 kA | 20 kA | - | - | 900 V | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
LSP10480LLSSPD TYPE 2 510VAC MCOV 1 POLE |
34 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 510VAC | 10 kA | 20 kA | - | - | 2.1 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
2906848SPD 21VAC/30VDC MCOV 1 POLE |
44 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | 150 A | - | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | - |
|
2906834SPD 21VAC/30VDC MCOV 1 POLE |
29 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 150 A | - | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | CSA, UL |
|
BSP3-480SPD 550VAC/715VDC MCOV 3 POLE |
14 |
|
Datasheet |
BSP3 | Box | Active | - | Module Only | 3 | 550VAC, 715VDC | 10 kA | 10 kA | - | - | - | - | - | Free Hanging | cURus, UL |
|
|
LSP10240SSPD TYPE 2 275VAC MCOV 1 POLE |
65 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
2906837SPD 21VAC/30VDC MCOV 1 POLE |
74 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | - | - | - | - | 160 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
2906844SPD 130VAC MCOV 1 POLE |
40 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 130VAC | 5 kA | - | - | - | 1 kV | -40°C ~ 85°C | - | DIN Rail | CSA, UL |
|
|
ICL-16RSPD 264VAC MCOV 1 POLE |
16 |
|
Datasheet |
ICL | Box | Active | - | Module Only | 1 | 264VAC | - | - | - | - | - | -30°C ~ 70°C | Thermally Protected | DIN Rail | CE, EAC |
|
SPD-20HP-277SSPD TYPE 2/TYPE 3 320VAC MCOV |
14 |
|
Datasheet |
SPD-20HP | Box | Active | Type 2, Type 3 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 3.8 kV | -40°C ~ 75°C | Thermally Protected | Chassis Mount | CE, cURus, KEMA-KEUR |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
