Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2908684SPD 150VAC/150VDC MCOV 1 POLE |
12 |
|
Datasheet |
BXT-4XP | Box | Active | - | Module Only | 1 | 150VAC, 150VDC | 5 kA | 10 kA | 10 kA | 1 kV | - | -40°C ~ 80°C | - | Wall Mount | cUL, UL |
|
STV25K-24SSPD TYPE 4 275VAC MCOV 1 POLE |
10 |
|
Datasheet |
STV25K | Bulk | Active | Type 4 | Module Only | 1 | 275VAC | - | - | - | 900 V | - | -40°C ~ 60°C | Visual Life Indicator | DIN Rail | cURus |
|
HFNF120IESE005SPD 150VAC MCOV 1 POLE |
4 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 150VAC | 3 kA | - | - | - | - | - | - | DIN Rail | - |
|
|
HFNF120IESE020SPD 150VAC MCOV 1 POLE |
2 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 150VAC | 3 kA | - | - | - | - | - | - | DIN Rail | - |
|
LSP05480LLPSPD TYPE 2/TYPE 4 510VAC MCOV |
79 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 510VAC | 5 kA | 10 kA | - | - | 1.9 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
LSP05347PMSPD TYPE 2/TYPE 4 420VAC MCOV |
80 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 420VAC | 5 kA | 10 kA | - | - | 1.7 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
LSP10GI277PSPD TYPE 2 320VAC MCOV 1 POLE |
48 |
|
Datasheet |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -40°C ~ 85°C | Thermally Protected | Screw | UL |
|
LST2757VL2NT1SPD TYP 1/TYP 2/TYP4 275VAC MCOV |
90 |
|
Datasheet |
LST | Tray | Active | Type 1, Type 2, Type 4 | Module Only | 1 | 275VAC | 20 kA | - | 200 kA | 900 V | - | -40°C ~ 85°C | Thermally Protected | Through Hole | UL |
|
LSP10GIHP480SSPD TYPE 2/TYPE 3 510VAC MCOV |
44 |
|
Datasheet |
LSP | Bulk | Active | Type 2, Type 3 | Module Only | 1 | 510VAC | 10 kA | 20 kA | - | - | - | -45°C ~ 75°C | Thermally Protected | Screw | cURus, KEMA-KEUR, UL |
|
1250-1S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
4 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 1 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1250-1S-480SPD TYPE 2/TYPE 4 550VAC MCOV |
2 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 1 | 550VAC | 20 kA | 50 kA | 100 kA | 1.8 kV | 2.5 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
2907880SPD TYPE 2 450VDC MCOV 1 POLE |
6 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Module Only | 1 | 450VDC | 20 kA | 40 kA | 6 kA | - | 1.5 kV | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
|
2910341SPD TYPE 2 750VAC MCOV 1 POLE |
2 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Module Only | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 2.5 kV | 2.9 kV | -40°C ~ 80°C | - | Base Mount | cUL, UL |
|

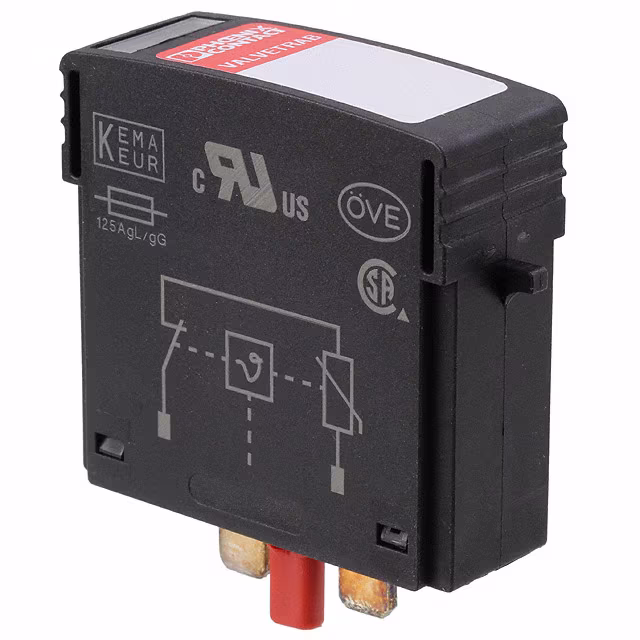

2807573SPD TYP2 75VAC/100VDC MCOV 1POLE |
2 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 1 | 75VAC, 100VDC | 15 kA | 40 kA | 25 kA | - | 550 V | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUR, cURus, EAC, UR |
|
2910343SPD TYPE 2 100VDC MCOV 1 POLE |
7 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 100VDC | 15 kA | 40 kA | 5 kA | - | 550 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2856595SPD TYPE 2 350VAC MCOV 1 POLE |
3 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 1 | 350VAC | 10 kA | 20 kA | 25 kA | - | 1.5 kV | -40°C ~ 80°C | - | Base Mount | CB, CCA, CSA, cUL, cULus, EAC, KEMA-KEUR, OVE, UL |
|

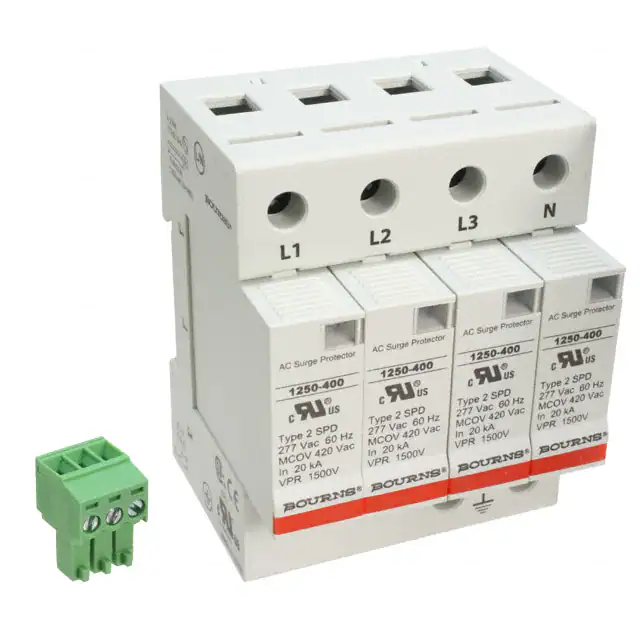

1250-4S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
20 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 4 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
2905341SPD TYPE 2 350VAC MCOV 1 POLE |
7 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 350VAC | 20 kA | 40 kA | 50 kA | - | 1.9 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
1220-10-I2-277M1SPD TYPE 2/TYPE 4 320VAC MCOV |
6 |
|
Datasheet |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 320VAC | 10 kA | 25 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
|
|
1220-10-I1-480M1SPD TYPE 2/TYPE 4 550VAC MCOV |
10 |
|
Datasheet |
1220 | Box | Active | Type 2, Type 4 | Module Only | 1 | 550VAC | 10 kA | 22 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | Surface Mount | cURus |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
