Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDN-B240-3DSPD TYPE 1 275V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-B | Bulk | Active | Type 1 | Module Only | 1 | 275V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|

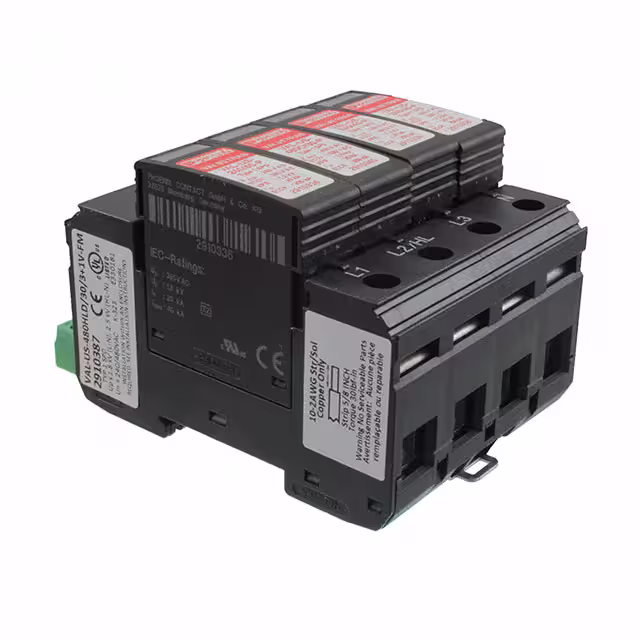

2910387SPD TYPE 1 750VAC MCOV 1 POLE |
3 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 3.5 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
1260-4SMG-120SPD 150VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4SMG-400SPD 440VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4SMG-230SPD 275VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SPDN-A120-2SSPD TYPE 2 180V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 180V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|

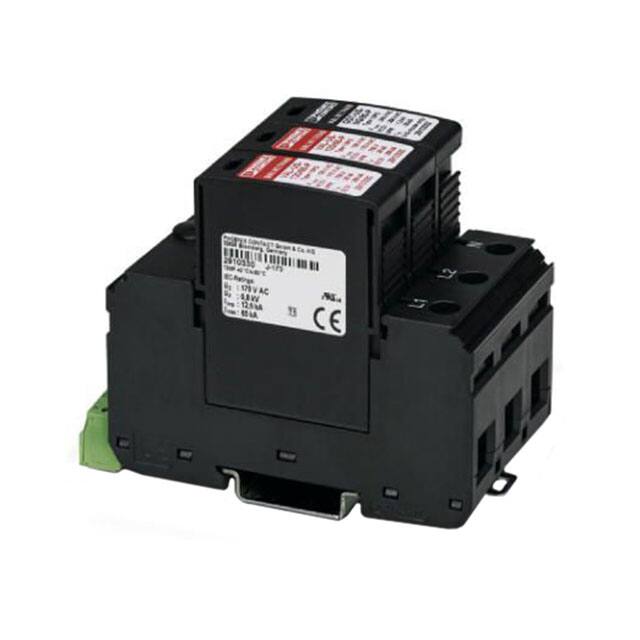

2910358SPD TYPE 1 264VAC MCOV 1 POLE |
3 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 264VAC | 50 kA | - | 25 kA | 1.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
2591460000SPD TYPE 1/TYPE 2 300VAC MCOV |
3 |
|
Datasheet |
- | Box | Active | Type 1, Type 2 | Base + Module | 4 | 300VAC | 50 kA | 100 kA | 150 kA | - | - | -40°C ~ 85°C | - | DIN Rail | CE, cURus, VDE |
|
|
2801160SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
3 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 3.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, EAC, UR |
|
|
1260-4NSMG-230SPD 275VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NSMG-120SPD 150VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800189SPD TYPE 1/TYPE 2 335VAC MCOV |
3 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 335VAC | 12.5 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
2801161SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
3 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 3.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
5603514SPD 150VAC MCOV 1 POLE |
24 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 150VAC | - | 10 kA | - | - | - | -40°C ~ 85°C | - | - | - |
|
|
1260-4SMG-480SPD 600VAC MCOV 1 POLE |
10 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2905415SPD TYPE 1/TYPE 2 350VAC MCOV |
6 |
|
Datasheet |
FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | 50 kA | 50 kA | 1.5 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
SPDN-A120-3YSPD TYPE 2 150V MCOV 1 POLE |
3 |
|
Datasheet |
SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 150V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A240-3DSPD TYPE 2 275V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 275V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A480-3DSPD TYPE 2 550V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 550V | 20 kA | 130 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A277-3YSPD TYPE 2 350V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 350V | 20 kA | 130 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
