Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1270-4S-400SPD TYPE 1/TYPE 2 440VAC MCOV |
5 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 440VAC | 25 kA | 65 kA | 50 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2736350000SPD TYPE 2 300VAC MCOV 1 POLE |
10 |
|
Datasheet |
- | Bulk | Active | Type 2 | - | 1 | 300VAC | 40 kA | 65 kA | 150 kA | 1 kV | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
1430-PV-1000-YSPD TYPE 1/TYPE 2 1.12KVDC MCOV |
10 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 1.12kVDC | 25 kA | 80 kA | 25 kA | - | 3.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-800-YSPD TYPE 1/TYPE 2 920VDC MCOV |
3 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 920VDC | 25 kA | 80 kA | 25 kA | - | 3 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1250A-2S-600SPD TYP 2/TYP 4 690V MCOV 2 POLE |
10 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 690V | 20 kA | 40 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

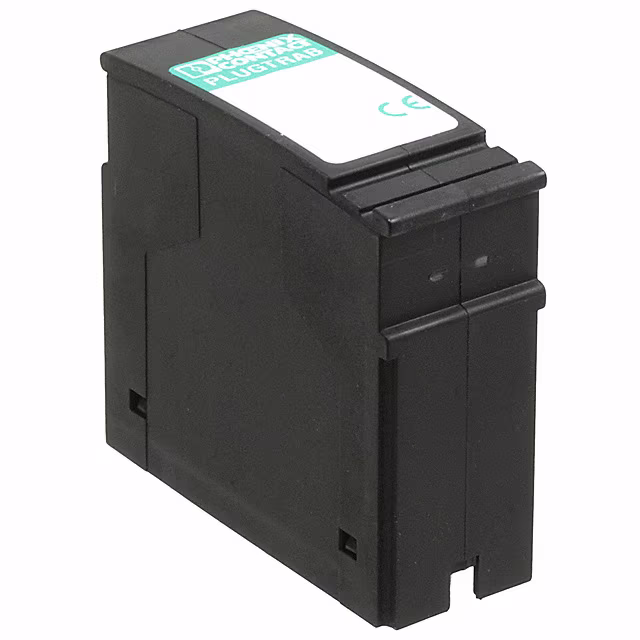

2856058SPD 28VAC/40VDC MCOV 1 POLE |
4 |
|
Datasheet |
- | Bulk | Active | - | Base + Module | 1 | 28VAC, 40VDC | 10 kA | 10 kA | - | - | 80 V | -40°C ~ 85°C | - | DIN Rail | CCC, cUL, EAC, UKCA, UL |
|
|
2905641SPD TYPE 1/TYPE 2 1.5KVDC MCOV |
2 |
|
Datasheet |
VAL | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.5kVDC | 20 kA | 40 kA | - | - | 4.5 kV | -40°C ~ 80°C | - | DIN Rail | CB |
|
|
1430-PV-1500-YSPD TYPE 1/TYPE 2 1.5KVDC MCOV |
10 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 1.5kVDC | 25 kA | 80 kA | 25 kA | - | 4.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPDN-D120-1PSPD TYPE 1 180V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 180V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-D240-1PSPD TYPE 1 350V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
1260-2NSMG-230SPD 275VAC MCOV 1 POLE |
9 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-400SPD TYP 2/TYP 4 420V MCOV 3 POLE |
7 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 420V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1420A-PV-1500-YSPD TYPE 2/TYPE 4 1.5KV MCOV |
9 |
|
Datasheet |
1420A | Box | Active | Type 2, Type 4 | Base + Module | - | 1.5kV | 20 kA | 50 kA | 50 kA | 4 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800786SPD 10VAC/15VDC MCOV 1 POLE |
2 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 145 V | -40°C ~ 70°C | - | DIN Rail | UL |
|

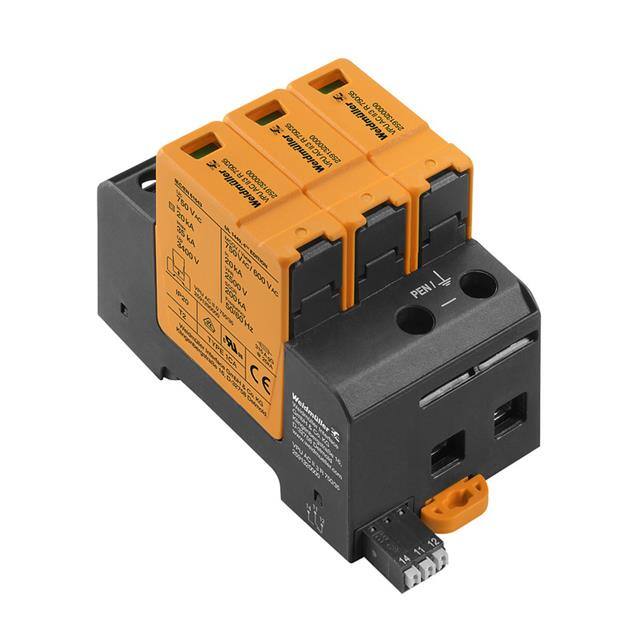

2591320000SPD TYPE 1 750VAC MCOV 3 POLE |
2 |
|
Datasheet |
VPU | Bulk | Active | Type 1 | Base + Module | 3 | 750VAC | 20 kA | 35 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, EAC, VDE |
|
|
1270-4S-480SPD TYPE 1/TYPE 2 600VAC MCOV |
5 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 600VAC | 25 kA | 65 kA | 50 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2800995SPD 10VAC/15VDC MCOV 1 POLE |
3 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 900 V | -40°C ~ 70°C | - | DIN Rail | UL |
|
|
2801288SPD 10VAC/15VDC MCOV 1 POLE |
2 |
|
Datasheet |
PT | Bulk | Active | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 145 V | -40°C ~ 70°C | - | DIN Rail | EAC, UL |
|
|
1270-4NS-230SPD TYPE 1/TYPE 2 275VAC MCOV |
5 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 4 | 275VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
SPDN-D240-2SSPD TYPE 1 350V MCOV 1 POLE |
2 |
|
Datasheet |
SPDN-D | Bulk | Active | Type 1 | Module Only | 1 | 350V | 20 kA | 50 kA | 200 kA | 2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
