Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A227P32Y5ZQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A327P31DCQSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A331P31YZBSWITCH TOGGLE 3PDT 0.5VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
1520228-7SWITCH TOGGLE DPST |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | - | - | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
IL256-63SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5664THCDBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2NT101-7SWITCH TOGGLE DPDT 10A 125V |
0 |
|
- |
NT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 25.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
632NT91-6SWITCH TOGGLE DPST-NO 10A 125V |
0 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
632NT91-2SWITCH TOGGLE DPST 15A 125V |
0 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

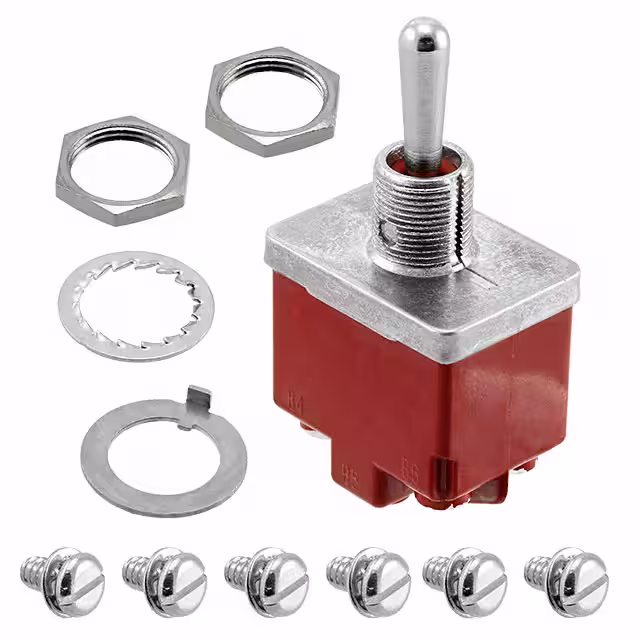

CT44101N000SWITCH TOGGLE SP3T 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SP3T | On-On-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
A223T1TWZGSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A427S1YZQSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT233M1D9V91GSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
WT | Bulk | Active | Through Hole | SP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
32NT391-51-A01SWITCH TOGGLE DPDT 10A 125V |
0 |
|
- |
NT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 125 V | - | Flatted | 29.21mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
2NT91-7-NHSEALED OI SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A423S1YZQPSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
S821/C-UL-AT401SSWITCH TOGGLE DPST 30A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S821-AT401SSWITCH TOGGLE DPST 30A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S821/CUL-AT401SSWITCH TOGGLE DPST 30A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S821/U-AT401SSWITCH TOGGLE DPST 30A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
