Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STM2EB-58SWITCH TOGGLE DPDT 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | Mom-On-Off | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
A221K22KCGSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223K12KV60GSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A323M1D9AQSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A323M1D9AV2BSWITCH TOGGLE 3PDT 0.5VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

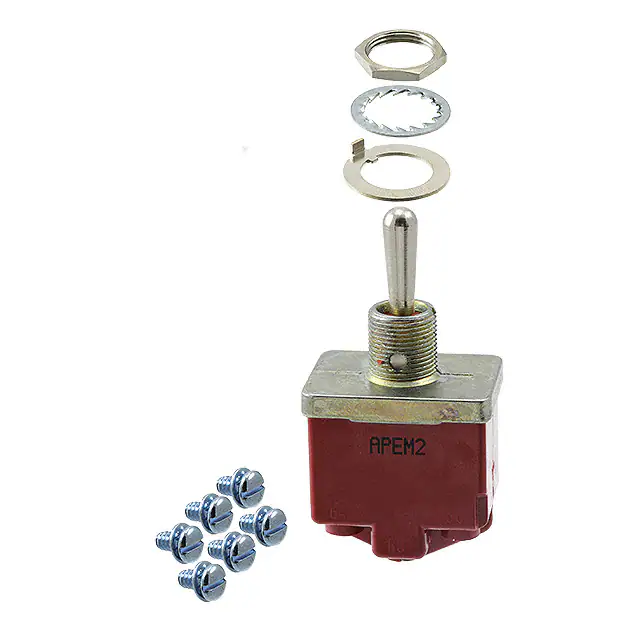

CT44301N000SWITCH TOGGLE SP3T 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
IM256-78SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5649MA27TOGGLE SWITCH 5000 MINIATURE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A131L01D9AV2QSWITCH TOGGLE SPDT 6A 28V |
0 |
|
- |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | - |
|
|
5644MTH1RCDBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
TT23K2TSWITCH TOGGLE DPST 3A 125V |
0 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | DPST | On-Off | 3A (AC/DC) | 125 V | 28 V | Standard Round | 7.52mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | - | -30°C ~ 85°C |
|
|
5246WA2VX386TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5446WA2VX386TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
21246NATOGGLE SWITCH 21000N PCB MOUNT |
0 |
|
- |
21000N | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5656AB2VSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.75mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
646H/22VSWITCH TOGGLE DPDT 15A 250V |
0 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 250 V | - | Locking Lever | 19.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|

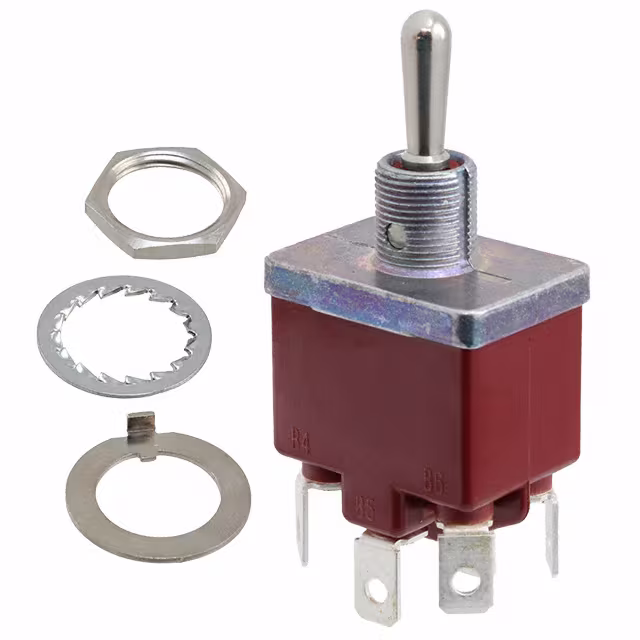

CT47021N020SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

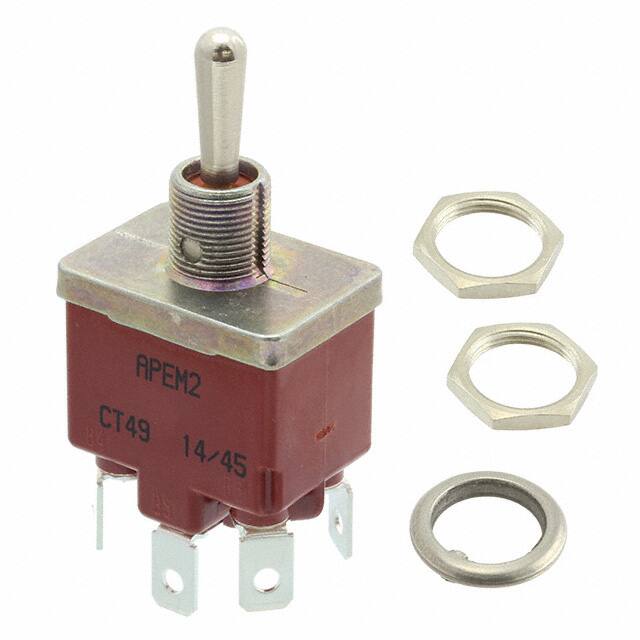

CT49021N002SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
IL254-NBL3SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5246YCDGBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
