Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A223P32YAQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
STE2E1-58SWITCH TOGGLE DP3T 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DP3T | On-On-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STE2E1-78SWITCH TOGGLE DP3T 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DP3T | On-On-On | 16A (DC) | - | 24 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STE2E4-58SWITCH TOGGLE DP3T 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DP3T | On-On-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
631H/2TKLUXETOGGLE SWITCH 600H HIGH POWER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK205-32SWITCH TOGGLE DPST 20A 125V |
0 |
|
- |
EK | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Ball Tip | 12.70mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
IGE251-73SWITCH TOGGLE 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | - | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5638AB7VX85001TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
11236AD226X408TOGGLE SWITCH 11000 HIGH SPEC |
0 |
|
- |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
CT570692000TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

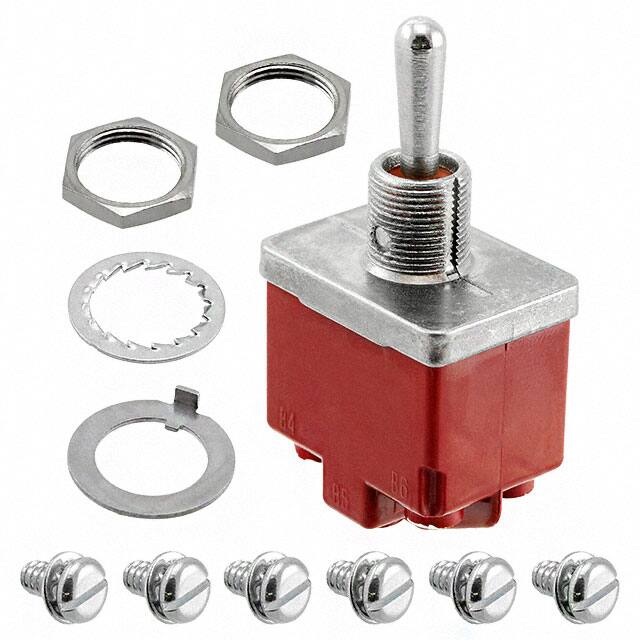

CT44101N020SWITCH TOGGLE SP3T 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SP3T | On-On-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
CT44201N020SWITCH TOGGLE SP3T 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
A223S1YV40GSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
631SH/22VTOGGLE SWITCH 600H HIGH POWER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5646MADBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
11149ATOGGLE SWITCH 11000 HIGH SPEC |
0 |
|
- |
11000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (DC) | - | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5669AB3VSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5236Y6ADKB2X386TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
1520175-1SWITCH TOGGLE DPST 20A 125V |
0 |
|
- |
- | Bulk | Active | - | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.04mm | - | - | - | - | - | - | - | - | - |
|
|
5236MADKX001TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
