SCRs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TM8050H-8WSCR 800V 80A TO247 |
709 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 800 V | 1.5 V | 50 mA | 1.55 V | 50 A | 80 A | 100 mA | 20 µA | 670A, 731A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
TN5050H-12WYSCR 1.2KV 80A TO247-3 |
762 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1.2 kV | 1 V | 50 mA | 1.55 V | 51 A | 80 A | 100 mA | 5 µA | 580A, 633A | Standard Recovery | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
VS-40TPS08A-M3SCR 800V 55A TO247AC |
147 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 800 V | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
TM8050H-8D3-TRSCR 800V 80A D3PAK |
445 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | 800 V | 1.5 V | 50 mA | 1.55 V | 50 A | 80 A | 100 mA | 20 µA | 670A, 731A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
S4070WTPSCR 400V 70A TO218X |
170 |
|
Datasheet |
- | TO-218X-3 | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 45 A | 70 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X |
|
S4065KTPSCR 400V 65A TO218 |
227 |
|
Datasheet |
- | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Isolated Tab |
|
|
S6070WTPSCR 600V 70A TO218X |
281 |
|
Datasheet |
- | TO-218X-3 | Tube | Active | 600 V | 2 V | 50 mA | 1.8 V | 45 A | 70 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X |
|
S4065JTPSCR 400V 65A TO218X |
125 |
|
Datasheet |
- | TO-218X-3 Isolated Tab | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X Isolated |
|

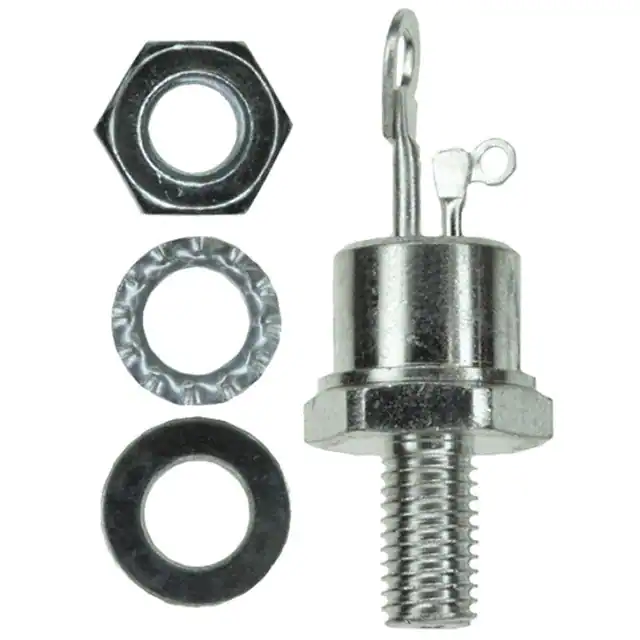

VS-25RIA80SCR 800V 40A TO208AA |
178 |
|
Datasheet |
- | TO-208AA, TO-48-3, Stud | Bulk | Active | 800 V | 2 V | 60 mA | 1.7 V | 25 A | 40 A | 130 mA | 10 mA | 420A, 440A | Standard Recovery | -65°C ~ 125°C | - | - | Chassis, Stud Mount | TO-208AA (TO-48) |
|
S4008LS3TPSCR 400V 8A ITO220AB |
438 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 400 V | 800 mV | 500 µA | 1.6 V | 5.1 A | 8 A | 8 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C (TJ) | - | - | Through Hole | ITO-220AB |
,TO-226_straightlead.jpg)
|
SX011USCR 800V 1A TO92 |
1,928 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | 800 V | 800 mV | 200 µA | 1.7 V | - | 1 A | 4 mA | 5 µA | 12A @ 50Hz | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|
SD09A105ETHYRISTOR DO-41 T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SD09A160ETHYRISTOR DO-41 T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SX014CRSCR 900V 1.25A TO92CR |
1,960 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | 900 V | 800 mV | 200 µA | 1.5 V | - | 1.25 A | 4 mA | 5 µA | 20A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-92 |
|
|
SD09A240ETHYRISTOR DO-41 T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A150ETHYRISTOR DO-41 T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A180ATHYRISTOR SMA T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A200ATHYRISTOR SMA T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A220ATHYRISTOR SMA T&R 5K |
5,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A150GTHYRISTOR DO-15 T&R 4K |
4,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
