SCRs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S6010LS2TPSCR 600V 10A TO220AB-L |
3,785 |
|
Datasheet |
- | TO-220-3 Isolated Tab | Tube | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB-L |
|
S6006DS2RPSCR 600V 6A TO252 |
9,108 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 3.8 A | 6 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TN22-1500HSCR 400V 2A IPAK |
4,872 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | 400 V | 3 V | 1.5 mA | 3.1 V | 1.8 A | 2 A | 175 mA | 100 µA | 20A, 22A | Standard Recovery | -40°C ~ 110°C | - | - | Through Hole | TO-251 (IPAK) |
|
SK006DRPSCR 1KV 6A TO252 |
4,674 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 20 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|
VS-16TTS12S-M3SCR 1.2KV 16A TO263AB |
8,930 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 150 mA | 10 mA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
SJ6004DS2RPSCR 600V 4A TO252 |
19,455 |
|
Datasheet |
SJ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 2.56 A | 4 A | 6 mA | 5 µA | 25A, 30A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
S4012RTPSCR 400V 12A TO220 |
119 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 400 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
MCR8SMGSCR 600V 8A TO220AB |
321 |
|
Datasheet |
- | TO-220-3 | Box | Active | 600 V | 1 V | 200 µA | 1.8 V | - | 8 A | 6 mA | 10 µA | 80A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB |
|
TYN225RGSCR 200V 25A TO220AB |
959 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 200 V | 1.5 V | 40 mA | 1.6 V | 16 A | 25 A | 50 mA | 5 µA | 250A, 260A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TN5015H-6TSCR 600V 50A TO220AB |
556 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
MCR12DSN-1GSCR 800V 12A IPAK |
3,065 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Box | Active | 800 V | 1 V | 200 µA | 1.9 V | 7.6 A | 12 A | 6 mA | 10 µA | 100A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
MCR69-2GSCR 50V 25A TO220AB |
4,780 |
|
Datasheet |
- | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 50 mA | 10 µA | 300A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6402GSCR 200V 16A TO220AB |
925 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 200 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
TN5015H-6GSCR 600V 50A D2PAK |
998 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
S6010DS2RPSCR 600V 10A TO252 |
9,027 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
2N6401GSCR 100V 16A TO220AB |
925 |
|
Datasheet |
- | TO-220-3 | Box | Active | 100 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
S8012DRPSCR 800V 12A TO252 |
18,961 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 800 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
VS-12TTS08SLHM3SCR 800V 12.5A TO263 |
2,301 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1 V | 15 mA | 1.2 V | 8 A | 12.5 A | 30 mA | 5 mA | 110A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|

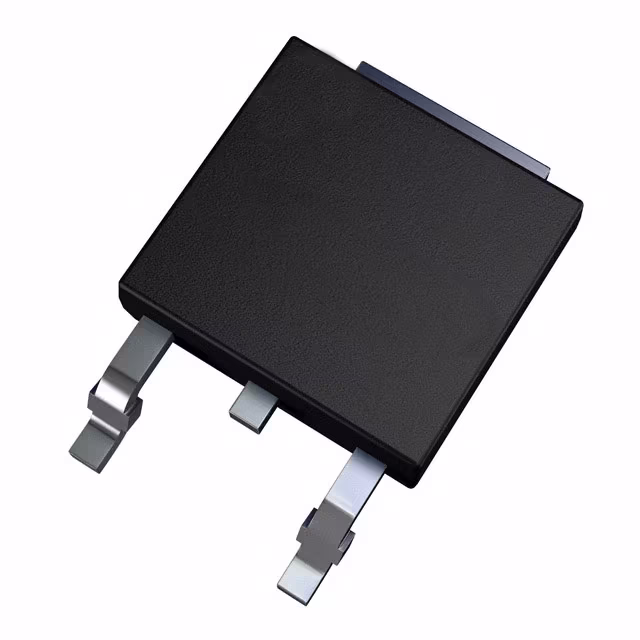

SV6016D1RPSCR 16A 600V HI TEMP TO-252 |
4,707 |
|
Datasheet |
SV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 10.2 A | 16 A | 40 mA | 10 µA | 180A, 200A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
TN5015H-6ISCR 600V 50A TO220AB |
665 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB Insulated |
