Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JF15RP2FESWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP2HESWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
|
5GSH92061RMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 8.50mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Illuminated | LED, White | 2.85 VDC | 204gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
5GSH96561RMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 8.50mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Illuminated | LED, White | 2.85 VDC | 663gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
B3W-9002-B2BSWITCH TACTILE SPST-NO 0.05A 24V |
10 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-B2NSWITCH TACTILE SPST-NO 0.05A 24V |
10 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-HG2NSWITCH TACTILE SPST-NO 0.05A 24V |
10 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|

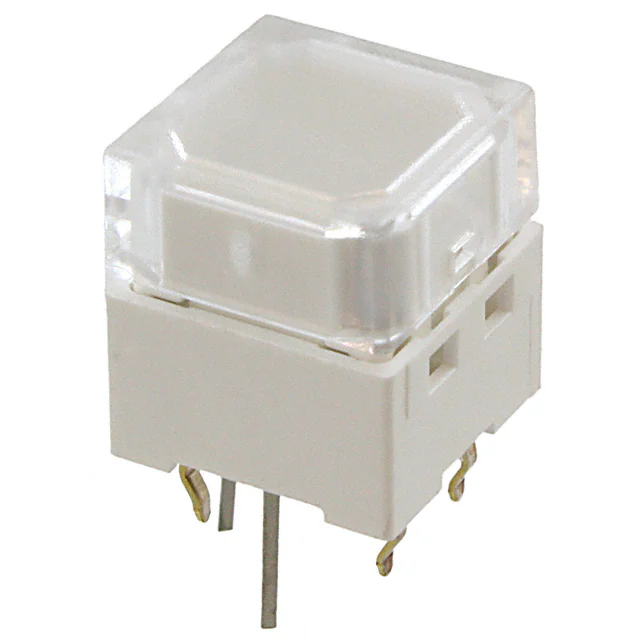

B3W-9002-HG2CSWITCH TACTILE SPST-NO 0.05A 24V |
5 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
TL1275CB2WA500QPWSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Panel Mount | 1.60mm | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | LED, White | 3.1 VDC | 350gf | - | - | -25°C ~ 70°C |
|
|
SM000025MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JB15HAP-5CSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-5ASWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
SM000292MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SM000027MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B3W-9010-B2BSWITCH TACTILE SPST-NO 0.05A 24V |
7 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-HG2GSWITCH TACTILE SPST-NO 0.05A 24V |
5 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
JF15RP3DESWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP3CESWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP3DFSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
|
SM000187MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
