Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.14.001.092/0000SWITCH TACTILE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5GTH92061QMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, White | 2.85 VDC | 204gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
3.14.001.081/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RF19 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3FTH940RASSWITCH YELLOW LED RIGHT ANGLE |
0 |
|
Datasheet |
Multimec™ 3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | - | Illuminated | LED, Yellow | 2.1 VDC | 357gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 80°C |
|
|
3.14.200.923/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green/Red | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.001.082/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RF19 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.001.083/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RF19 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
JB15HBPF-FSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPF-BILLUMINATED LOW PROFILE PROCESS |
0 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.13A @ 24VDC | Square Button | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
|
JB15HBPF-BBSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
3FTH920RASMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec™ 3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | - | Illuminated | LED, Green | 2.1 VDC | 357gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 80°C |
|
1.14.001.554/0000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 I | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 11.35mm x 11.35mm | Illuminated | LED, Yellow | 1.9 VDC | 330gf | - | - | -40°C ~ 80°C |
|
1.14.001.552/0000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 I | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 11.35mm x 11.35mm | Illuminated | LED, Green | 1.8 VDC | 330gf | - | - | -40°C ~ 80°C |
|

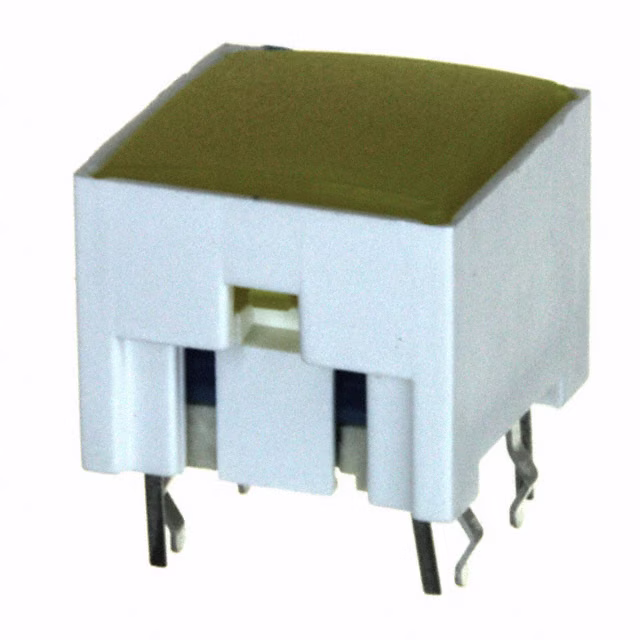

1.14.001.553/0000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 I | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 11.35mm x 11.35mm | Illuminated | LED, Yellow | 1.9 VDC | 330gf | - | - | -40°C ~ 80°C |
|
|
3.14.100.082/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
5GSH92001MEC SWITCH 10G |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5GSH96501MEC SWITCH 10G |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3.14.200.928/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.200.910/0000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF15 | Bulk | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.200.912/0000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF15 | Bulk | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
