Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM000264MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5GTH9208222SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
Multimec® 5 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green/Red | 2.0, 2.2 VDC | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
ITS13FR3SRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
ITS | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 6.70mm x 4.00mm | Illuminated | LED, Green/Red | 2.5 VDC | 220gf | - | - | -25°C ~ 70°C |
|

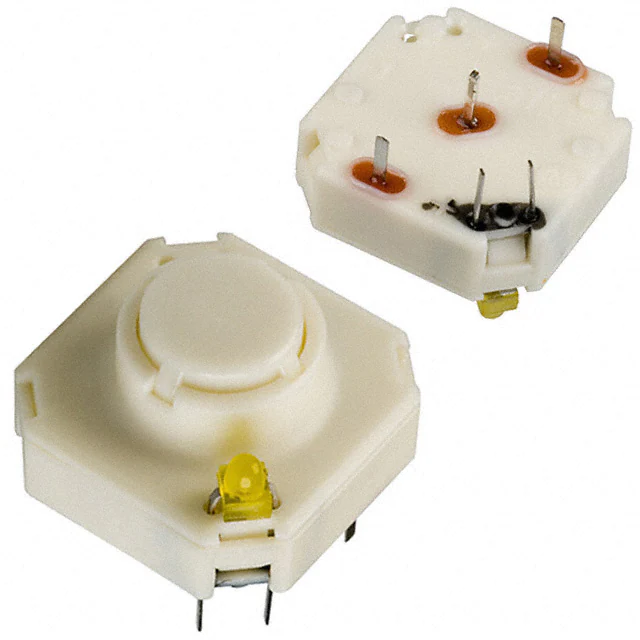

3.14.100.533/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15R | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.100.532/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15R | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.100.531/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RF15R | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.100.542/0000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF15R | Bulk | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.100.543/0000SWITCH TACTILE SPST-NO 0.25A 35V |
0 |
|
Datasheet |
RF15R | Bulk | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Round Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.001.501/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RF19H | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3FTH98020SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
|
3.14.001.031/0000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RF19 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Red | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
ITS23FR3SRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
ITS | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 6.70mm x 4.00mm | Illuminated | LED, Green/Yellow | 2.5 VDC | 220gf | - | - | -25°C ~ 70°C |
|
TL6210AF200XQSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6210AF200ZQSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Green/Yellow | 2.0, 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
JB15HAP-4CBSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4HBSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4FFSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4EESWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
1.14001.9160000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
Datasheet |
RACON 12 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 5.05mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 680gf | - | - | -40°C ~ 90°C |
|
|
4FSH92242RMEC SWITCH 10G |
0 |
|
Datasheet |
Illumec™ 4F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.30mm x 10.30mm | Illuminated | LED, Green/Yellow | 1.75, 2 VDC | 357gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
