Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3253BGBBYBF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Green/Yellow | 2.0, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3210AF160XRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL3210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.12mm | - | Top Actuated | Gull Wing | 5.60mm x 3.40mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1220R2BBBOG-POWERSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green/Orange | 2.3, 3.5 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1220R3NNBRG-POWERSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green/Red | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
|
TL1250F280BRRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1250 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | LED, Blue | 4 VDC | 280gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
TL3253ABBAGBF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.60mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Green | 2.1, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
K5ATBU43GPRSWITCH TACTILE SPST-NO 0.1A 32V |
0 |
|
Datasheet |
K5AT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.1A @ 32VDC | Round Button | Surface Mount | 6.10mm | - | Top Actuated | Gull Wing | 8.40mm x 8.00mm | Illuminated | LED, Blue | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 125°C |
|
|
TL1270F250GYRATSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
- |
TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 250gf | - | - | -40°C ~ 85°C |
|
|
TL3253BBABGAF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Green | 2.1, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3253ARAARAF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.60mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Red/Red | 1.95 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3253ARAAYAF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.60mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Red/Yellow | 1.95, 2 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3265PGQNNSwitches |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1.14001.5050000SWITCH TACTILE SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RACON 12 V | Tray | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole, Right Angle | 13.50mm | - | Side Actuated | PC Pin | 13.60mm x 13.50mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 90°C |
|
|
SM000177MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

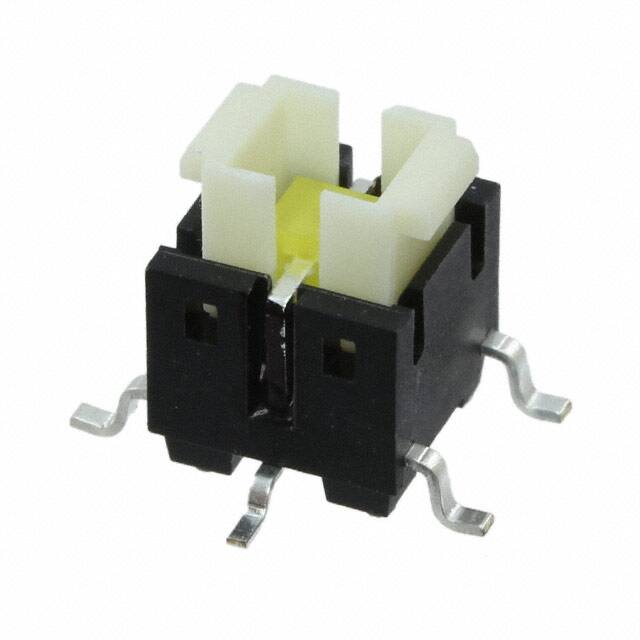

FSMIJM63AW04SWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, White | - | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
SIP02TVTACT SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JB15HBPC/H7ESWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
CF-CA-1CB4-P202SWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Datasheet |
CF-CA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 7.40mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 4.40mm | Non-Illuminated | - | - | 305gf | - | Washable | -40°C ~ 90°C |
|
|
CF-CA-1CB4-P212SWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Datasheet |
CF-CA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 7.40mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 6.40mm | Non-Illuminated | - | - | 305gf | - | Support Terminal | -40°C ~ 90°C |
|
CF-CA-1CB4-P402SWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Datasheet |
CF-CA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 8.60mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 4.40mm | Non-Illuminated | - | - | 305gf | - | Washable | -40°C ~ 90°C |
