Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3210AF160GQSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL3210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.12mm | - | Top Actuated | Gull Wing | 5.60mm x 3.40mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
JB15KP-1FSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-1GSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-1ESWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
3FXXX45MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3FXXX24MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3FXXX89MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3ETH9RASMEC SWITCH 10G |
0 |
|
Datasheet |
3E | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.40mm | Side Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 357gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
TL1220R2BBBBHALOSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Blue | 3.5 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
3CTH9RASMEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SM000021MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL1240GRNSBKBSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
MJTP5302ATACT SWITCH PCB MOUNT |
0 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
MJTP5302TACT SWITCH PCB MOUNT |
0 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.20mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
MJTP5302BTACT SWITCH PCB MOUNT |
0 |
|
- |
MJTP | Bulk | Active | SPST x 3 | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.20mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3275AF160BRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL3275 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.90mm | - | Top Actuated | SMD (SMT) Tab | 6.40mm x 3.55mm | Illuminated | LED, Blue/Red | - | 160gf | - | - | -40°C ~ 85°C |
|
|
SM000320MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL3253BBBBBBF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Blue | 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|

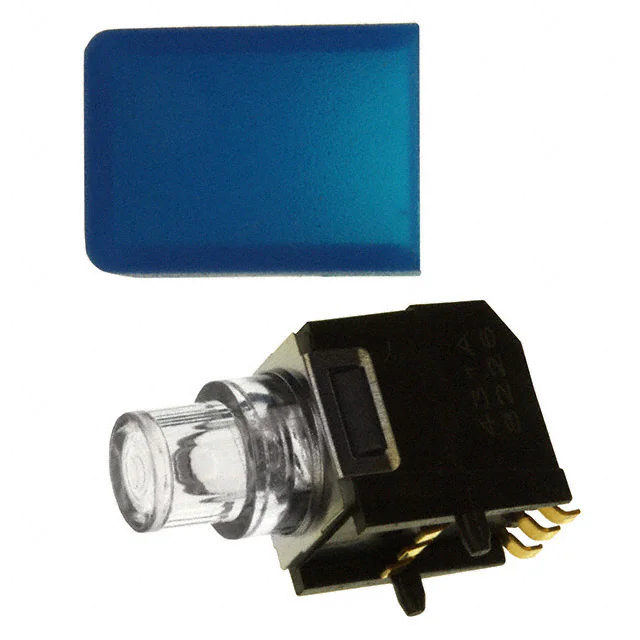

K5V1WH43GSWITCH TACTILE SPDT 0.1A 32V |
0 |
|
Datasheet |
K5V | Tape & Reel (TR) | Obsolete | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Surface Mount, Right Angle | - | 17.10mm | Side Actuated | Gull Wing | 8.00mm x 10.10mm | Illuminated | LED, White | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
|
TL3253AGBABBF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.60mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Blue | 2.1, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
