Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3ESH9R-08.0MEC SWITCH 10G |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3ESH9R-09.5MEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® 5 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 9.50mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | - | - | 306gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
3ESH9R-10.4MEC SWITCH 10G |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3ESH9R-12.0MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3ETHF63AAMEC SWITCH 10G |
0 |
|
Datasheet |
multimec® b | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 9.10mm x 9.10mm | Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
TL3253BNNBBBF160QSWITCH TACT SPSTX2 0.05A 12V |
0 |
|
Datasheet |
TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue | 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1220RXNNBW-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | - | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1220R3NNBW-HALOSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL1220R1BBBG-POWERSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
|
TL6275BA2PQURSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL6275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 16.20mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | LED, Red | - | 350gf | - | - | -25°C ~ 70°C |
|
|
APTLP2VTRTACT SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5GSH920QMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® 5 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.00mm x 10.00mm | Non-Illuminated | - | - | 204gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
5ESH965RMEC SWITCH 10G |
0 |
|
Datasheet |
Multimec® 5 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | - | - | 663gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
5GSH965RMEC SWITCH 10G |
0 |
|
Datasheet |
5G | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Illuminated | - | - | 663gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 160°C |
|
|
TL1240BQ3JTRANSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 13.52mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Blue | 4.2 VDC | 160gf | - | - | -20°C ~ 70°C |
|
444VR21025816SWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
WS-TASL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 160gf | - | - | -40°C ~ 85°C |
|

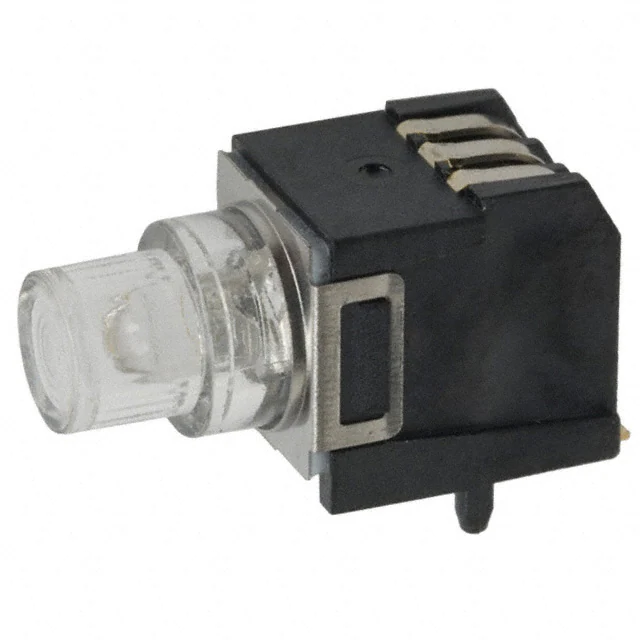

K5V1YG43GSWITCH TACTILE SPDT 0.1A 32V |
0 |
|
Datasheet |
K5V | Tape & Reel (TR) | Obsolete | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Surface Mount, Right Angle | - | 17.10mm | Side Actuated | Gull Wing | 8.00mm x 10.10mm | Illuminated | LED, Green/Yellow | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
|
1.14.012.920/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RACON 12 S | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 4.96mm | - | Top Actuated | SMD (SMT) Tab | 12.00mm x 12.00mm | Non-Illuminated | - | - | 989gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
|
|
1.14.012.916/0000SWITCH TACTILE SPST-NO 0.1A 35V |
0 |
|
- |
RACON 12 S | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 4.96mm | - | Top Actuated | SMD (SMT) Tab | 12.00mm x 12.00mm | Non-Illuminated | - | - | 1020gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 90°C |
|
|
SM000060MEC SWITCH 10G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
