Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS0501M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
297 |
|
Datasheet |
CLS | Bulk | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.969" Dia (50.00mm) |
|

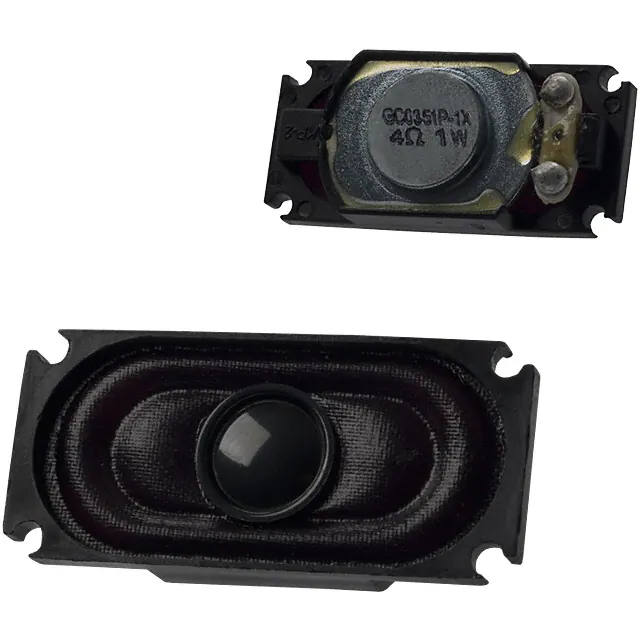

GC0351P-1SPEAKER 4OHM 1W TOP PORT 82DB |
369 |
|
Datasheet |
GC | Tray | Active | Magnetic | General Purpose | 630 Hz ~ 13 kHz | 630Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

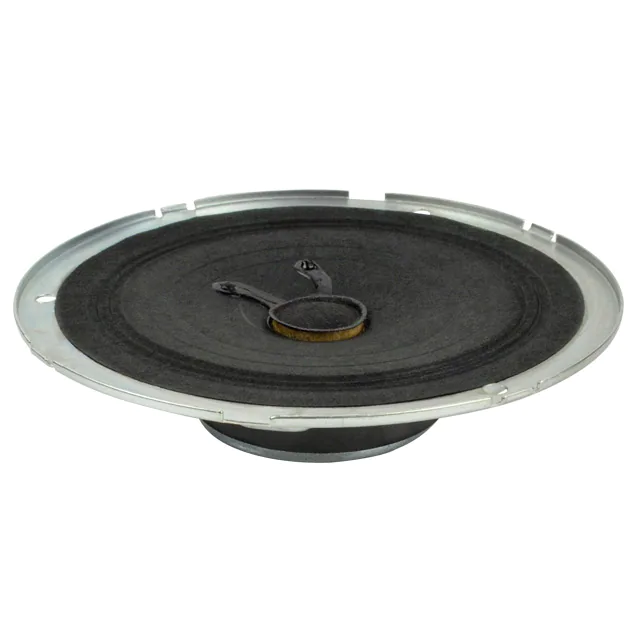

GF1207SPEAKER 8OHM 5W TOP PORT 96DB |
985 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 160 Hz ~ 8 kHz | 160Hz | 8 Ohms | 96.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | - |
|
CES-885955-26PMSPEAKER 6OHM 2W TOP PORT 91DB |
187 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 256 Hz ~ 20 kHz | 320Hz | 6 Ohms | 91.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Wire Leads | 3.461" L x 2.334" W (87.90mm x 59.29mm) |
|
GD30-31488-000SPEAKER 281OHM TOP PORT 100DB |
100 |
|
Datasheet |
GD30 | Bulk | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 281 Ohms | 100.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
HODTEC-31230-000SPEAKER TOP PORT 120DB |
90 |
|
- |
- | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 7 kHz | - | - | 120.00 | - | - | - | - | Top | - | - | - | - | - | - | - |
|

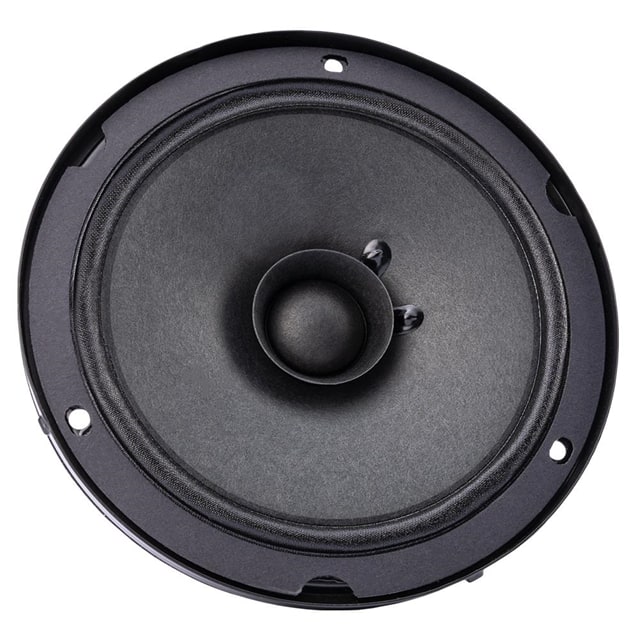

SPKR.10.4.ASPEAKER 4OHM 80W TOP PORT 10INCH |
43 |
|
Datasheet |
- | Box | Active | Magnetic | Subwoofer | 20 Hz ~ 200 Hz | - | 4 Ohms | - | - | Sound Pressure Level (SPL) | 80 W | 160 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 10.079" Dia (256.00mm) |
|
|
GR-31502-000SPEAKER 170OHM TOP PORT 103DB |
100 |
|
Datasheet |
GR | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5.58 kHz | - | 170 Ohms | 103.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
GR-31570-000SPEAKER 87.7OHM TOP PORT 103DB |
100 |
|
Datasheet |
GR | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5.58 kHz | - | 87.7 Ohms | 103.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
CMS-1545-058L5515MM ROUND, .5W, 8, 1000HZ |
870 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 90.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
|
CMS-241535-078L6524X15MM OVAL, .7W, 8, 850HZ |
1,033 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval, Rectangular Frame | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
|
SP-2014L-2SPEAKER, 8 OHM, 0.8/1.0W, 90DB, |
2,492 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 950 Hz ~ 20 kHz | 950Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
|
SP-2003SPEAKER, 8 OHM, 0.3/0.5W, 90DB, |
980 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | - | 0.787" Dia (20.00mm) |
|
|
CMS-3047-18L30030MM ROUND, 1W, 8, 600HZ |
987 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 6 kHz | 600Hz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.181" Dia (30.00mm) |
|
|
SP-2014FSPEAKER, 8 OHM, 1.0/1.3W 93DB, 9 |
878 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 93.00 | 100mW/50mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | - | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
|
SP-1504L-1SPEAKER, 8 OHM, 0.5/0.8W, 92DB, |
992 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 20 kHz | 1kHz | 8 Ohms | 92.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
|
WSPH-1511SSPEAKER, IP67, 8 OHM, 0.7/1.0W, |
2,000 |
|
Datasheet |
WSP | Bulk | Active | Magnetic | General Purpose | 800 Hz ~ 2 kHz | 800Hz | 8 Ohms | 83.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Round | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
SP-1217SPEAKER, 8 OHM, 0.8/1.0W, 90DB, |
949 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 1.1 kHz ~ 20 kHz | 1.1kHz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Solder Pads | 0.472" L x 0.669" W (12.00mm x 17.00mm) |
|
|
SP-2305SPEAKER, 8 OHM, 0.5/0.8W, 89DB, |
1,199 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | - | 0.906" Dia (23.00mm) |
|
|
SP-2004FWSPEAKER, 8 OHM, 0.5/0.8W, 91DB, |
963 |
|
Datasheet |
SP | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 8 Ohms | 91.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
