Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-16093-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
152 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-181325-078L100A-67SPEAKER 8OHM 700MW TOP PORT 93DB |
372 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
CMS-181325-078L100B-67SPEAKER 8OHM 700MW TOP PORT 93DB |
309 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS01506MS-SC11-WP-RSPEAKER 6OHM 700MW TOP PORT 92DB |
387 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

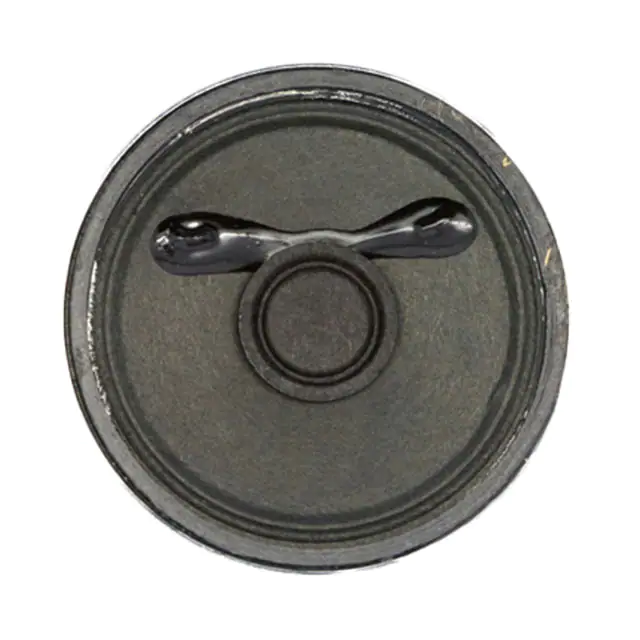

SP500408-2SPEAKER 8OHM 250MW TOP PORT 93DB |
955 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 4 kHz | 450Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SP-2506YSPEAKER 8OHM 1.5W TOP PORT 82DB |
562 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | - | - | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
SM180808-5SPEAKER 8OHM 1W TOP PORT |
384 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | - | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | - | - | - | - | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

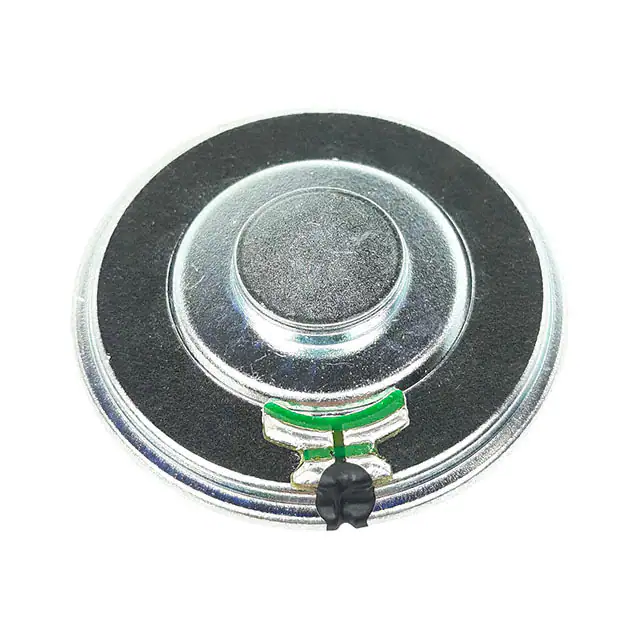

SP-5008SPEAKER 8OHM 1W TOP PORT 94DB |
130 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 94.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SM250508-2SPEAKER DYNAMIC |
430 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP400608-1SPEAKER 8OHM 500MW TOP PORT 92DB |
491 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
PSR40N08A01KSPEAKER 8OHM 1W TOP PORT |
104 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 500Hz | 8 Ohms | - | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SW250808-1SPEAKER 8OHM 500MW TOP PORT 92DB |
477 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
WSP-3605-16YSPEAKR 16OHM 700MW TOP PORT 88DB |
161 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 16 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 700 mW | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
CMS-160916-30-3SPEAKER 6OHM 800MW TOP PORT 88DB |
983 |
|
Datasheet |
CMS | Box | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 6 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SM170808-2SPEAKER 8OHM 700MW TOP PT 93.5DB |
296 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 93.50 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | - | - | - | - | 0.669" L x 0.472" W (17.00mm x 12.00mm) |
|
SW350608-1SPEAKER 8OHM 1.2W TOP PORT 90DB |
427 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 10 kHz | 600Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.378" L x 0.984" W (35.00mm x 25.00mm) |
|
CES-20134-088PMBSPEAKER 8OHM 800MW TOP PORT 91DB |
389 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
|
SP-1813SSPEAKER 8OHM 500MW TOP PORT 85DB |
352 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 800Hz | 8 Ohms | 85.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
SM200808-1SPEAKER 8OHM 400MW TOP PORT 85DB |
552 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 400 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
CMS-3520-18NSPEAKER 8OHM 1W TOP PORT 85DB |
969 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
