Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM280604-2SPEAKER 4OHM 200MW TOP PORT 90DB |
315 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 4 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|

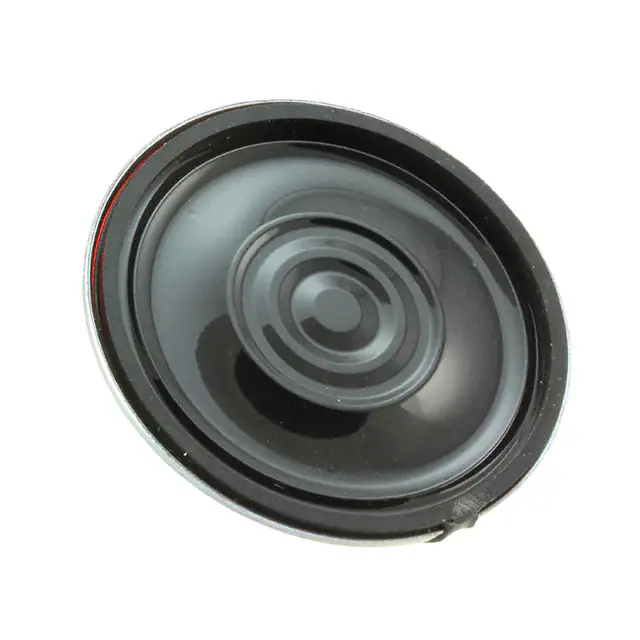

PSR36N08AKSPEAKER 8OHM 1W TOP PORT 88DB |
782 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 570 Hz ~ 5 kHz | 570Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
CMS-25145-28SP-67SPEAKER 8OHM 1.5W TOP PORT 81DB |
359 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMS-160916A-SPSPEAKER 6OHM 800MW TOP PORT 88DB |
116 |
|
Datasheet |
CMS | Tray | Active | Magnetic | Low Profile | 552.5 Hz ~ 20 kHz | 650Hz | 6 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

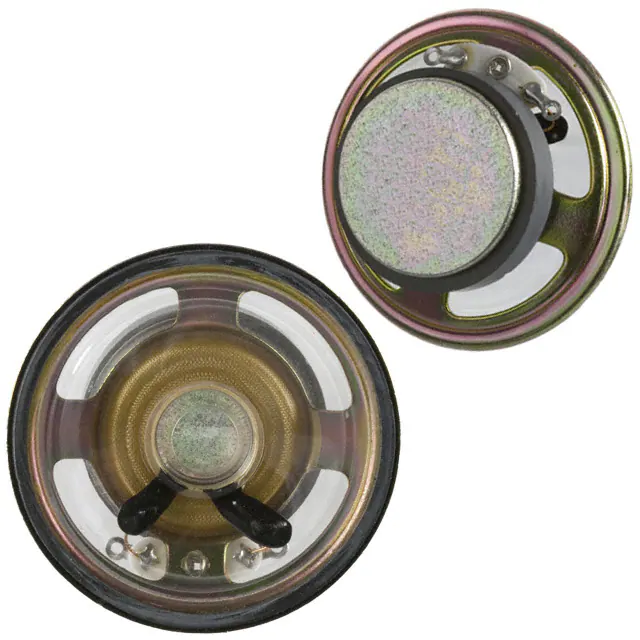

GF0501MSPEAKER 8OHM 250MW TOP PORT 86DB |
3,111 |
|
Datasheet |
GF | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 5.8 kHz | 440Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CMS-40558N-L152BSPEAKER 8OHM 500MW TOP PORT 90DB |
457 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|
GC0351M-3SPEAKER 8OHM 1W TOP PORT 83DB |
1,897 |
|
Datasheet |
GC | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|
CLS0501MSPEAKER 8OHM 200MW TOP PORT 80DB |
980 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CDS-27204-L1003SPEAKER 4OHM 2W TOP PORT 93DB |
981 |
|
Datasheet |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
CLS0301MASPEAKER 8OHM 200MW TOP PORT 89DB |
171 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
SC261704-1SPEAKER DYNAMIC |
1,784 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SM310204-1SPEAKER 4OHM 2W TOP PORT 97DB |
872 |
|
Datasheet |
Dynamis | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 10 kHz | 240Hz | 4 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester | - | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) |
|
GF0701SPEAKER 8OHM 500MW TOP PORT 91DB |
948 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 310 Hz ~ 4 kHz | 310Hz | 8 Ohms | 91.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
|
GF0661SPEAKER 8OHM 300MW TOP PORT 86DB |
1,000 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 300Hz | 8 Ohms | 86.00 | 300mW/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|
WSP-4023YSPEAKER 4OHM 300MW TOP PORT 79DB |
184 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 230 Hz ~ 20 kHz | 230Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.587" Dia (40.30mm) |
|
SM280708-2SPEAKER DYNAMIC |
1,361 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

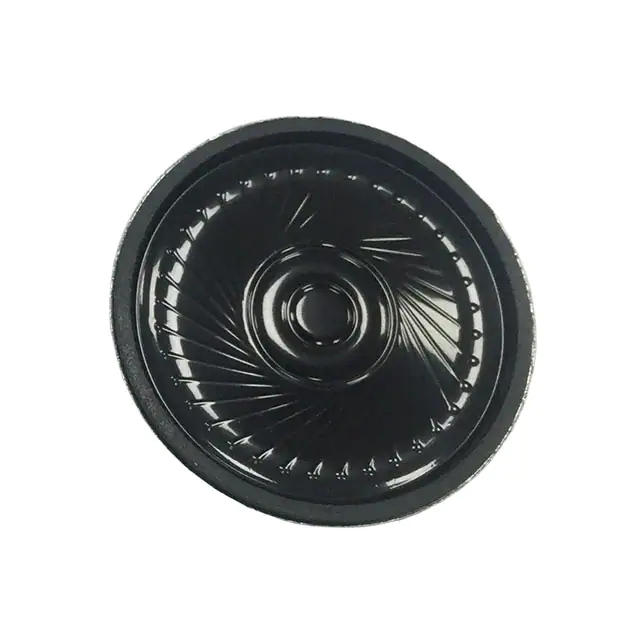

SP-4005SSPEAKER 8OHM 1W TOP PORT 93DB |
273 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Spring Type | 1.575" Dia (40.00mm) |
|
SW280408-2SPEAKER 8OHM 800MW TOP PORT 89DB |
254 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 400Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | - | 1.102" Dia (28.00mm) |
|
CMS-35206-158SPEAKER 8OHM 1.5W TOP PORT 100DB |
240 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.374" L x 0.787" W (34.90mm x 20.00mm) |
|
CES-361810-18PMSPEAKER 8OHM 1W TOP PORT 90.5DB |
226 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 800 Hz ~ 10 kHz | 1kHz | 8 Ohms | 90.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.610" L x 0.728" W (40.90mm x 18.50mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
