Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

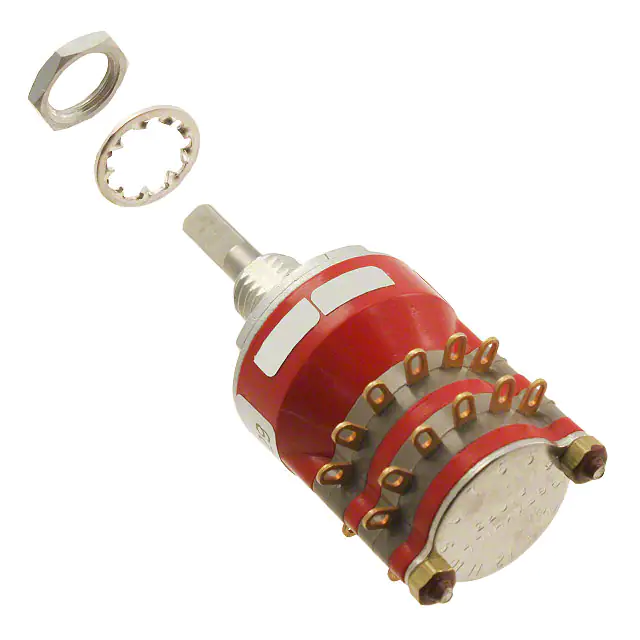

71AD30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
28 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

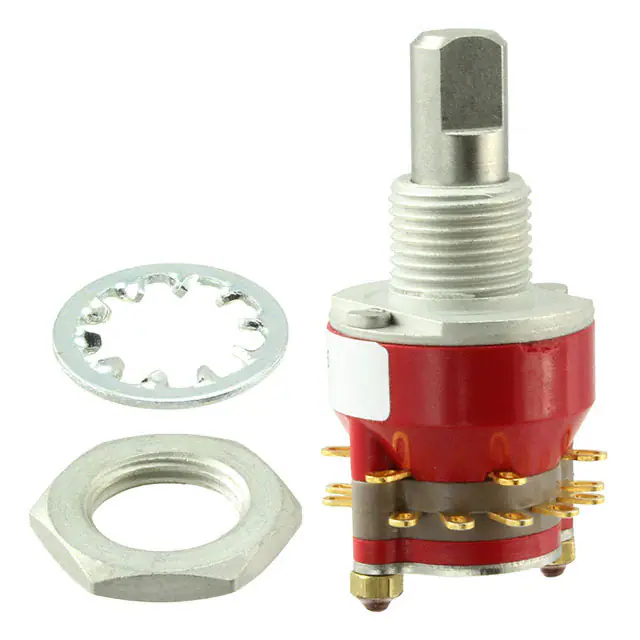

71B30-01-6-02SSWITCH ROTARY 2POS 250MA 115V |
51 |
|
Datasheet |
71 | Bulk | Active | 2 | Fixed | 1 | 6 | 6PDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

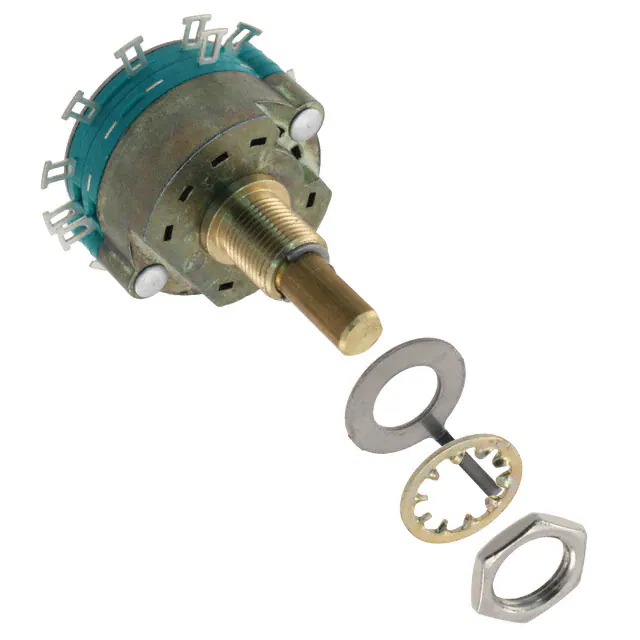

C4D0304N-ASWITCH ROTARY 2-4POS 300MA 125V |
93 |
|
Datasheet |
C4 | Tray | Active | 2 ~ 4 | Adjustable | 1 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.12mm |
|
50K36-01-1-05NSWITCH ROTARY 5POS 150MA 115V |
25 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
71AD30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
11 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
77P36-01-1-07NSWITCH ROTARY 7POS 50MA 115V |
20 |
|
Datasheet |
77 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
50K45-01-1-07NSWITCH ROTARY 7POS 150MA 115V |
28 |
|
Datasheet |
50 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

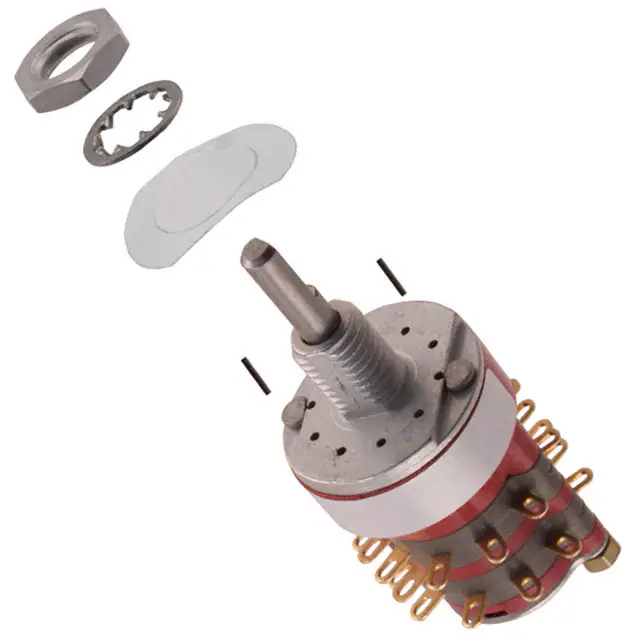

71AD36-02-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
31 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

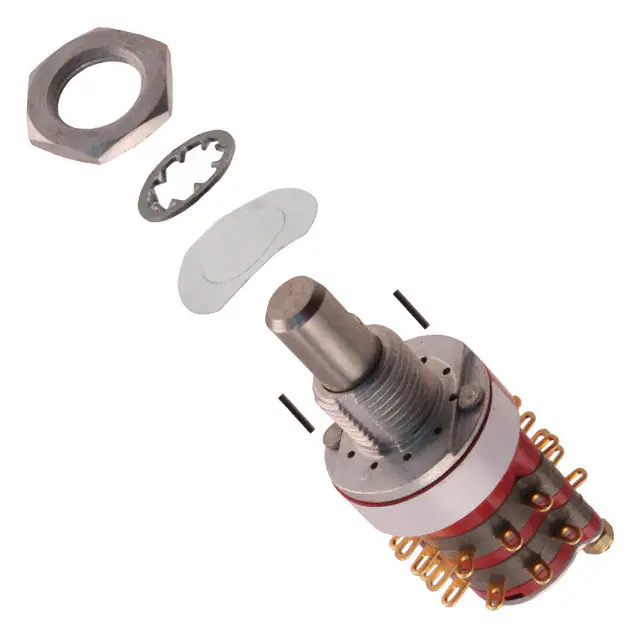

71BD36-02-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
30 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
71BD30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
20 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
50KS36-01-1-10NSWITCH ROTARY 10POS 150MA 115V |
24 |
|
Datasheet |
50 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51KP30-01-1-12NSWITCH ROTARY 12POS 150MA 115V |
15 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
C2P0204N-ASWITCH ROTARY 2-4POS 100MA 125V |
66 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 22.38mm |
|
|
51SP22-01-2-07NSWITCH ROTARY 7POS 150MA 115V |
69 |
|
Datasheet |
51 | Bulk | Active | 7 | Fixed | 1 | 2 | DP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
51SP22-01-2-08NSWITCH ROTARY 8POS 150MA 115V |
30 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 2 | DP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|

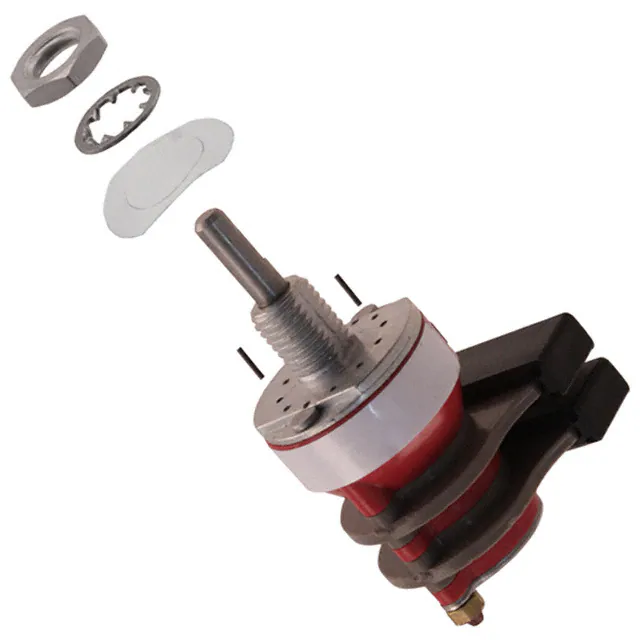

71ADF30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
69 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|

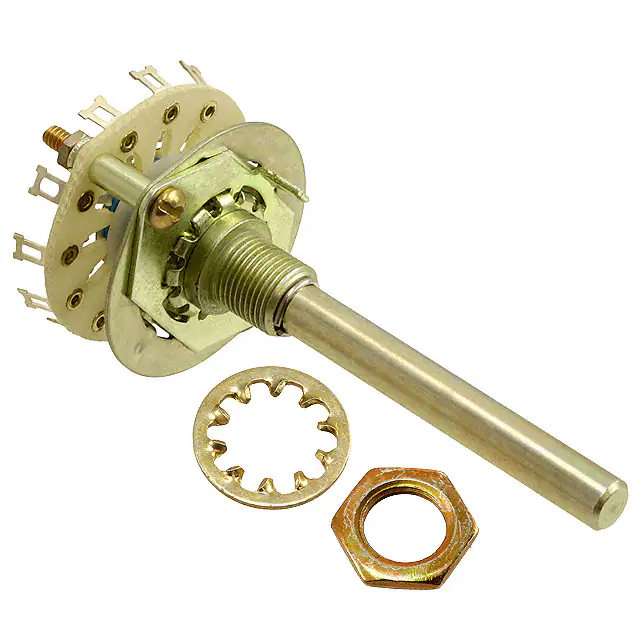

D4G0205NSWITCH ROTARY 2-5POS 500MA 115V |
97 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.27mm |
|
|
51ST22-01-2-07NSWITCH ROTARY 7POS 150MA 115V |
20 |
|
Datasheet |
51 | Bulk | Active | 7 | Fixed | 1 | 2 | DP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount | Solder Lug | Process Sealed, Shaft and Panel Sealed | 18.77mm |
|
|
50K36-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
11 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

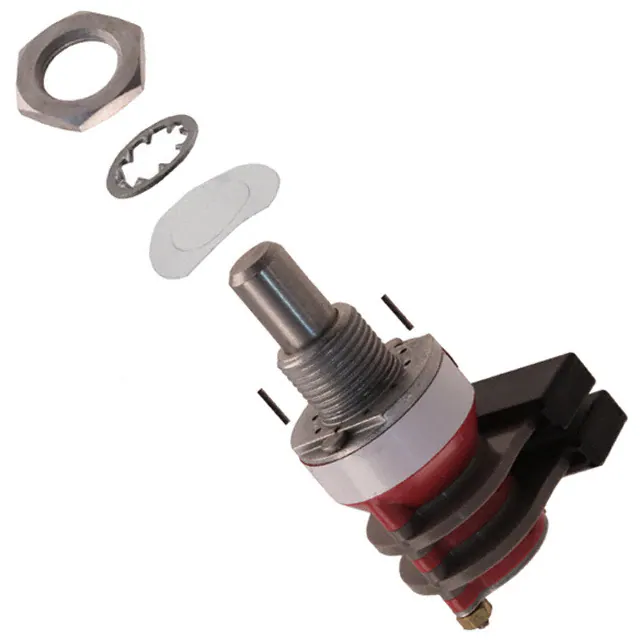

71BDF36-02-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
67 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
Rotary Switches Electronic Components
Explore Rotary Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
