Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75AP36-01-1-08NSWITCH ROTARY 8POS 200MA 115V |
32 |
|
Datasheet |
75 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | Flush | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Through Hole | PC Pin | - | 12.42mm |
|
MB05L1NCGDSWITCH ROTARY 5POS 250MA 125V |
76 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|

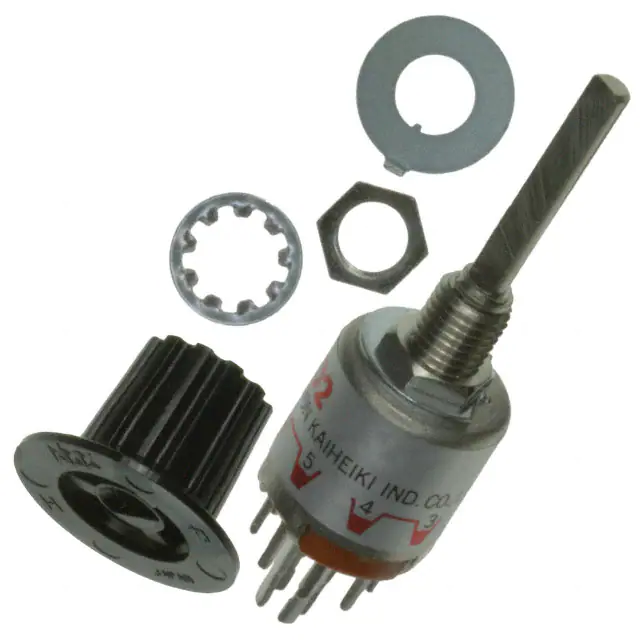

MRX402-ASWITCH ROTARY 2POS 2A 125V |
47 |
|
Datasheet |
MR | Box | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 13.00mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|

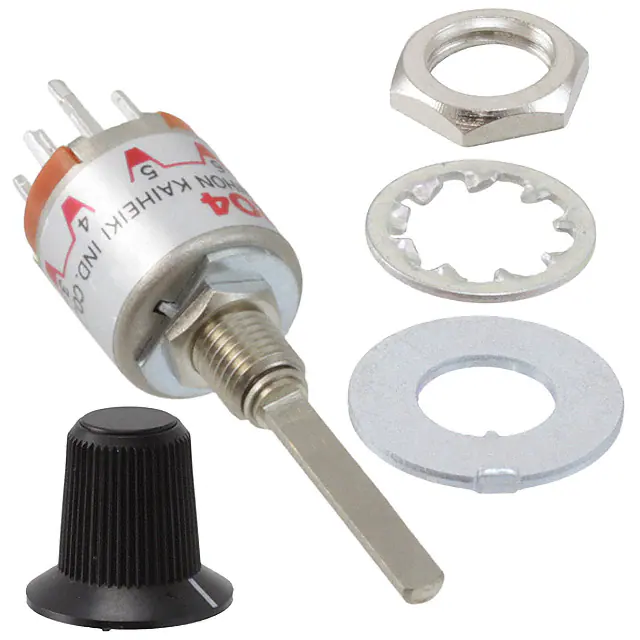

MRX204-CHSWITCH ROTARY 2-4POS 2A 125V |
13 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|

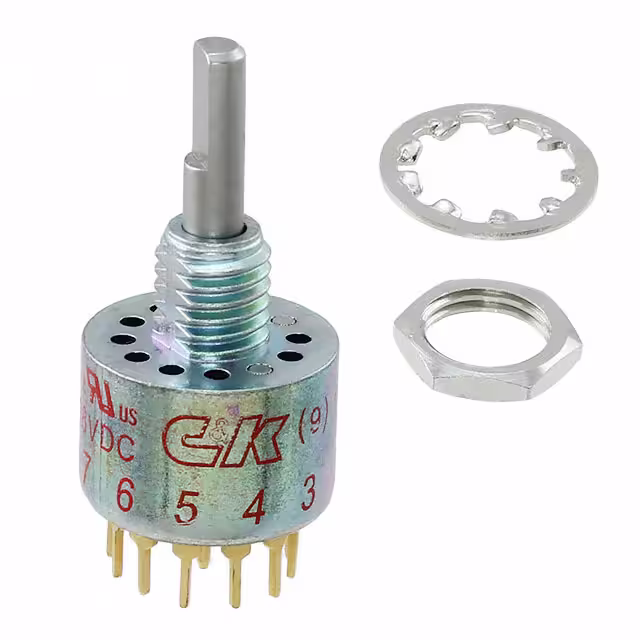

MC03S1NCGDSWITCH ROTARY 3POS 250MA 125V |
88 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
MA06S1NZGFSWITCH ROTARY 6POS 250MA 125V |
48 |
|
Datasheet |
M | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
C3P0112N-ASWITCH ROTARY 2-12POS 100MA 125V |
11 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 22.38mm |
|

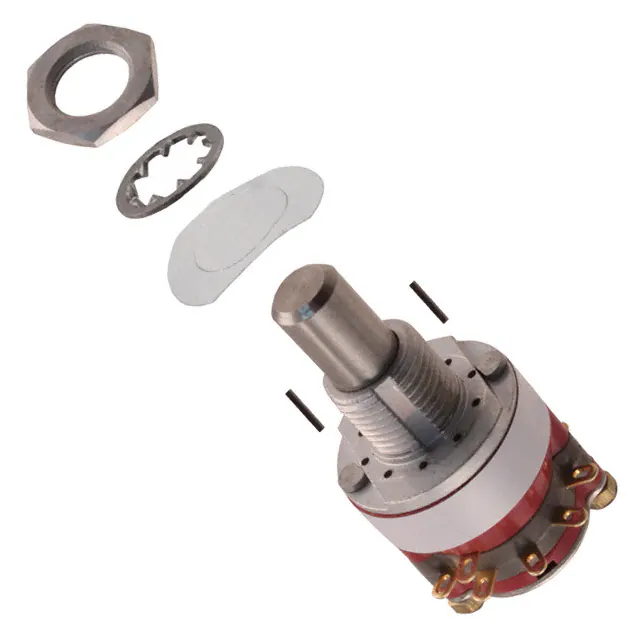

71BD36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
93 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
71AD30-01-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
59 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
50D36-01-2-AJNSWITCH ROTARY 2-5POS 150MA 115V |
65 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
71BDF36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
21 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
C3P0206N-ASWITCH ROTARY 2-6POS 100MA 125V |
81 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 22.38mm |
|
50DP36-01-2-AJNSWITCH ROTARY 2-5POS 150MA 115V |
25 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
50D60-01-2-AJNSWITCH ROTARY 2-3POS 150MA 115V |
14 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
50D45-01-2-AJNSWITCH ROTARY 2-4POS 150MA 115V |
10 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
50CD36-01-1-AJNSWITCH ROTARY 2-10POS 150MA 115V |
19 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
71BD30-02-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
30 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
50K36-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
19 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51A22-01-2-08NSWITCH ROTARY 8POS 150MA 115V |
31 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 2 | DP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
71AD36-02-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
44 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
