Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

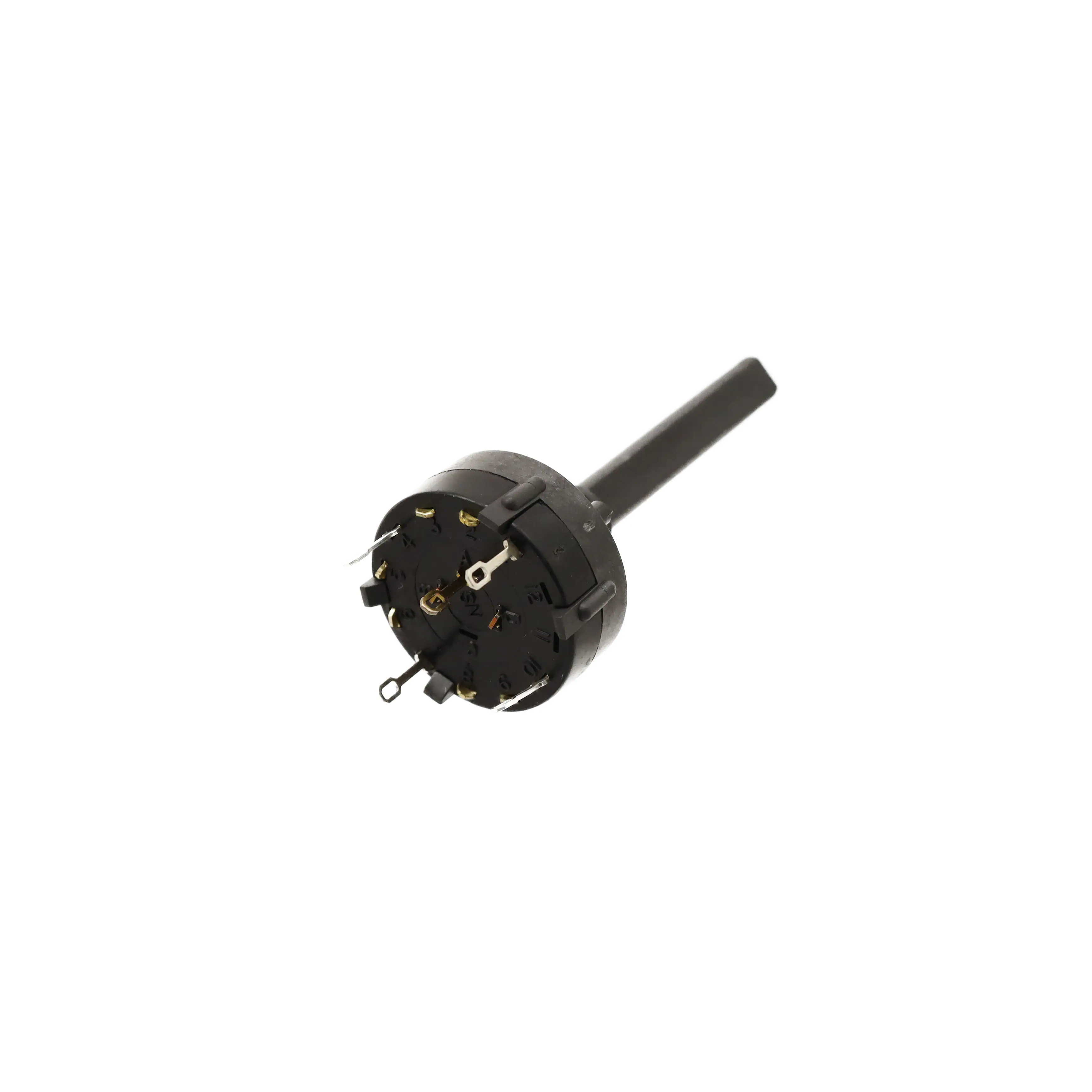

A10405RNZQFSWITCH ROTARY 4POS 2.5A 125V |
212 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Splashproof Bushing Seal | 20.83mm |
|
KC26A9.501NLSSWITCH ROTARY 6POS 350MA 125V |
516 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
A20403RNZQSWITCH ROTARY 4POS 2.5A 125V |
338 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
R20407RR03QSWITCH ROTARY 4POS 5A 125V |
468 |
|
Datasheet |
R | Tube | Active | 4 | Fixed | 1 | 2 | DP4T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount | Solder Lug | - | 14.61mm |
|
A12515RNZQSWITCH ROTARY 8POS 2.5A 125V |
1,795 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A20603RNZQSWITCH ROTARY 6POS 2.5A 125V |
201 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A11503RNZQSWITCH ROTARY 3POS 2.5A 125V |
409 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A20605RNZQSWITCH ROTARY 6POS 2.5A 125V |
2,173 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A30405RNCQSWITCH ROTARY 4POS 2.5A 125V |
1,866 |
|
Datasheet |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A10403RNCQSWITCH ROTARY 4POS 2.5A 125V |
462 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A10605RNCQSWITCH ROTARY 6POS 2.5A 125V |
181 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A21405RNZQESWITCH ROTARY 2POS 2.5A 125V |
1,964 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
KC26A9.501NPFSWITCH ROTARY 6POS 350MA 125V |
659 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

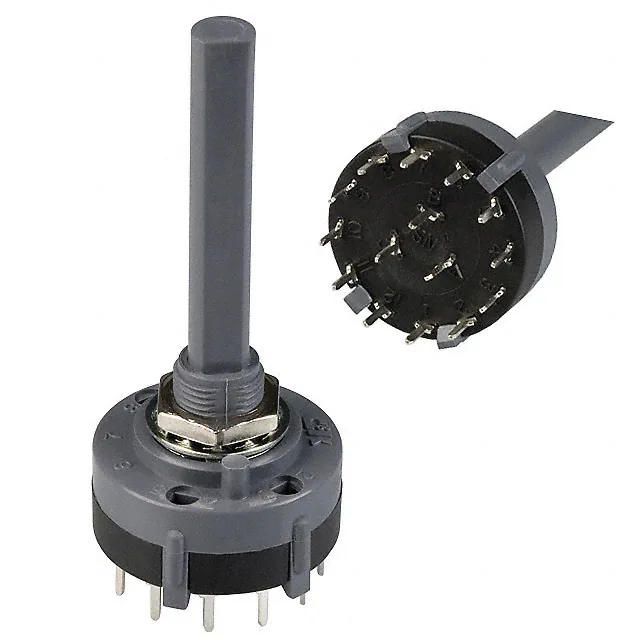

A30415RNCQSWITCH ROTARY 4POS 2.5A 125V |
258 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

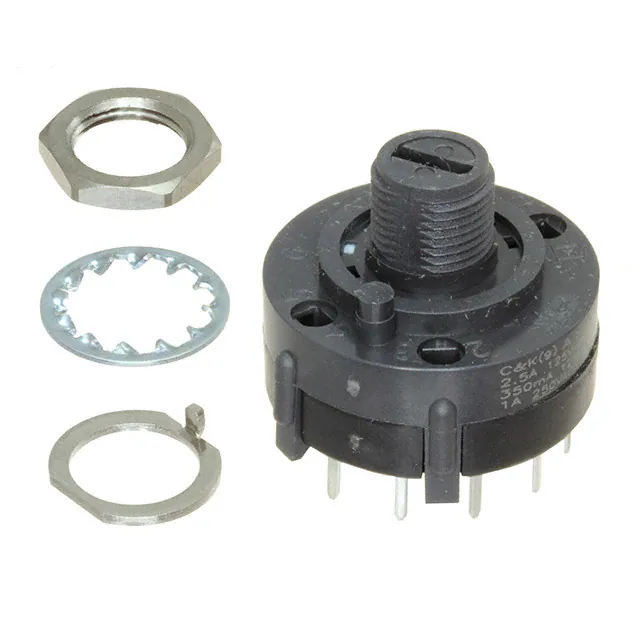

A112S1RNCQSWITCH ROTARY 12POS 2.5A 125V |
560 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
212T0112N332RASWITCH ROTARY 12POS 750MA 125V |
204 |
|
Datasheet |
212 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 750mA (AC), 250mA (DC) | 125 V | 28 V | Round (6.35mm Dia) | 15.90mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 22.17mm |
|
A20615RNCQSWITCH ROTARY 6POS 2.5A 125V |
1,039 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A10505RNCQESWITCH ROTARY 5POS 2.5A 125V |
211 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
C5P0112N-ASWITCH ROTARY 2-12POS 1A 125V |
118 |
|
Datasheet |
C5 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Sealed | 20.07mm |
|

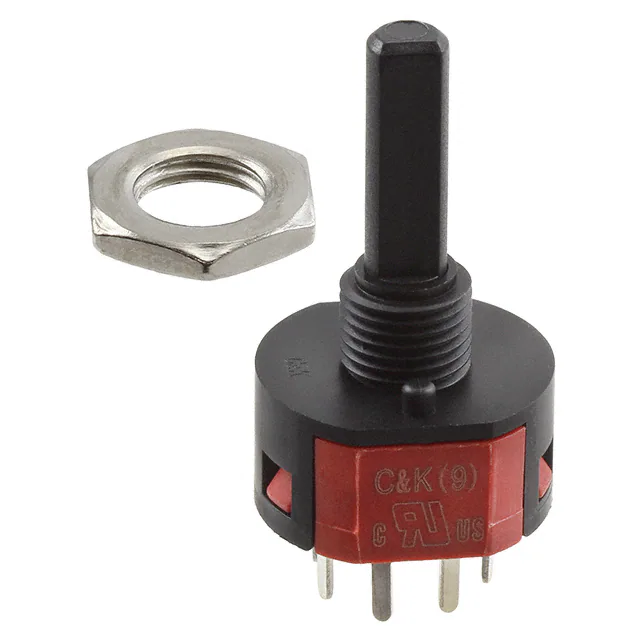

F20308RS02QSWITCH ROTARY 3POS 4A 125V |
146 |
|
Datasheet |
F | Tray | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Flatted (4.75mm Dia) | 14.86mm | 45° | Copper | Silver | Panel Mount, Through Hole | PC Pin | No Common Pin | 12.45mm |
