Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

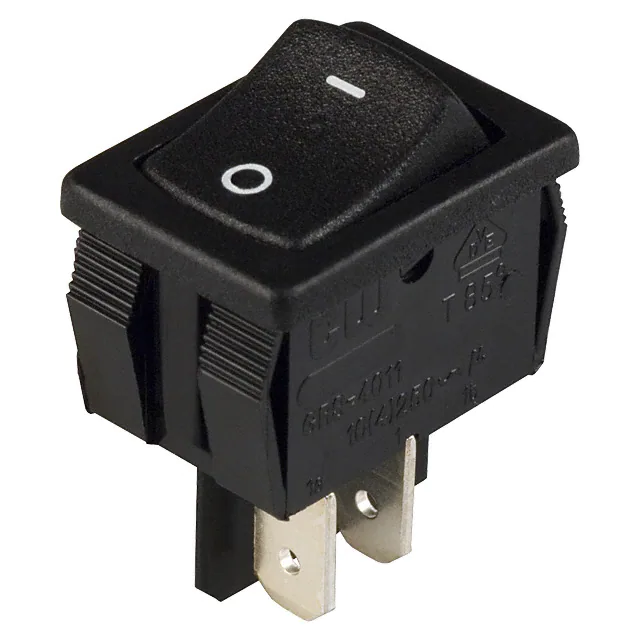

GRS-4011-0068SWITCH ROCKER SPST 16A 125V |
7,643 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

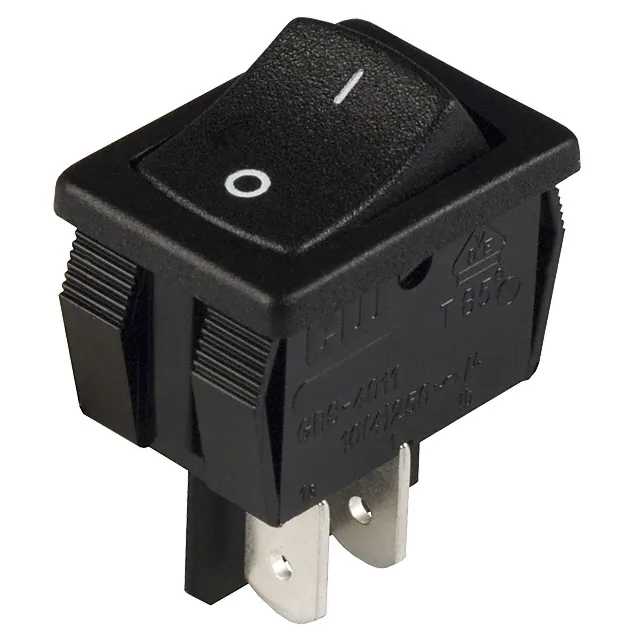

GRS-4011-0076SWITCH ROCKER SPST 16A 125V |
1,805 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RE111C1021-116SWITCH ROCKER SPST 16A 125V |
953 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Oval - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 85°C | cUL, VDE, UL |
|
C1500AAAAASWITCH ROCKER SPST 20A 250V |
814 |
|
Datasheet |
1500 | - | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|

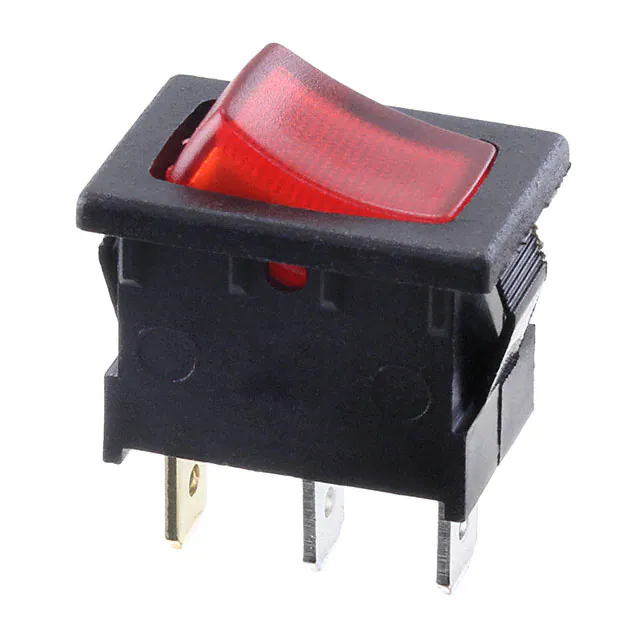

RA11131000-116SWITCH ROCKER SPST 10A 125V |
1,399 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|

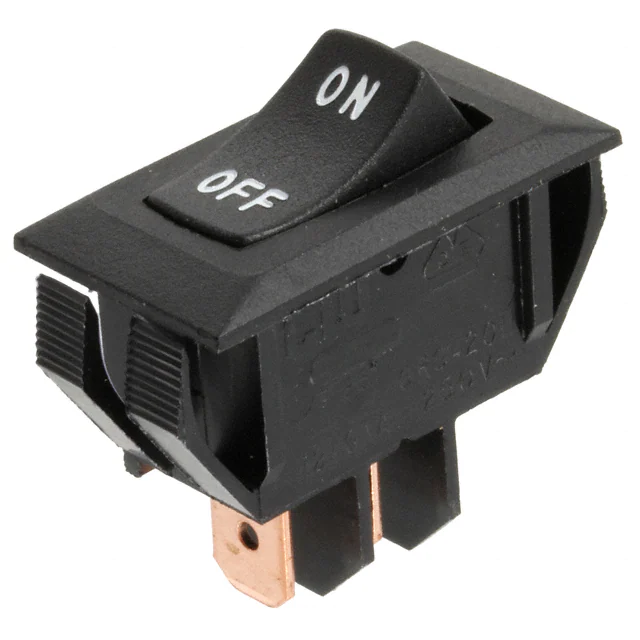

GRS-2011-2015SWITCH ROCKER SPST 16A 125V |
616 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | - | - |
|
SW-R1-3A-E-LR13-0SWITCH ROCKER DPST 20A 125V |
1 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
SW-R1-3C-E-1-0SWITCH ROCKER DPST 20A 125V |
300 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPST | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
RB141C1123/ACC-F01-1SWITCH ROCKER SPST 15A 125V |
2,961 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
RR812C2211SWITCH ROCKER DPST 16A 125V |
10,238 |
|
Datasheet |
RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|

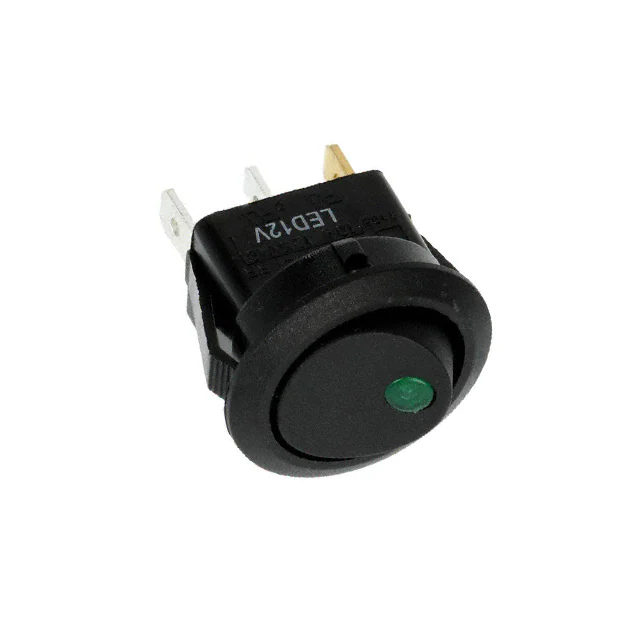

RR11131100-234SWITCH ROCKER SPST 10A 125V |
5,232 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
RR11131100-214SWITCH ROCKER SPST 10A 125V |
3,560 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|

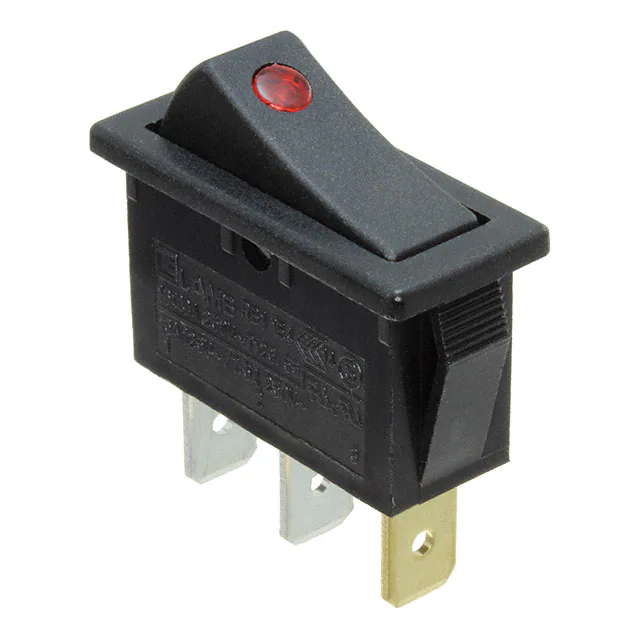

RB141C1100-214SWITCH ROCKER SPST 15A 125V |
2,796 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
RA1122DWCSWITCH ROCKER SPST 15A 240VAC |
131 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|

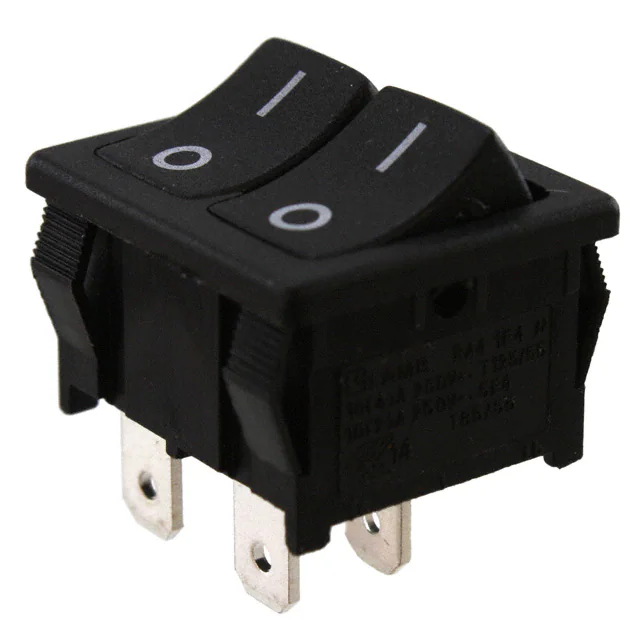

RA21131121SWITCH ROCKER SPSTX2 10A 125V |
1,189 |
|
Datasheet |
RA2, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST x 2 | On-Off | 10A (AC) | 125 V | - | Concave (Curved), Dual | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, VDE, UL |
|
RA1122DWRSWITCH ROCKER SPST 15A 125V |
1,099 |
|
Datasheet |
RA | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 105°C | cULus |
|

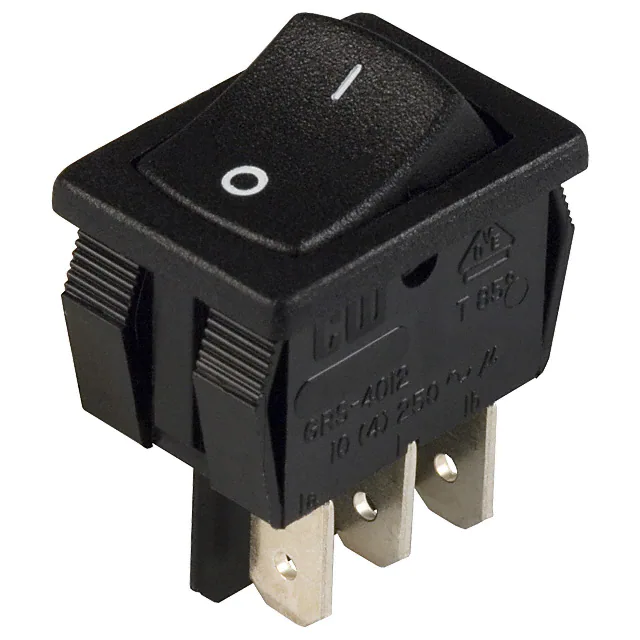

GRS-4012-0047SWITCH ROCKER SPDT 16A 125V |
670 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RA812C1121SWITCH ROCKER DPST 16A 125V |
7,484 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|

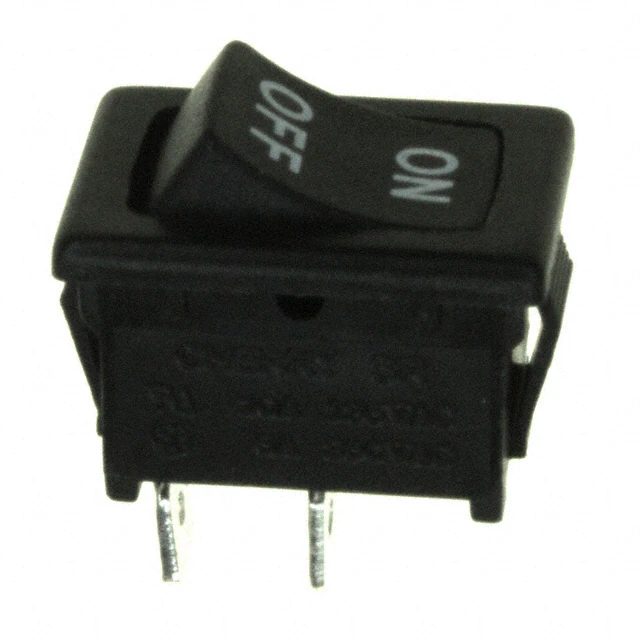

SRB22A2DBBNNSWITCH ROCKER SPST 10A 125V |
5,232 |
|
Datasheet |
SR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | - |
|

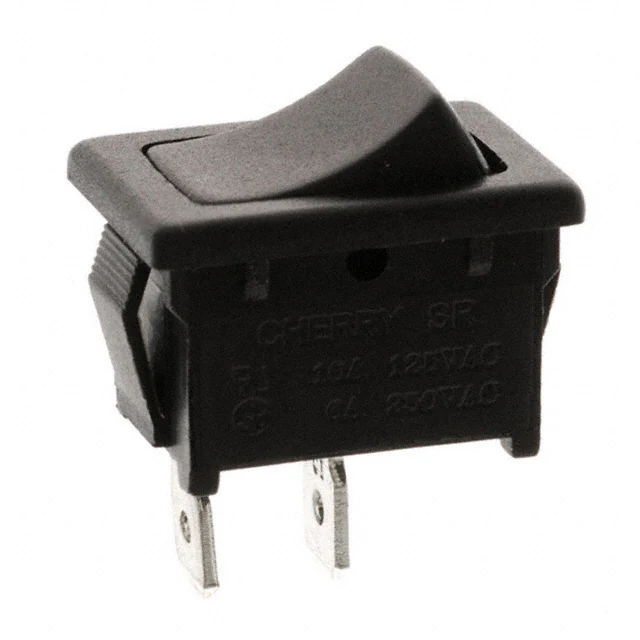

SRB22A2BBBNNSWITCH ROCKER SPST 10A 125V |
1,519 |
|
Datasheet |
SR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | - |
