Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLD2GHNB-AAC00-000SWITCH ROCKER DPDT 20A 12V |
611 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

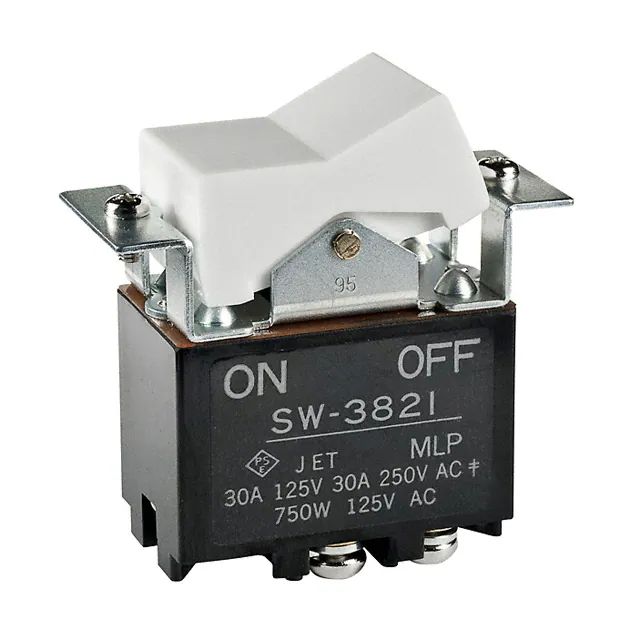

SW3821SWITCH ROCKER DPST 30A 125V |
300 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
KR47CAKXXGSWITCH ROCKER DPDT 10A 24V |
353 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

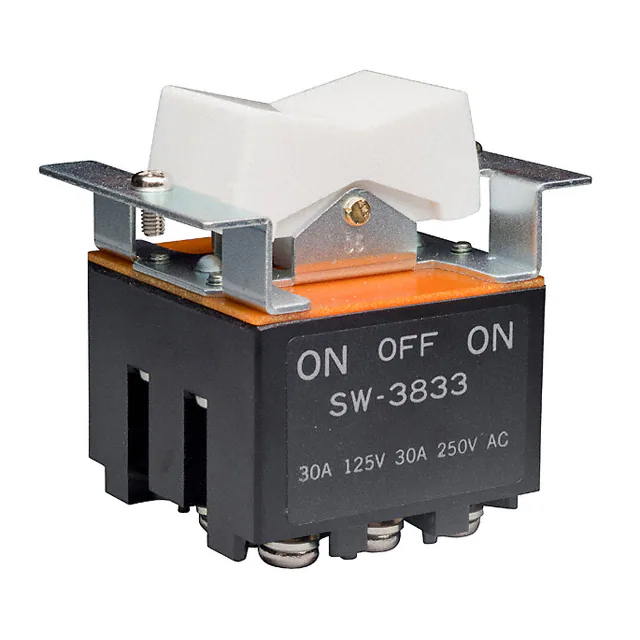

SW3833SWITCH ROCKER 3PDT 30A 125V |
1,029 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

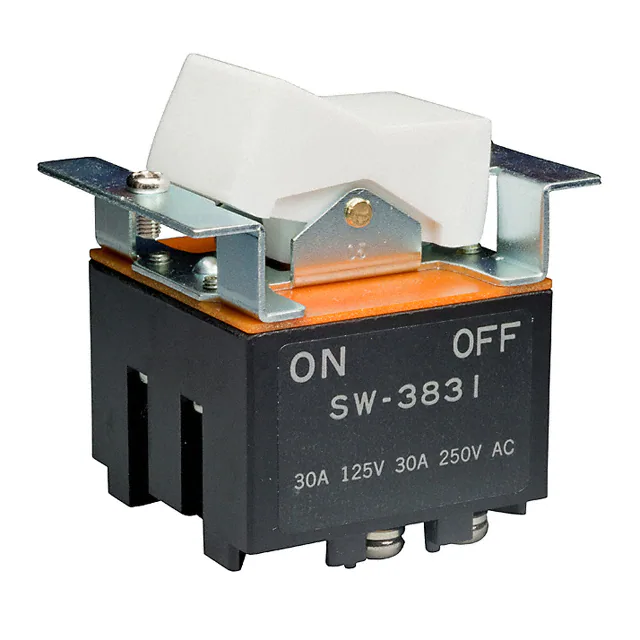

SW3831SWITCH ROCKER 3PST 30A 125V |
963 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
SW-R3-1A-A-1-0SWITCH ROCKER SPST 6A 125V |
3,679 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 13.20mm x 9.00mm | -25°C ~ 85°C | - |
|
RA17131123SWITCH ROCKER SPST 11A 125V |
8,740 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 11A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA11431100SWITCH ROCKER SPST-NO 10A 125V |
15,087 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|

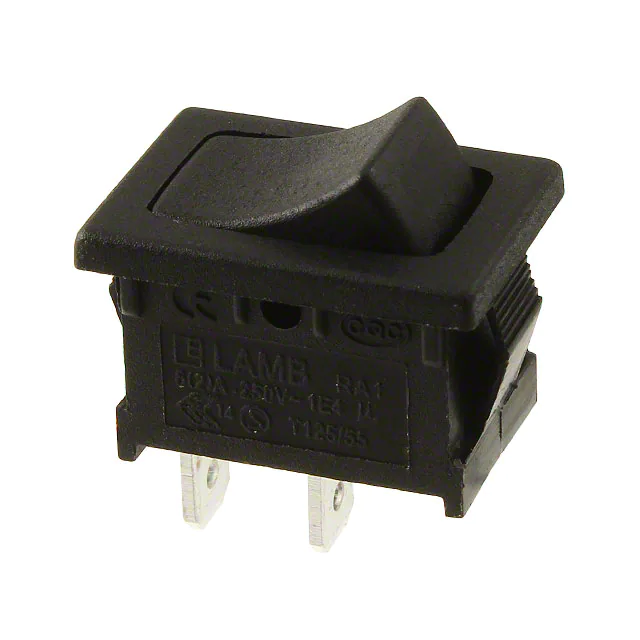

RA11131100SWITCH ROCKER SPST 10A 125V |
10,654 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA83231100SWITCH ROCKER DPST 10A 125V |
5,085 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
GRS-4013A-1300SWITCH ROCKER SPDT 13A 125V |
4,248 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

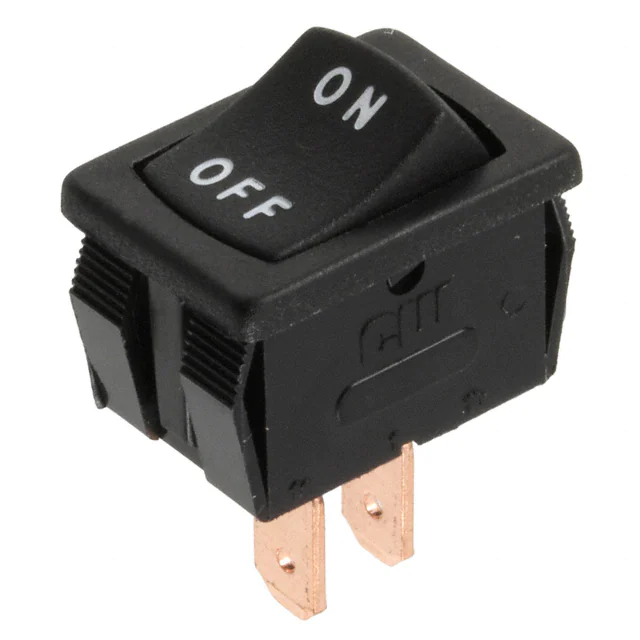

GRS-4011-0036SWITCH ROCKER SPST 13A 125V |
4,879 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

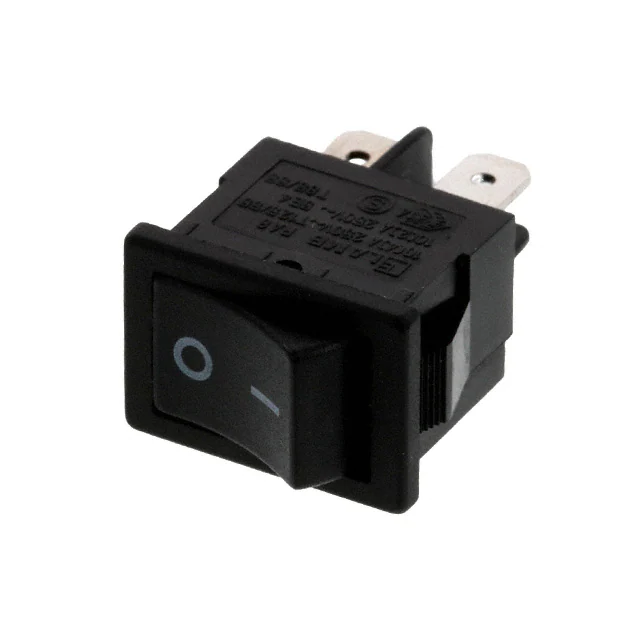

RA811C1121SWITCH ROCKER SPST 16A 125V |
2,007 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RB141C1100SWITCH ROCKER SPST 15A 125V |
12,077 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
RRG31131100SWITCH ROCKER SPST 10A 125V |
4,877 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|

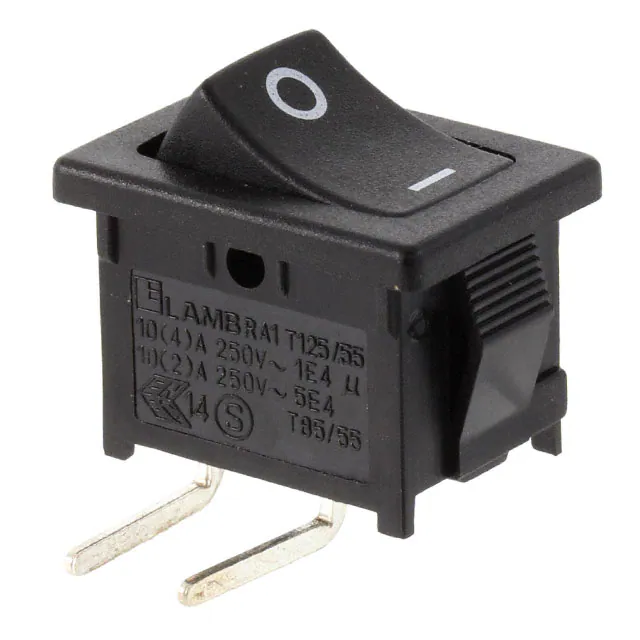

RA1H1C112RSWITCH ROCKER SPST 16A 125V |
18,865 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RR11122FWCSWITCH ROCKER SPST 15A 125V |
17,082 |
|
Datasheet |
RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | ON OFF, Vertical | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
RA812C2921SWITCH ROCKER DPST 16A 125V |
2,072 |
|
Datasheet |
RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1121SWITCH ROCKER SPST 16A 125V |
2,928 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA131C1121SWITCH ROCKER SPST 16A 125V |
2,310 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
